Overview

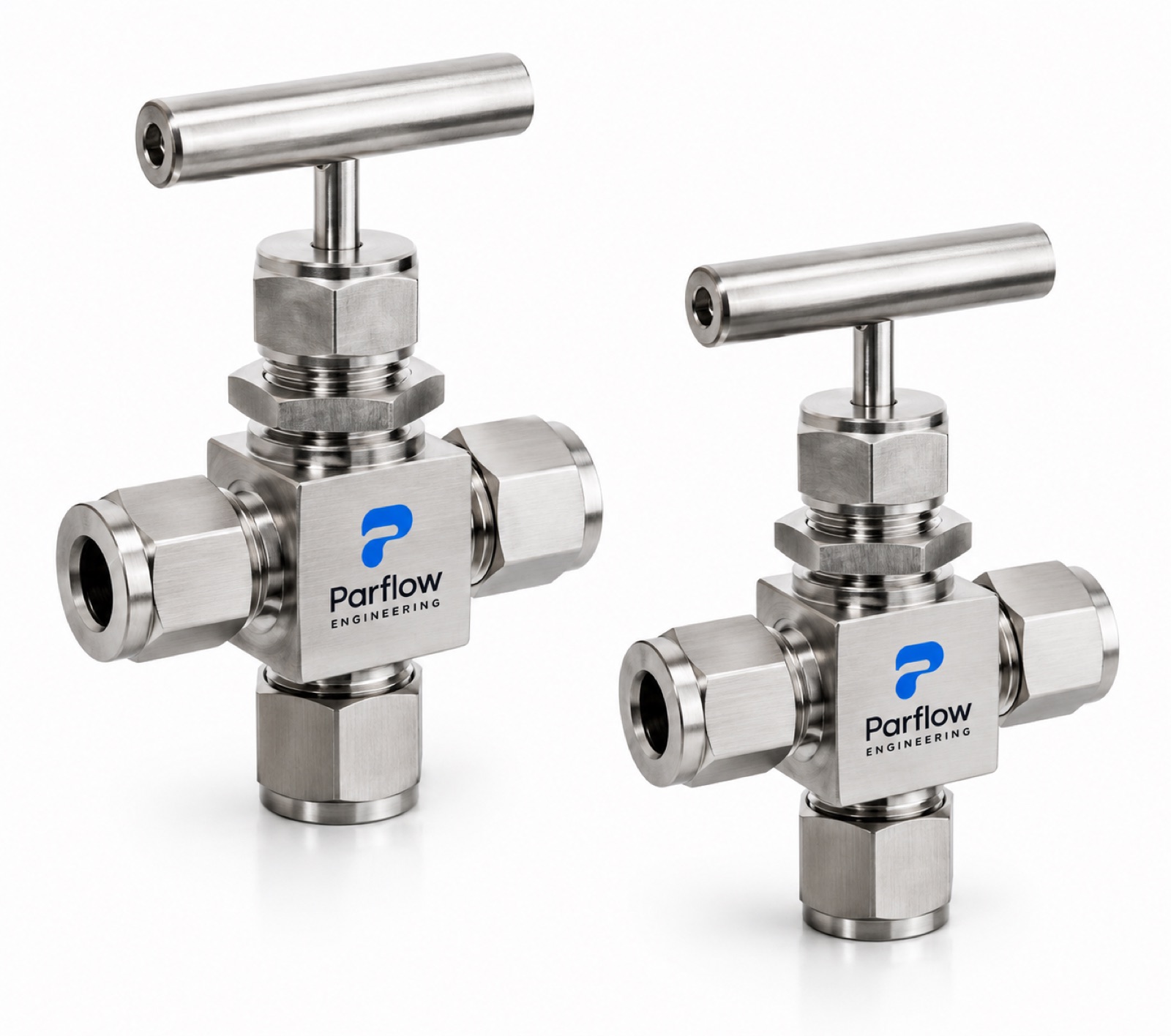

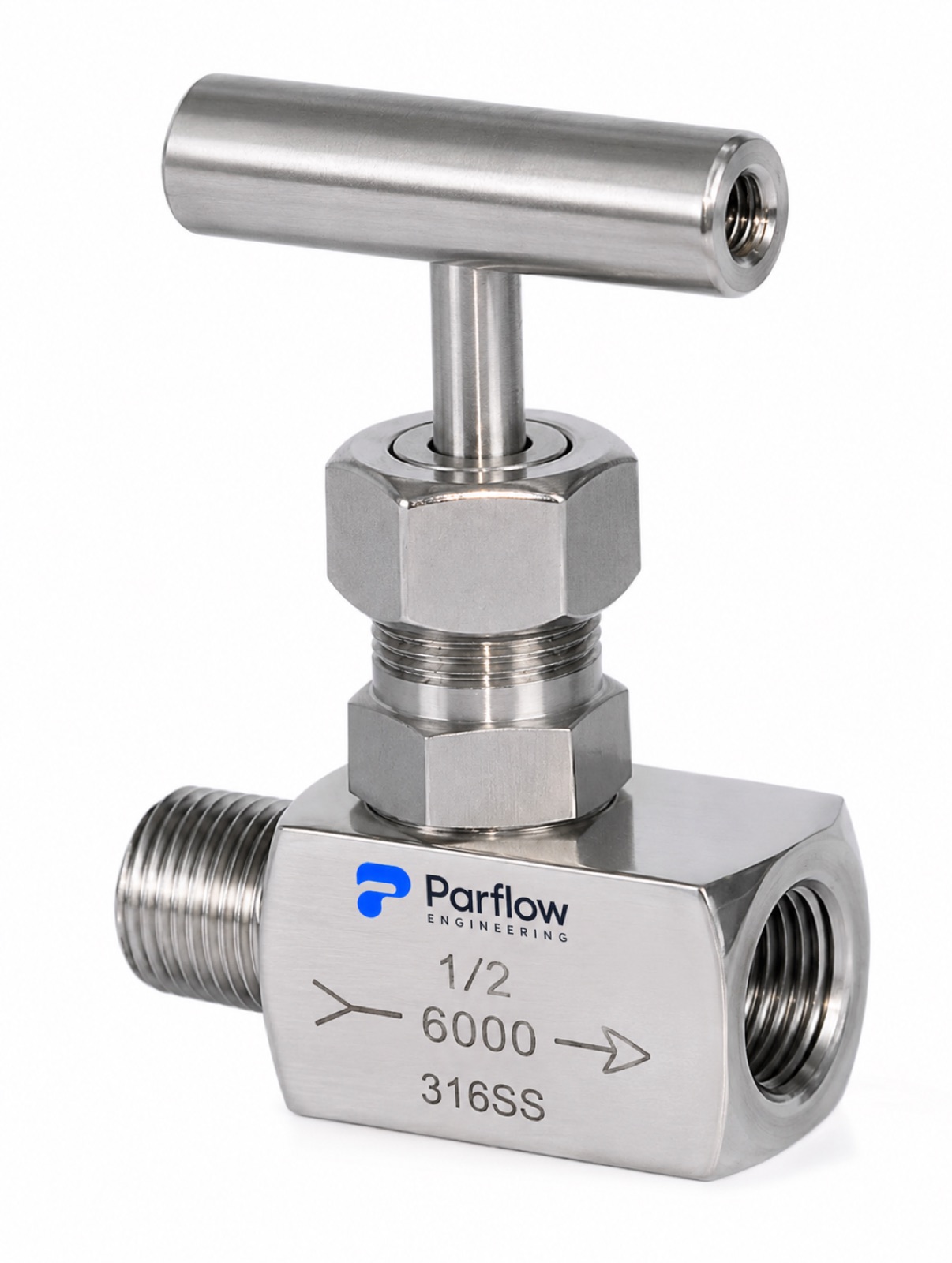

Parflow Needle Valves are engineered to deliver accurate flow control, dependable shut-off, and long-term operational reliability across a wide range of instrumentation and process applications. Designed for systems where precise regulation of liquids or gases is essential, these valves combine precision-machined internal components with robust construction to provide exceptional control over process media while maintaining leak-tight sealing under demanding operating conditions.
Unlike conventional isolation valves that are intended primarily for fully open or fully closed service, needle valves are specifically designed for controlled throttling. Their finely tapered stem allows operators to regulate flow with a high degree of precision, making them indispensable in applications where gradual adjustment, pressure equalization, or controlled isolation is required.
From process instrumentation and pressure measurement systems to sampling panels, hydraulic circuits, calibration equipment, and analytical installations, Parflow Needle Valves provide engineers with the precision and reliability required to maintain safe and efficient plant operation.
Working principle
Rotating the handwheel advances or retracts the threaded stem; the tapered needle tip progressively opens or restricts the passage to the seat. Multiple turns between fully open and closed give exceptional resolution over flow rate.
The gradual stem movement minimises turbulence and pressure surges, protecting sensitive downstream instrumentation, and when fully seated the needle forms a positive metal-to-metal isolation seal.
At a glance
The question on most instrument hook-ups is needle or ball. The pressure ceiling separates them first: a standard needle valve holds 10,000 psi where the ball, check and manifold valves in the same line stop at 6,000 psi.
Past pressure, the two do different jobs, the stem decides it.
| Needle valve | Ball valve | |
|---|---|---|
| Stem action | Multi-turn rising stem, non-rotating needle | Quarter-turn |
| What it is for | Fine metering and positive shut-off | Isolation |
| Sizes | 1/8" to 1" | 1/8" to 2" |
Three seats are available, Metal-to-Metal, PTFE and PEEK, and the valve's temperature range follows the one you pick, not the body. Specify the seat against your process temperature and media before you specify anything else; the spec table states no single figure because there isn't one.
Key features
- Fine tapered needle for smooth throttling
- Multi-turn threaded stem for precise adjustment
- Reliable shut-off on gas and liquid service
- Stable under pressure fluctuation and thermal cycling
- Low operating torque, smooth manual control
- Compact for instrumentation panels and skids
Technical advantages
The primary advantage of a needle valve lies in its ability to provide controlled, repeatable regulation of process flow without sacrificing sealing performance. The fine threaded stem allows operators to make gradual adjustments, making it possible to achieve precise control over pressure equalization, sampling rates, instrument isolation, and calibration procedures. This level of control is difficult to achieve with conventional quarter-turn valves.
The tapered needle design also reduces sudden changes in flow, minimizing turbulence and pressure shocks that can affect sensitive instrumentation. Parflow Needle Valves are particularly valuable in systems where measurement accuracy depends on stable process conditions. Their ability to combine precise throttling with dependable isolation helps improve overall system reliability while reducing unnecessary stress on downstream instrumentation.
The compact construction simplifies installation in instrumentation panels and process skids, while precision manufacturing contributes to smooth operation, extended service life, and reduced maintenance requirements.
Applications
- Pressure gauge & transmitter isolation
- DP measurement systems
- Instrument impulse lines
- Sampling systems & analyzers
- Calibration equipment & test benches
- Chemical injection systems
- Gas distribution panels
- OEM instrumentation assemblies
Configurations
- Straight and angle flow patterns
- multiple end connections
- integration into manifolds
- sampling systems
- calibration panels
- process interface assemblies
Industries served
- Oil & Gas
- Petrochemical
- Chemical Processing
- Refining
- Power Generation
- Pharmaceutical
- LNG & Industrial Gas
- Hydrogen Energy
- Semiconductor
- Marine & Offshore
Why choose Parflow
Flow regulation is one of the most critical functions within any instrumentation system. Whether protecting a pressure transmitter, balancing process conditions, or controlling sample flow, the performance of the valve directly influences measurement accuracy and system reliability. Parflow Needle Valves are engineered to deliver the precise control demanded by modern industrial processes.
By combining precision-machined internal components, smooth multi-turn operation, and dependable sealing performance, they enable engineers and plant operators to regulate process media with confidence. Suitable for both new installations and plant upgrades, they offer a reliable solution for applications where accuracy, safety, and long-term performance are essential. With their robust construction, precise throttling capability, and application-focused design, Parflow Needle Valves are an integral component of high-integrity instrumentation systems across today's process industries.
FAQ
What is a needle valve used for?
Controlled throttling: regulating flow to gauges, transmitters, sampling and calibration systems where gradual adjustment, pressure equalization, or controlled isolation is required, plus positive shut-off when fully closed.
Needle valve vs ball valve, which one?
A ball valve is for fast on/off isolation with low pressure drop; a needle valve is for fine, multi-turn flow regulation. Use a needle valve where gradual control protects sensitive instrumentation; use a ball valve for quick positive shut-off.
Why multi-turn operation?
The threaded stem allows many turns between open and closed, so each turn changes flow only slightly, precise, repeatable adjustments without flow shocks or pressure surges.
