Fittings · Tube Fittings
Single Ferrule

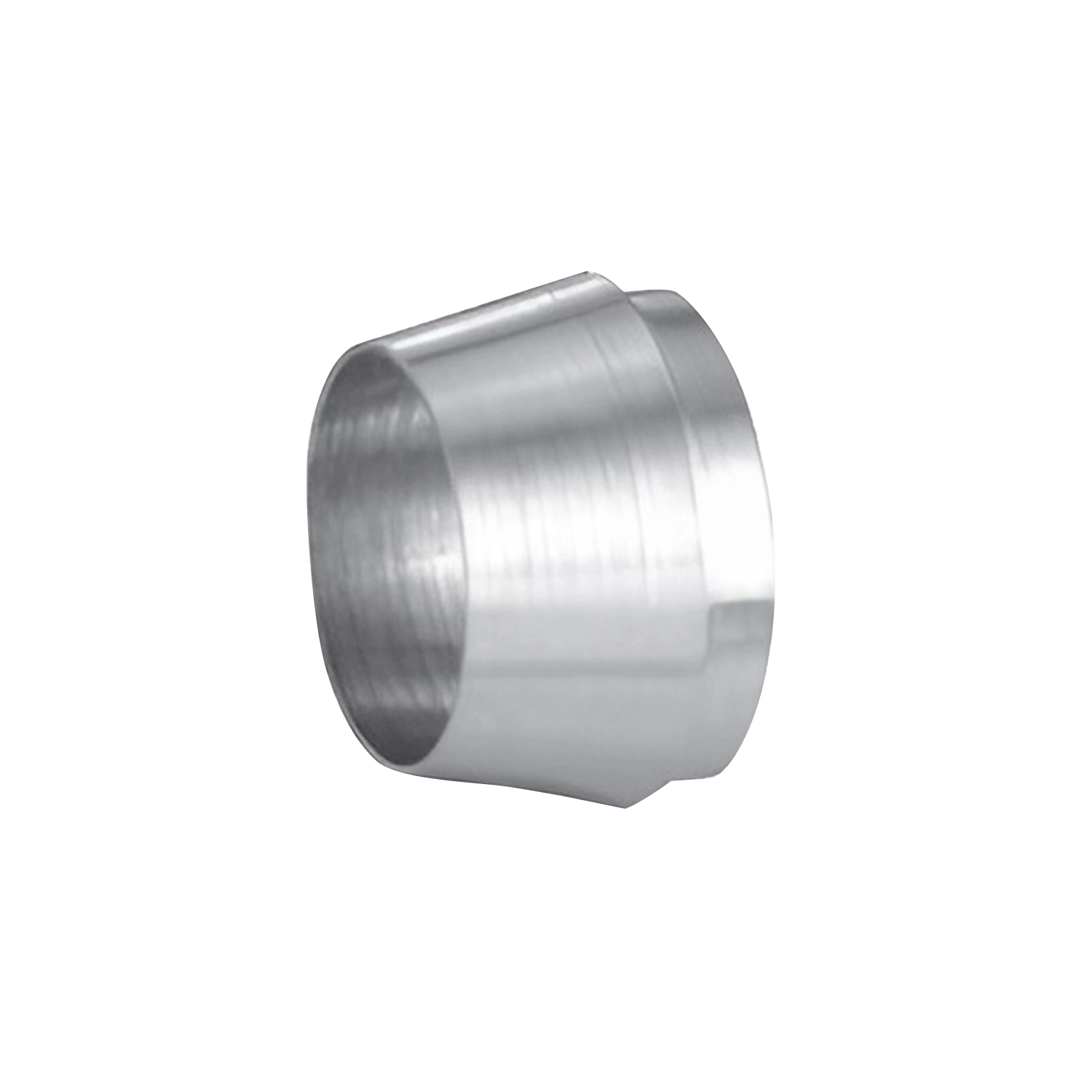

The single ferrule of a single-ferrule compression fitting, where one component both seals against the body and grips the tube. Simpler and more economical than the twin-ferrule arrangement, for general service rather than heavy vibration.
- Product ID
- FIT-TF-13
- Available Part Nos.
- 17
- Category
- Tube Fittings
PRODUCT IDFIT-TF-13
17PART NO. ROWS
01'T'TUBEOD
Tube Fittings
Product overview
Single Ferrule is a tube fitting configuration for instrumentation tubing and threaded connections.
Tube fittings are defined by connection geometry, tube outside diameter, thread, and the dimensions published for each configuration.
Single Ferrule is available in 17 published Part No. configurations across 2 specification tables. Published fields include 'T'TUBEOD.
Technical data
Specifications
17 published Part No. configurations
Inch size tubing-SF
9 Part Nos.
| Part No. | 'T'TUBEOD | Cart status |
|---|---|---|
| SF2 | 1/8" | |
| SF4 | 1/4" | |
| SF5 | 5/16" | |
| SF6 | 3/8" | |
| SF8 | 1/2" | |
| SF10 | 5/8" | |
| SF12 | 3/4" | |
| SF14 | 7/8" | |
| SF16 | 1" |
Metric Size tubing-SFm
8 Part Nos.
| Part No. | 'T'TUBEOD | Cart status |
|---|---|---|
| SFm3 | 3 | |
| SFm6 | 6 | |
| SFm8 | 8 | |
| SFm10 | 10 | |
| SFm12 | 12 | |
| SFm16 | 16 | |
| SFm20 | 20 | |
| SFm25 | 25 |
