Plug

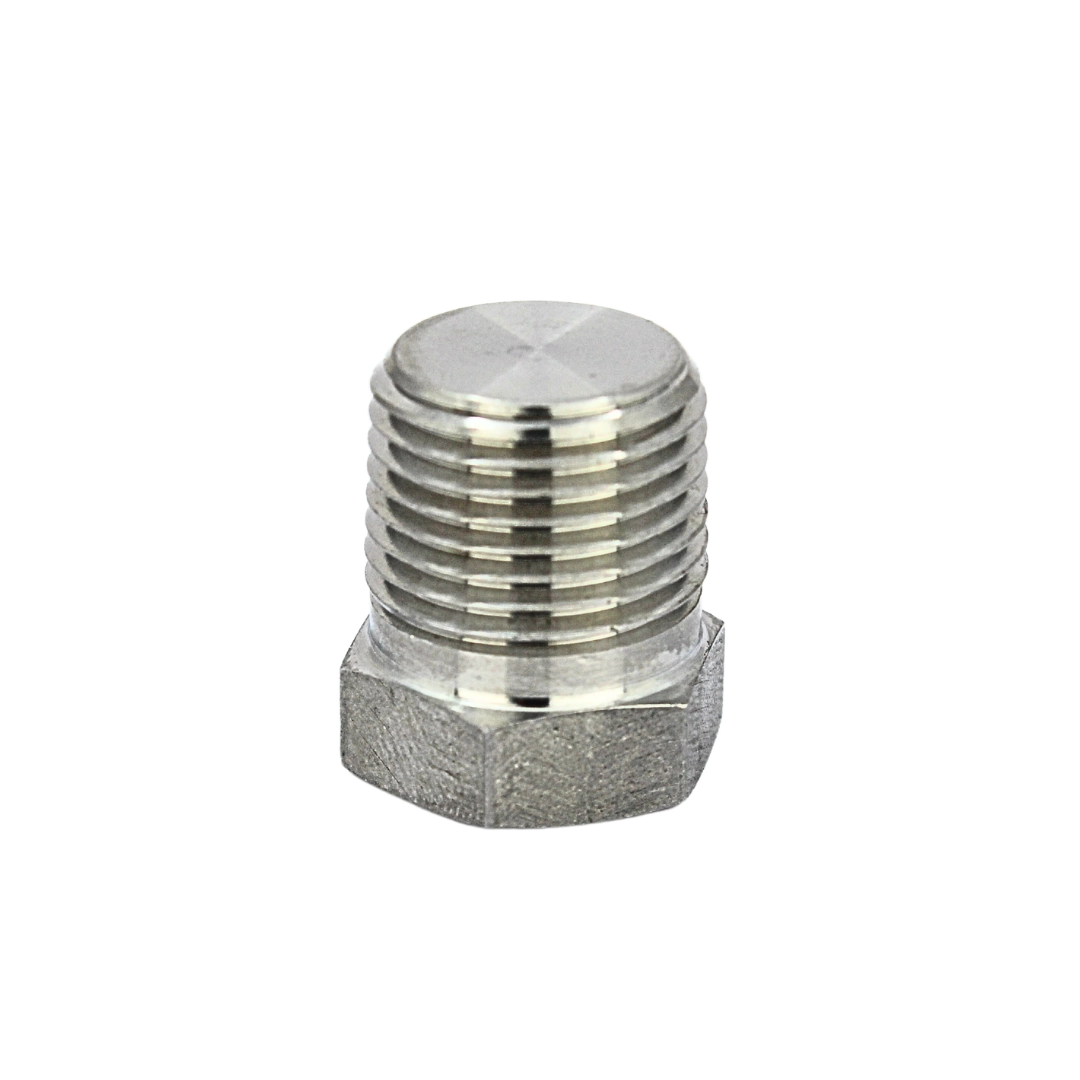

A plug for closing off an unused high-pressure port from the inside of the connection. Used to blank a spare outlet on a manifold or fitting so the assembly can be pressurised with the port unused.
- Product ID
- FIT-HPF-03
- Available Part Nos.
- 10
- Category
- High-Pressure Fittings
PRODUCT IDFIT-HPF-03
10PART NO. ROWS
01PIPE SIZE
02PRESSURE
03T
04A/F-'F'
High-Pressure Fittings
Product overview
Plug is part of Parflow's high-pressure fitting range for coned and threaded tube connections.
High-pressure fittings are defined by their connection form, tube size, thread, and published dimensional compatibility.
Plug is available in 10 published Part No. configurations across 1 specification table. Published fields include PIPE SIZE, PRESSURE, T, A/F-'F'.
- Tube connection from 1/4’ to 1”
- Pressure up to 60,000 Psi
- Coned & Threaded connection provides dependable performance
- Check holes provided on all pressure connection verifies proper connection &leak free joint
Technical data
Specifications
10 published Part No. configurations
FEATURES:
10 Part Nos.
| Part No. | PIPE SIZE | PRESSURE | T | A/F-'F' | L | Cart status |
|---|---|---|---|---|---|---|
| P4-MP | 1/4" | UP TO 20K | 1/4" MP | 3/8" | 1" | |
| P6-MP | 3/8" | UP TO 20K | 3/8" MP | 15/32" | 1.1/4" | |
| P9-MP | 9/16" | UP TO 20K | 9/16" MP | 23/32" | 1.9/16" | |
| P12-MP | 3/4" | UP TO 20K | 3/4" MP | 15/16" | 1.3/4" | |
| P16-MP | 1" | UP TO 20K | 1" MP | 1.1/4" | 2.3/8" | |
| HIGH PRESSURE | ||||||
| P4-HP | 1/4" | 30K TO 60K | 1/4" HP | 3/8" | 1.1/8" | |
| P6-HP | 3/8" | 30K TO 60K | 3/8" HP | 1/2" | 1.5/16" | |
| P9-HP | 9/16" | 30K TO 60K | 9/16" HP | 13/16" | 1.9/16" | |
| P9-HP-40K | 9/16" | 40K | 9/16" HP | 13/16" | 1.23/32" | |
| P16-HP | 1" | 30K | 1" HP | 1.1/4" | 2.3/8" | |
