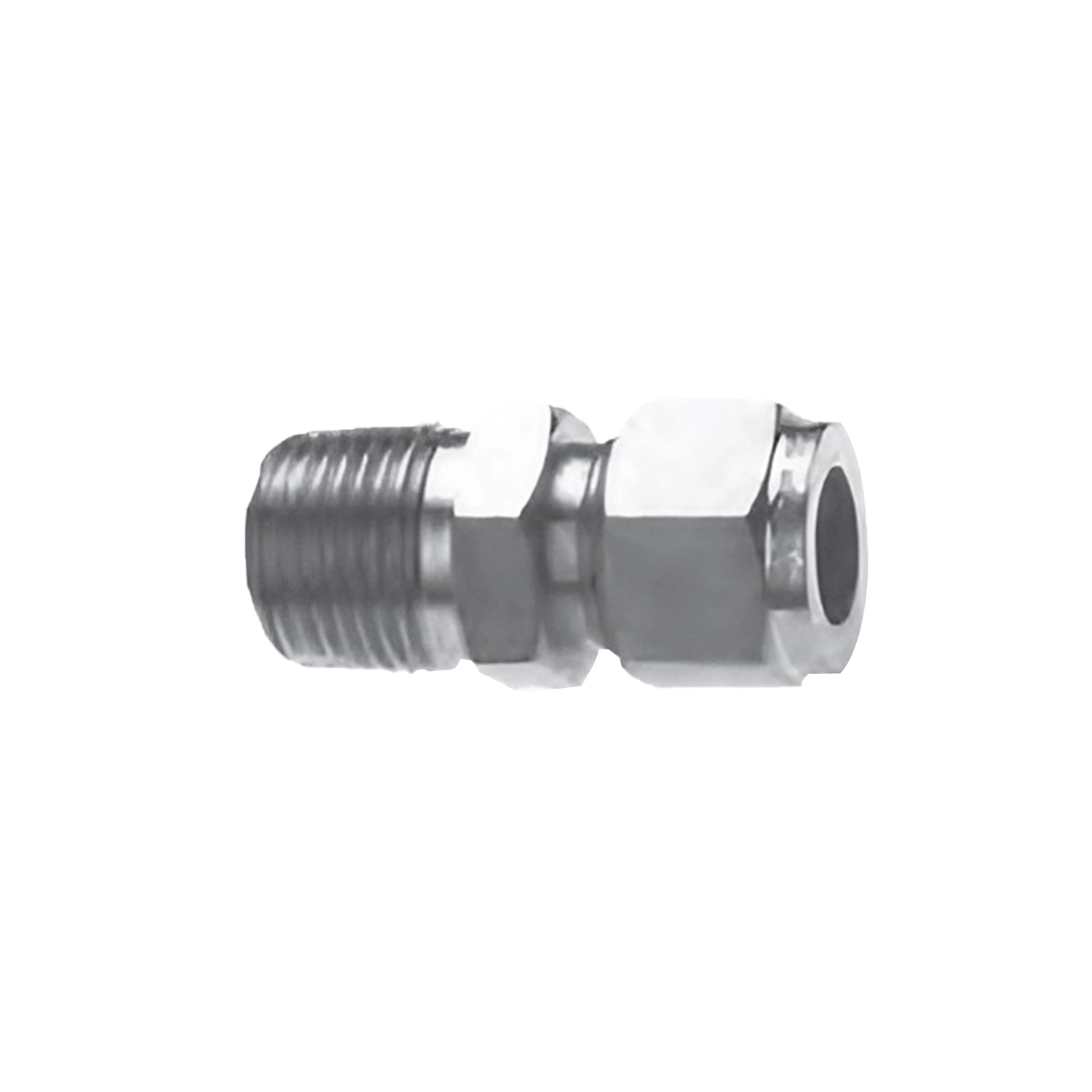

Male Connector
A male connector joining a tube run to a male threaded port. Compression on the tube side, thread on the port side, which is the most common way an instrument tube run terminates at equipment.
- Product ID
- FIT-TF-02
- Available Part Nos.
- 47
- Category
- Tube Fittings
PRODUCT IDFIT-TF-02
47PART NO. ROWS
01'T' TUBE OD
02N.P.T 'P'
03A
04B
Tube Fittings
Product overview
Male Connector is a tube fitting configuration for instrumentation tubing and threaded connections.
Tube fittings are defined by connection geometry, tube outside diameter, thread, and the dimensions published for each configuration.
Male Connector is available in 47 published Part No. configurations across 2 specification tables. Published fields include 'T' TUBE OD, N.P.T 'P', A, B.
Technical data
Specifications
47 published Part No. configurations
Male Connector Fittings
25 Part Nos.
| Part No. | 'T' TUBE OD | N.P.T 'P' | A | B | C | D | E MIN | F A/F | G A/F | H BODY | Cart status |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MC22 | 1/8" | 1/8" | 1.20 | 0.38 | 0.60 | 0.50 | 0.09 | 1/2" | 7/16" | 0.94 | |
| MC24 | 1/8" | 1/4" | 1.40 | 0.56 | 0.60 | 0.50 | 0.09 | 9/16" | 7/16" | 1.14 | |
| MC32 | 3/16" | 1/8" | 1.23 | 0.38 | 0.63 | 0.54 | 0.12 | 1/2" | 1/2" | 0.97 | |
| MC34 | 3/16" | 1/4" | 1.43 | 0.56 | 0.63 | 0.54 | 0.12 | 9/16" | 1/2" | 1.17 | |
| MC42 | 1/4" | 1/8" | 1.29 | 0.38 | 0.70 | 0.60 | 0.19 | 1/2" | 9/16" | 1.00 | |
| MC44 | 1/4" | 1/4" | 1.49 | 0.56 | 0.70 | 0.60 | 0.19 | 9/16" | 9/16" | 1.20 | |
| MC46 | 1/4" | 3/8" | 1.51 | 0.56 | 0.70 | 0.60 | 0.19 | 11/16" | 9/16" | 1.22 | |
| MC48 | 1/4" | 1/2" | 1.76 | 0.75 | 0.70 | 0.60 | 0.19 | 7/8" | 9/16" | 1.47 | |
| MC54 | 5/16" | 1/4" | 1.52 | 0.56 | 0.73 | 0.64 | 0.25 | 9/16" | 5/8" | 1.23 | |
| MC62 | 3/8" | 1/8" | 1.39 | 0.38 | 0.76 | 0.66 | 0.19 | 5/8" | 11/16" | 1.10 | |
| MC64 | 3/8" | 1/4" | 1.57 | 0.56 | 0.76 | 0.66 | 0.28 | 5/8" | 11/16" | 1.28 | |
| MC66 | 3/8" | 3/8" | 1.57 | 0.56 | 0.76 | 0.66 | 0.28 | 11/16" | 11/16" | 1.28 | |
| MC68 | 3/8" | 1/2" | 1.82 | 0.75 | 0.76 | 0.66 | 0.28 | 7/8" | 11/16" | 1.53 | |
| MC84 | 1/2" | 1/4" | 1.71 | 0.56 | 0.86 | 0.90 | 0.28 | 13/16" | 7/8" | 1.31 | |
| MC86 | 1/2" | 3/8" | 1.71 | 0.56 | 0.86 | 0.90 | 0.38 | 13/16" | 7/8" | 1.31 | |
| MC88 | 1/2" | 1/2" | 1.93 | 0.75 | 0.86 | 0.90 | 0.41 | 7/8" | 7/8" | 1.53 | |
| MC812 | 1/2" | 3/4" | 1.99 | 0.75 | 0.86 | 0.90 | 0.41 | 1-1/16" | 7/8" | 1.59 | |
| MC106 | 5/8" | 3/8" | 1.74 | 0.56 | 0.86 | 0.96 | 0.38 | 13/16" | 1" | 1.34 | |
| MC108 | 5/8" | 1/2" | 1.93 | 0.75 | 0.86 | 0.96 | 0.47 | 13/16" | 1" | 1.53 | |
| MC128 | 3/4" | 1/2" | 1.99 | 0.75 | 0.86 | 0.96 | 0.47 | 1-1/16" | 1-1/8" | 1.59 | |
| MC1212 | 3/4" | 3/4" | 1.99 | 0.75 | 0.86 | 0.96 | 0.62 | 1-1/16" | 1-1/8" | 1.59 | |
| MC1216 | 3/4" | 1" | 2.25 | 0.94 | 0.86 | 0.96 | 0.62 | 1-3/8" | 1-1/8" | 1.85 | |
| MC1416 | 7/8" | 3/4" | 1.99 | 0.75 | 0.86 | 1.02 | 0.62 | 1-1/4" | 1-1/4" | 1.59 | |
| MC1612 | 1" | 3/4" | 2.26 | 0.75 | 1.04 | 1.23 | 0.62 | 1-3/8" | 1-1/2" | 1.78 | |
| MC1616 | 1" | 1" | 2.45 | 0.94 | 1.04 | 1.23 | 0.88 | 1-3/8" | 1-1/2" | 1.97 |
Male Connector Fittings
22 Part Nos.
| Part No. | 'T' TUBE OD | N.P.T 'P' | A | B | C | D | E MIN | F A/F | G A/F | H BODY | Cart status |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MCm32 | 3 | 1/8" | 30.5 | 9.7 | 15.3 | 12.9 | 2.4 | 12.7 | 12.7 | 23.9 | |
| MCm34 | 3 | 1/4" | 35.6 | 14.2 | 15.3 | 12.9 | 2.4 | 14.0 | 12.7 | 29.0 | |
| MCm62 | 6 | 1/8" | 32.8 | 9.7 | 17.7 | 15.3 | 4.8 | 14.0 | 14.0 | 25.4 | |
| MCm64 | 6 | 1/4" | 37.9 | 14.2 | 17.7 | 15.3 | 4.8 | 14.0 | 14.0 | 30.5 | |
| MCm66 | 6 | 3/8" | 38.4 | 14.2 | 17.7 | 15.3 | 4.8 | 17.0 | 14.0 | 31.0 | |
| MCm68 | 6 | 1/2" | 44.7 | 19.0 | 17.7 | 15.3 | 4.8 | 22.0 | 14.0 | 37.3 | |
| MCm84 | 8 | 1/4" | 38.7 | 14.2 | 18.6 | 16.2 | 6.3 | 14.0 | 16.0 | 31.4 | |
| MCm86 | 8 | 3/8" | 39.2 | 14.2 | 18.6 | 16.2 | 6.3 | 17.0 | 16.0 | 31.8 | |
| MCm88 | 8 | 1/2" | 45.6 | 19.0 | 18.6 | 16.2 | 6.3 | 22.0 | 16.0 | 38.1 | |
| MCm104 | 10 | 1/4" | 40.9 | 14.2 | 19.5 | 17.2 | 7.1 | 19.0 | 19.0 | 33.3 | |
| MCm106 | 10 | 3/8" | 40.9 | 14.2 | 19.5 | 17.2 | 7.9 | 19.0 | 19.0 | 33.3 | |
| MCm108 | 10 | 1/2" | 46.5 | 19.0 | 19.5 | 17.2 | 7.9 | 22.0 | 19.0 | 38.9 | |
| MCm124 | 12 | 1/4" | 43.4 | 14.2 | 22.0 | 22.8 | 7.1 | 20.5 | 22.0 | 33.3 | |
| MCm126 | 12 | 3/8" | 43.4 | 14.2 | 22.0 | 22.8 | 9.5 | 20.5 | 22.0 | 33.3 | |
| MCm128 | 12 | 1/2" | 49.0 | 19.0 | 22.0 | 22.8 | 9.5 | 22.0 | 22.0 | 38.9 | |
| MCm166 | 16 | 3/8" | 44.1 | 14.2 | 22.0 | 24.4 | 9.5 | 24.0 | 25.4 | 34.1 | |
| MCm168 | 16 | 1/2" | 49.0 | 19.0 | 22.0 | 24.4 | 11.9 | 24.0 | 25.4 | 39.0 | |
| MCm1612 | 16 | 3/4" | 50.5 | 19.0 | 22.0 | 24.4 | 12.7 | 27.0 | 25.4 | 40.4 | |
| MCm2012 | 20 | 1/2" | 52.3 | 19.0 | 22.0 | 26.0 | 11.9 | 32.0 | 32.0 | 42.2 | |
| MCm2016 | 20 | 3/4" | 52.3 | 23.9 | 22.0 | 26.0 | 15.9 | 32.0 | 32.0 | 42.2 | |
| MCm2512 | 25 | 3/4" | 57.5 | 19.0 | 26.5 | 31.3 | 15.9 | 35.0 | 38.1 | 45.2 | |
| MCm2516 | 25 | 1" | 62.3 | 23.9 | 26.5 | 31.3 | 21.8 | 35.0 | 38.1 | 50.0 |
