Female Elbow

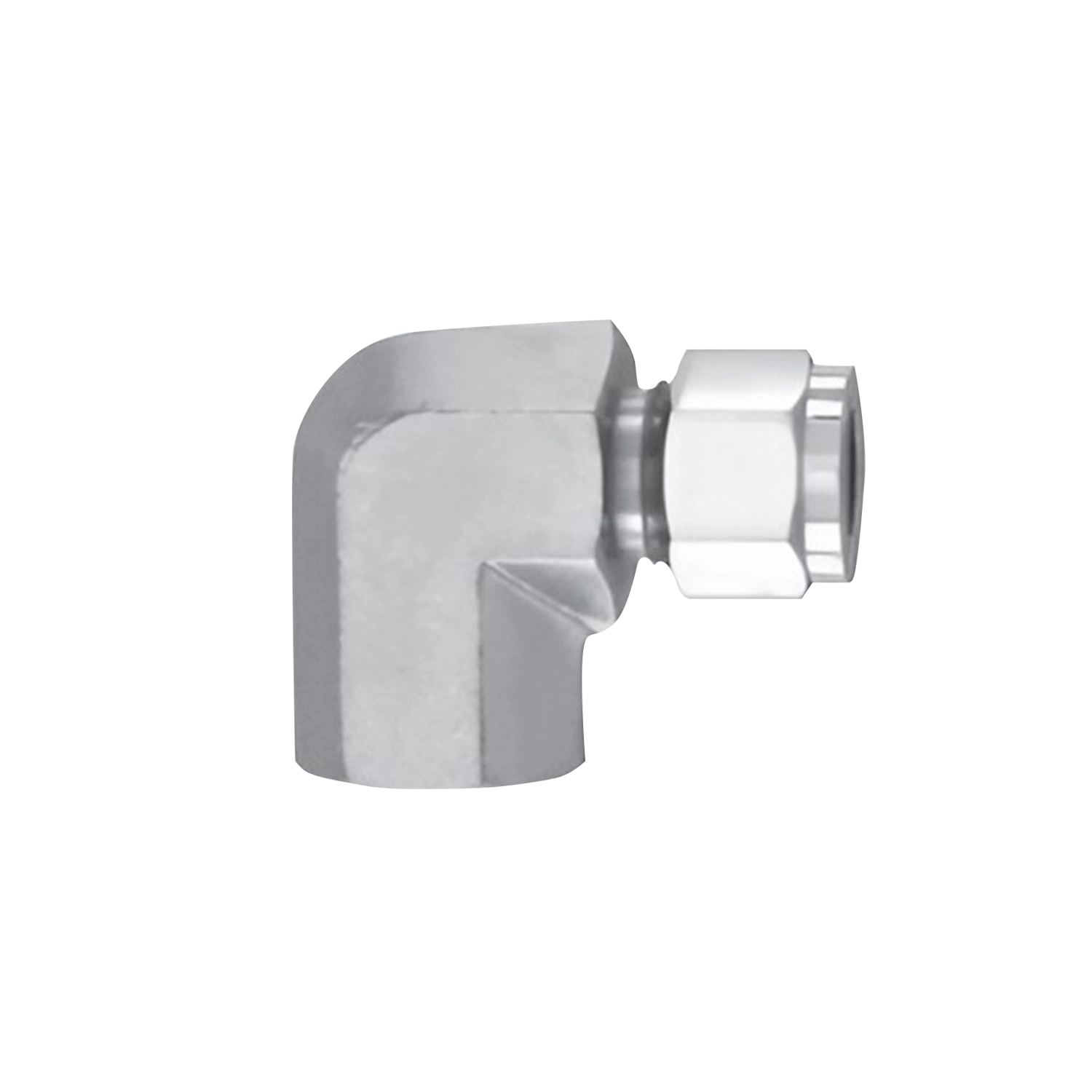

An elbow turning a tube run through 90 degrees into a female thread. The counterpart to the male elbow, chosen by the gender of the equipment port.
- Product ID
- FIT-TF-09
- Available Part Nos.
- 28
- Category
- Tube Fittings
PRODUCT IDFIT-TF-09
28PART NO. ROWS
01TUBEOD
02NPTFEMALE'T''P'
03A
04B
Tube Fittings
Product overview
Female Elbow is a tube fitting configuration for instrumentation tubing and threaded connections.
Tube fittings are defined by connection geometry, tube outside diameter, thread, and the dimensions published for each configuration.
Female Elbow is available in 28 published Part No. configurations across 2 specification tables. Published fields include TUBEOD, NPTFEMALE'T''P', A, B.
Technical data
Specifications
28 published Part No. configurations
Imperial tubing - EF
16 Part Nos.
| Part No. | TUBEOD | NPTFEMALE'T''P' | A | B | C | D | EMIN | FA/F | GA/F | Hy | HxBODY | Cart status | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EF22 | 1/8" | 1/8" | 0.97 | 0.39 | 0.60 | 0.50 | 0.09 | 9/16" | 7/16" | 0.75 | 0.71 | No value | |
| EF24 | 1/8" | 1/4" | 1.08 | 0.59 | 0.60 | 0.50 | 0.09 | 3/4" | 7/16" | 0.88 | 0.82 | No value | |
| EF42 | 1/4" | 1/8" | 1.06 | 0.39 | 0.70 | 0.60 | 0.19 | 9/16" | 9/16" | 0.75 | 0.77 | No value | |
| EF44 | 1/4" | 1/4" | 1.17 | 0.59 | 0.70 | 0.60 | 0.19 | 3/4" | 9/16" | 0.88 | 0.88 | No value | |
| EF46 | 1/4" | 3/8" | 1.25 | 0.59 | 0.70 | 0.60 | 0.19 | 7/8" | 9/16" | 0.88 | 0.96 | No value | |
| EF48 | 1/4" | 1/2" | 1.36 | 0.78 | 0.70 | 0.60 | 0.19 | 1-1/16" | 9/16" | 1.12 | 1.07 | No value | |
| EF54 | 5/16" | 1/4" | 1.20 | 0.59 | 0.73 | 0.76 | 0.64 | 0.25 | 3/4" | 5/8" | 0.88 | 0.91 | |
| EF64 | 3/8" | 1/4" | 1.23 | 0.59 | 0.76 | 0.66 | 0.28 | 3/4" | 11/16" | 0.88 | 0.94 | No value | |
| EF66 | 3/8" | 3/8" | 1.31 | 0.59 | 0.76 | 0.66 | 0.28 | 7/8" | 11/16" | 0.88 | 1.02 | No value | |
| EF68 | 3/8" | 1/2" | 1.42 | 0.78 | 0.76 | 0.66 | 0.28 | 1-1/16" | 11/16" | 1.12 | 1.13 | No value | |
| EF84 | 1/2" | 1/4" | 1.42 | 0.59 | 0.86 | 0.90 | 0.41 | 13/16" | 7/8" | 0.88 | 1.02 | No value | |
| EF86 | 1/2" | 3/8" | 1.42 | 0.59 | 0.86 | 0.90 | 0.41 | 7/8" | 7/8" | 0.88 | 1.02 | No value | |
| EF88 | 1/2" | 1/2" | 1.53 | 0.78 | 0.86 | 0.90 | 0.41 | 1-1/16" | 7/8" | 1.12 | 1.13 | No value | |
| EF108 | 5/8" | 1/2" | 1.57 | 0.78 | 0.86 | 0.96 | 0.50 | 1-1/16" | 1" | 1.12 | 1.17 | No value | |
| EF128 | 3/4" | 1/2" | 1.57 | 0.78 | 0.86 | 0.96 | 0.62 | 1-1/16" | 1-1/8" | 1.12 | 1.17 | No value | |
| EF1212 | 3/4" | 3/4" | 1.76 | 0.81 | 0.86 | 0.96 | 0.62 | 1-1/4" | 1-1/8" | 1.25 | 1.36 | No value |
Metric tubing- EFm
12 Part Nos.
| Part No. | TUBEOD | NPTFEMALE'T''P' | A | B | C | D | EMIN | FA/F | GA/F | Hy | HxBODY | Cart status | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EFm32 | 3 | 1/8" | 24.6 | 9.7 | No value | 15.3 | 12.9 | 2.4 | 14.0 | 11.0 | 19.0 | 18.0 | |
| EFm34 | 3 | 1/4" | 27.0 | 14.2 | No value | 15.3 | 12.9 | 2.4 | 19.0 | 11.0 | 22.4 | 20.8 | |
| EFm62 | 6 | 1/8" | 27.0 | No value | 9.7 | 17.7 | 15.3 | 4.8 | 14.0 | 14.0 | 19.0 | 19.6 | |
| EFm64 | 6 | 1/4" | 29.8 | 14.2 | No value | 17.7 | 15.3 | 4.8 | 19.0 | 14.0 | 22.4 | 22.4 | |
| EFm66 | 6 | 3/8" | 31.7 | 14.2 | No value | 17.7 | 15.3 | 4.8 | 22.0 | 14.0 | 22.4 | 24.4 | |
| EFm68 | 6 | 1/2" | 34.6 | 19.0 | No value | 17.7 | 15.3 | 4.8 | 27.0 | 14.0 | 28.4 | 27.2 | |
| EFm84 | 8 | 1/4" | 30.6 | 14.2 | No value | 18.6 | 16.2 | 6.3 | 19.0 | 16.0 | 22.4 | 23.1 | |
| EFm104 | 10 | 1/4" | 33.5 | 14.2 | No value | 19.5 | 17.2 | 7.1 | 19.0 | 19.0 | 22.4 | 25.9 | |
| EFm124 | 12 | 1/4" | 36.0 | 14.2 | No value | 22.0 | 22.8 | 9.5 | 20.5 | 22.0 | 22.4 | 25.9 | |
| EFm126 | 12 | 3/8" | 36.0 | 14.2 | No value | 22.0 | 22.8 | 9.5 | 22.0 | 22.0 | 22.4 | 25.9 | |
| EFm128 | 12 | 1/2" | 38.8 | 19.0 | No value | 22.0 | 22.8 | 9.5 | 27.0 | 22.0 | 28.4 | 28.7 | |
| EFm1612 | 16 | 1/2" | 39.5 | 19.0 | No value | 22.0 | 24.4 | 12.7 | 27.0 | 25.0 | 28.4 | 29.7 |
