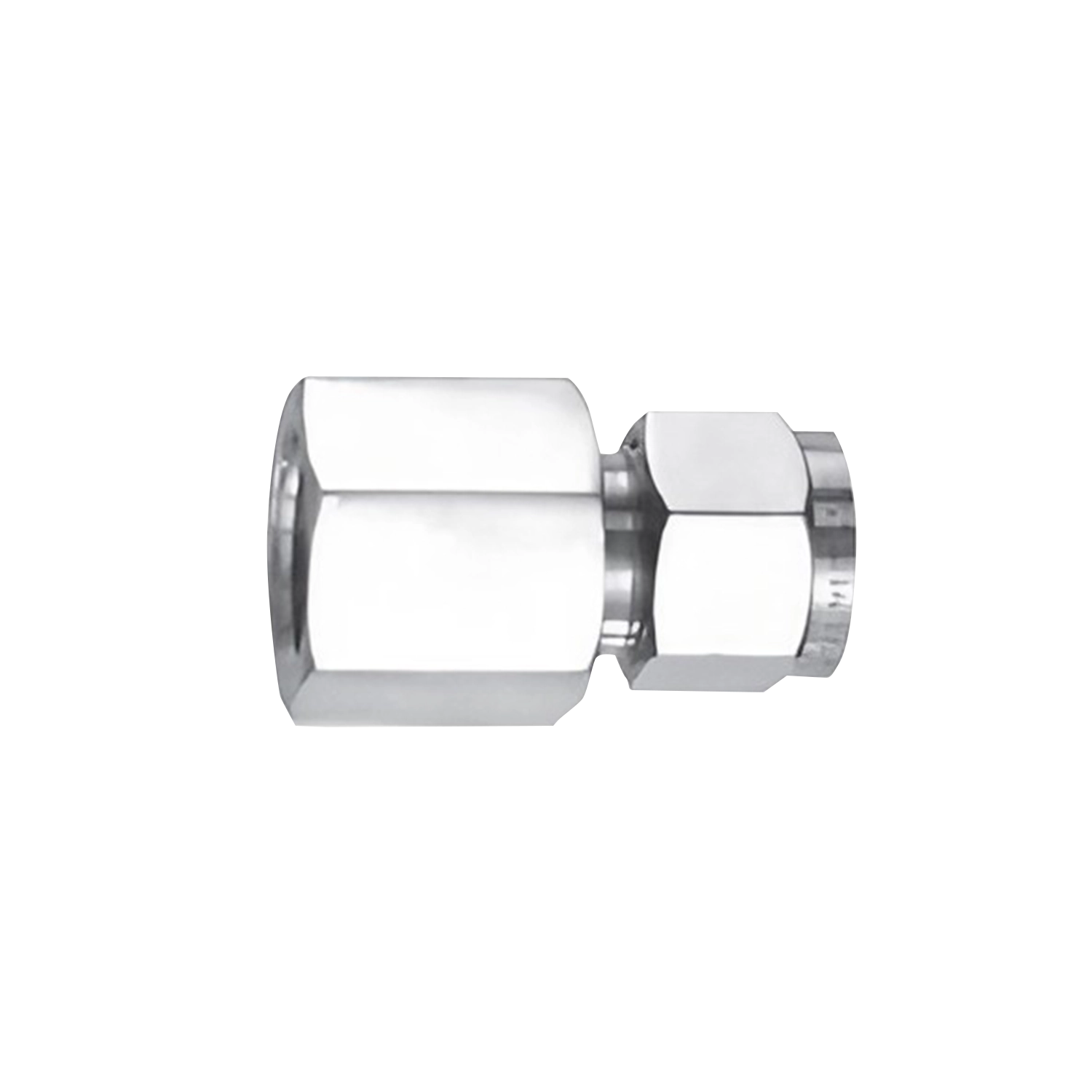

Female Connector
A female connector joining a tube run to a female threaded port. Chosen over the male connector purely by which gender the equipment port presents.
- Product ID
- FIT-TF-03
- Available Part Nos.
- 42
- Category
- Tube Fittings
PRODUCT IDFIT-TF-03
42PART NO. ROWS
01TUBE OD 'T'
02NPT. 'P'
03A
04B
Tube Fittings
Product overview
Female Connector is a tube fitting configuration for instrumentation tubing and threaded connections.
Tube fittings are defined by connection geometry, tube outside diameter, thread, and the dimensions published for each configuration.
Female Connector is available in 42 published Part No. configurations across 2 specification tables. Published fields include TUBE OD 'T', NPT. 'P', A, B.
Technical data
Specifications
42 published Part No. configurations
Female Pipe Fittings
23 Part Nos.
| Part No. | TUBE OD 'T' | NPT. 'P' | A | B | C | D | E MIN | F A/F | G A/F | H BODY | Cart status |
|---|---|---|---|---|---|---|---|---|---|---|---|
| FC22 | 1/8" | 1/8" | 1.13 | 0.39 | 0.60 | 0.50 | 0.09 | 9/16" | 7/16" | 0.87 | |
| FC24 | 1/8" | 1/4" | 1.32 | 0.59 | 0.60 | 0.50 | 0.09 | 3/4" | 7/16" | 1.06 | |
| FC32 | 3/16" | 1/8" | 1.17 | 0.39 | 0.63 | 0.54 | 0.12 | 9/16" | 1/2" | 0.91 | |
| FC42 | 1/4" | 1/8" | 1.23 | 0.39 | 0.70 | 0.60 | 0.19 | 9/16" | 9/16" | 0.94 | |
| FC44 | 1/4" | 1/4" | 1.41 | 0.59 | 0.70 | 0.60 | 0.19 | 3/4" | 9/16" | 1.12 | |
| FC46 | 1/4" | 3/8" | 1.48 | 0.59 | 0.70 | 0.60 | 0.19 | 7/8" | 9/16" | 1.19 | |
| FC48 | 1/4" | 1/2" | 1.67 | 0.78 | 0.70 | 0.60 | 0.19 | 1-1/16" | 9/16" | 1.38 | |
| FC52 | 5/16" | 1/8" | 1.26 | 0.39 | 0.73 | 0.64 | 0.25 | 9/16" | 5/8" | 0.97 | |
| FC54 | 5/16" | 1/4" | 1.45 | 0.59 | 0.73 | 0.64 | 0.25 | 3/4" | 5/8" | 1.16 | |
| FC64 | 3/8" | 1/4" | 1.48 | 0.59 | 0.76 | 0.66 | 0.28 | 3/4" | 11/16" | 1.19 | |
| FC66 | 3/8" | 3/8" | 1.54 | 0.59 | 0.76 | 0.66 | 0.28 | 7/8" | 11/16" | 1.25 | |
| FC68 | 3/8" | 1/2" | 1.73 | 0.78 | 0.76 | 0.66 | 0.28 | 1-1/16" | 11/16" | 1.44 | |
| FC84 | 1/2" | 1/4" | 1.59 | 0.59 | 0.86 | 0.90 | 0.41 | 13/16" | 7/8" | 1.19 | |
| FC86 | 1/2" | 3/8" | 1.65 | 0.59 | 0.86 | 0.90 | 0.41 | 7/8" | 7/8" | 1.25 | |
| FC88 | 1/2" | 1/2" | 1.84 | 0.78 | 0.86 | 0.90 | 0.41 | 1-1/16" | 7/8" | 1.44 | |
| FC106 | 5/8" | 3/8" | 1.65 | 0.59 | 0.86 | 0.96 | 0.50 | 15/16" | 1" | 1.25 | |
| FC108 | 5/8" | 1/2" | 1.84 | 0.78 | 0.86 | 0.96 | 0.50 | 1-1/16" | 1" | 1.44 | |
| FC1012 | 5/8" | 3/4" | 1.90 | 0.81 | 0.86 | 0.96 | 0.50 | 1-1/4" | 1" | 1.50 | |
| FC128 | 3/4" | 1/2" | 1.84 | 0.78 | 0.86 | 0.96 | 0.62 | 1-1/16" | 1-1/8" | 1.44 | |
| FC1212 | 3/4" | 3/4" | 1.90 | 0.81 | 0.86 | 0.96 | 0.62 | 1-1/4" | 1-1/8" | 1.50 | |
| FC1412 | 7/8" | 3/4" | 1.96 | 0.81 | 0.86 | 1.02 | 0.72 | 1-1/4" | 1-1/4" | 1.56 | |
| FC1612 | 1" | 3/4" | 2.10 | 0.81 | 1.04 | 1.23 | 0.88 | 1-3/8" | 1-1/2" | 1.62 | |
| FC1616 | 1" | 1" | 2.45 | 1.00 | 1.04 | 1.23 | 0.88 | 1-5/8" | 1-1/2" | 1.97 |
Female Pipe Fittings
19 Part Nos.
| Part No. | TUBE OD 'T' | NPT. 'P' | A | B | C | D | E MIN | F A/F | G A/F | H BODY | Cart status |
|---|---|---|---|---|---|---|---|---|---|---|---|
| FCm32 | 3 | 1/8" | 28.7 | 9.7 | 15.3 | 12.9 | 2.4 | 14.0 | 12.7 | 22.1 | |
| FCm34 | 3 | 1/4" | 34.0 | 14.2 | 15.3 | 12.9 | 2.4 | 19.0 | 12.7 | 27.0 | |
| FCm62 | 6 | 1/8" | 31.3 | 9.7 | 17.7 | 15.3 | 4.8 | 14.0 | 14.0 | 23.9 | |
| FCm64 | 6 | 1/4" | 35.8 | 14.2 | 17.7 | 15.3 | 4.8 | 19.0 | 14.0 | 28.6 | |
| FCm66 | 6 | 3/8" | 37.6 | 14.2 | 17.7 | 15.3 | 4.8 | 22.0 | 14.0 | 30.2 | |
| FCm68 | 6 | 1/2" | 42.5 | 19.0 | 17.7 | 15.3 | 4.8 | 27.0 | 14.0 | 35.1 | |
| FCm84 | 8 | 1/4" | 37.0 | 14.2 | 18.6 | 16.2 | 6.3 | 19.0 | 16.0 | 29.5 | |
| FCm86 | 8 | 3/8" | 38.5 | 14.2 | 18.6 | 16.2 | 6.3 | 22.0 | 16.0 | 31.0 | |
| FCm88 | 8 | 1/2" | 43.3 | 19.0 | 18.6 | 16.2 | 6.3 | 27.0 | 16.0 | 35.8 | |
| FCm104 | 10 | 1/4" | 37.8 | 14.2 | 19.5 | 17.2 | 7.1 | 19.0 | 19.0 | 30.5 | |
| FCm106 | 10 | 3/8" | 39.4 | 14.2 | 19.5 | 17.2 | 7.9 | 22.0 | 19.0 | 31.8 | |
| FCm108 | 10 | 1/2" | 44.2 | 19.0 | 19.5 | 17.2 | 7.9 | 27.0 | 19.0 | 36.6 | |
| FCm124 | 12 | 1/4" | 40.3 | 14.2 | 22.0 | 22.8 | 9.5 | 20.5 | 22.0 | 30.2 | |
| FCm126 | 12 | 3/8" | 41.9 | 14.2 | 22.0 | 22.8 | 9.5 | 22.0 | 22.0 | 31.8 | |
| FCm128 | 12 | 1/2" | 46.7 | 19.0 | 22.0 | 22.8 | 9.5 | 27.0 | 22.0 | 36.6 | |
| FCm168 | 16 | 1/2" | 46.8 | 19.0 | 22.0 | 24.4 | 12.7 | 27.0 | 25.4 | 36.6 | |
| FCm2012 | 20 | 3/4" | 50.0 | 19.0 | 22.0 | 26.0 | 15.9 | 32.0 | 32.0 | 39.6 | |
| FCm2512 | 25 | 3/4" | 53.4 | 19.0 | 26.5 | 31.3 | 15.9 | 36.0 | 38.0 | 41.2 | |
| FCm2516 | 25 | 1" | 62.3 | 23.9 | 26.5 | 31.3 | 21.8 | 41.0 | 38.0 | 50.0 |
