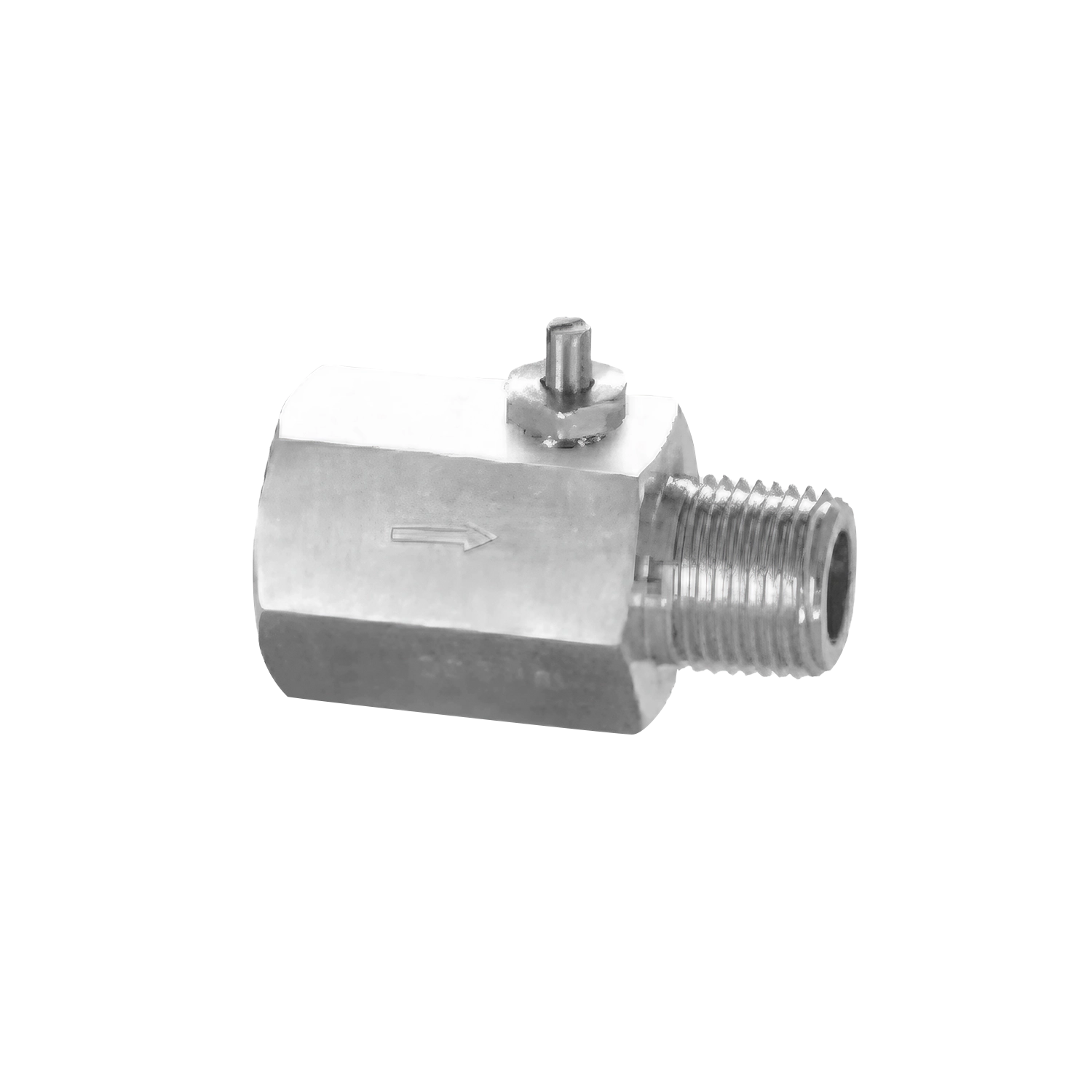

Snubber
A snubber fitted ahead of a gauge or switch to damp pressure pulsation. Pulsating service destroys a gauge movement over time; the snubber restricts the pressure signal so the instrument sees the average rather than every peak.
- Product ID
- ACC-GEN-02
- Selection
- Configured to order
- Category
- Accessories
Product overview
Snubber is an instrumentation accessory for process measurement and connection assemblies.
Instrumentation accessories complete measurement and connection assemblies with purpose-specific installation components.
Snubber is configured against the required size, material, connection, pressure, temperature, and quantity.
Specifications
Configured to order
Configured for your requirements
This product is built to the service conditions rather than picked from a fixed Part No. list. The range specification below applies; send the size, material, connection, pressure and temperature with your enquiry and it is configured against them.
- Product Type
- Instrument Protection Accessories (Syphons & Snubbers)
- Product Variants
- Coil Syphon, Pigtail Syphon, U-Type Syphon, Adjustable Snubber, Fixed Snubber
- Function
- Protects pressure instruments from high process temperatures, pressure surges, pulsation, and hydraulic shock
- Maximum Working Pressure
- Up to 6,000 psi (413 bar); higher-pressure models available depending on design
- Temperature Range
- Suitable for high-temperature steam and process applications; actual range depends on material selection
- Available Sizes
- 1/4", 3/8", 1/2"
- End Connections
- Male × Female NPT, BSPT, BSPP, Socket Weld (application dependent)
- Materials
- SS316, SS316L, Carbon Steel, Brass (selected models)
- Syphon Designs
- Coil, Pigtail, U-Type
- Snubber Design
- Porous Disc, Needle Type, Adjustable Restriction (depending on model)
- Mounting
- In-line between process connection and pressure instrument
- Surface Finish
- Precision Machined & Passivated Stainless Steel
- Testing
- Hydrostatic Pressure & Leak Tested
- Standards
- Manufactured in accordance with applicable ASME/ASTM instrumentation practices
- Compatible Instruments
- Pressure Gauges, Pressure Transmitters, Pressure Switches, Differential Pressure Instruments
- Typical Applications
- Steam Lines, Boilers, Hydraulic Systems, Pumps, Compressors, Process Piping, Instrumentation Panels, Power Plants, Refineries, Chemical Processing, OEM Equipment
