Front Ferrule

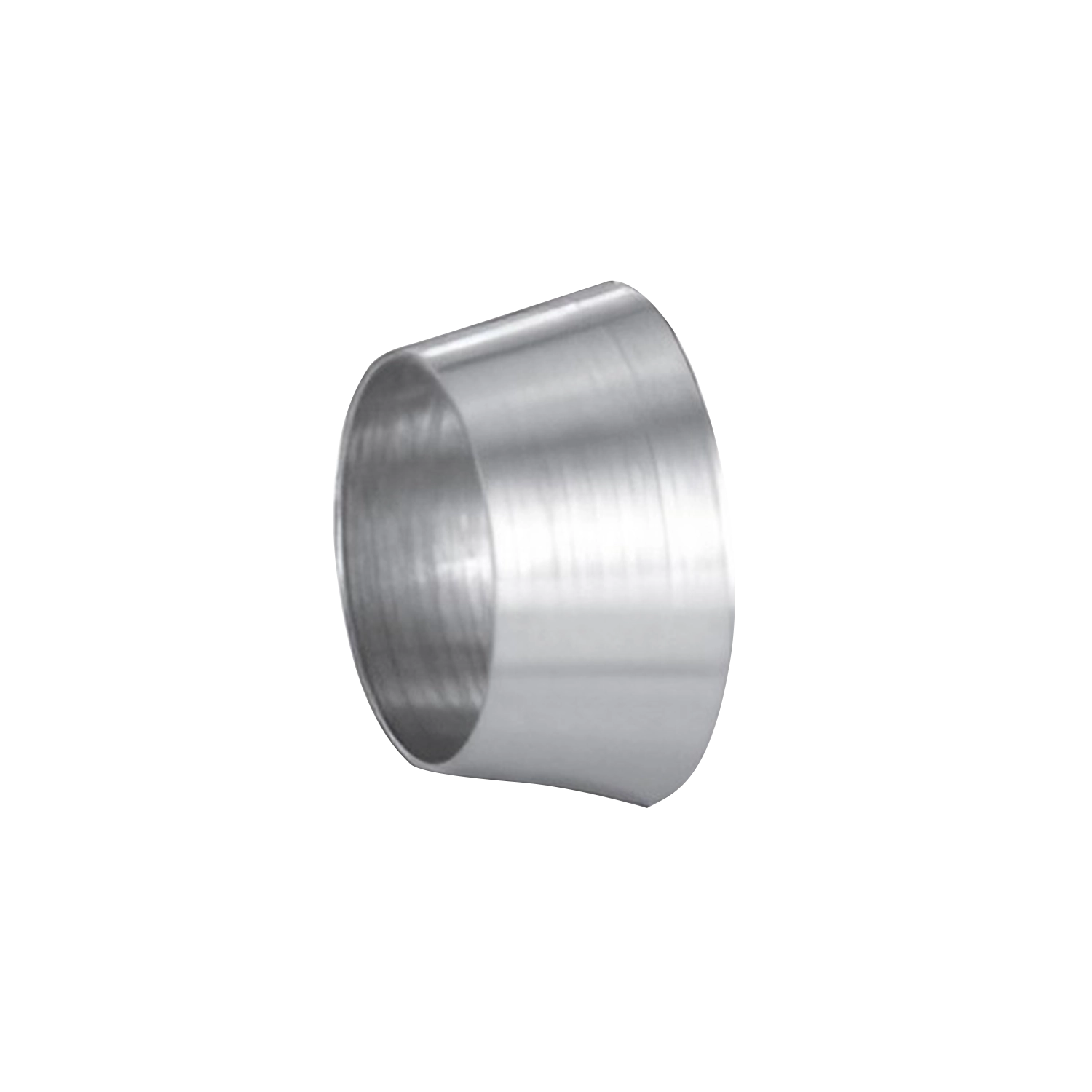

The front ferrule of a twin-ferrule compression fitting. It compresses between the body and the tube to form the primary metal-to-metal seal, while the back ferrule takes the mechanical grip.
- Product ID
- FIT-TF-23
- Available Part Nos.
- 17
- Category
- Tube Fittings
PRODUCT IDFIT-TF-23
17PART NO. ROWS
01'T'TUBEOD
Tube Fittings
Product overview
Front Ferrule is a tube fitting configuration for instrumentation tubing and threaded connections.
Tube fittings are defined by connection geometry, tube outside diameter, thread, and the dimensions published for each configuration.
Front Ferrule is available in 17 published Part No. configurations across 2 specification tables. Published fields include 'T'TUBEOD.
Technical data
Specifications
17 published Part No. configurations
Inch size tubing-FF
9 Part Nos.
| Part No. | 'T'TUBEOD | Cart status |
|---|---|---|
| FF2 | 1/8" | |
| FF4 | 1/4" | |
| FF5 | 5/16" | |
| FF6 | 3/8" | |
| FF8 | 1/2" | |
| FF10 | 5/8" | |
| FF12 | 3/4" | |
| FF14 | 7/8" | |
| FF16 | 1" |
Metric Size tubing-FFm
8 Part Nos.
| Part No. | 'T'TUBEOD | Cart status |
|---|---|---|
| FFm3 | 3 | |
| FFm6 | 6 | |
| FFm8 | 8 | |
| FFm10 | 10 | |
| FFm12 | 12 | |
| FFm16 | 16 | |
| FFm20 | 20 | |
| FFm25 | 25 |
