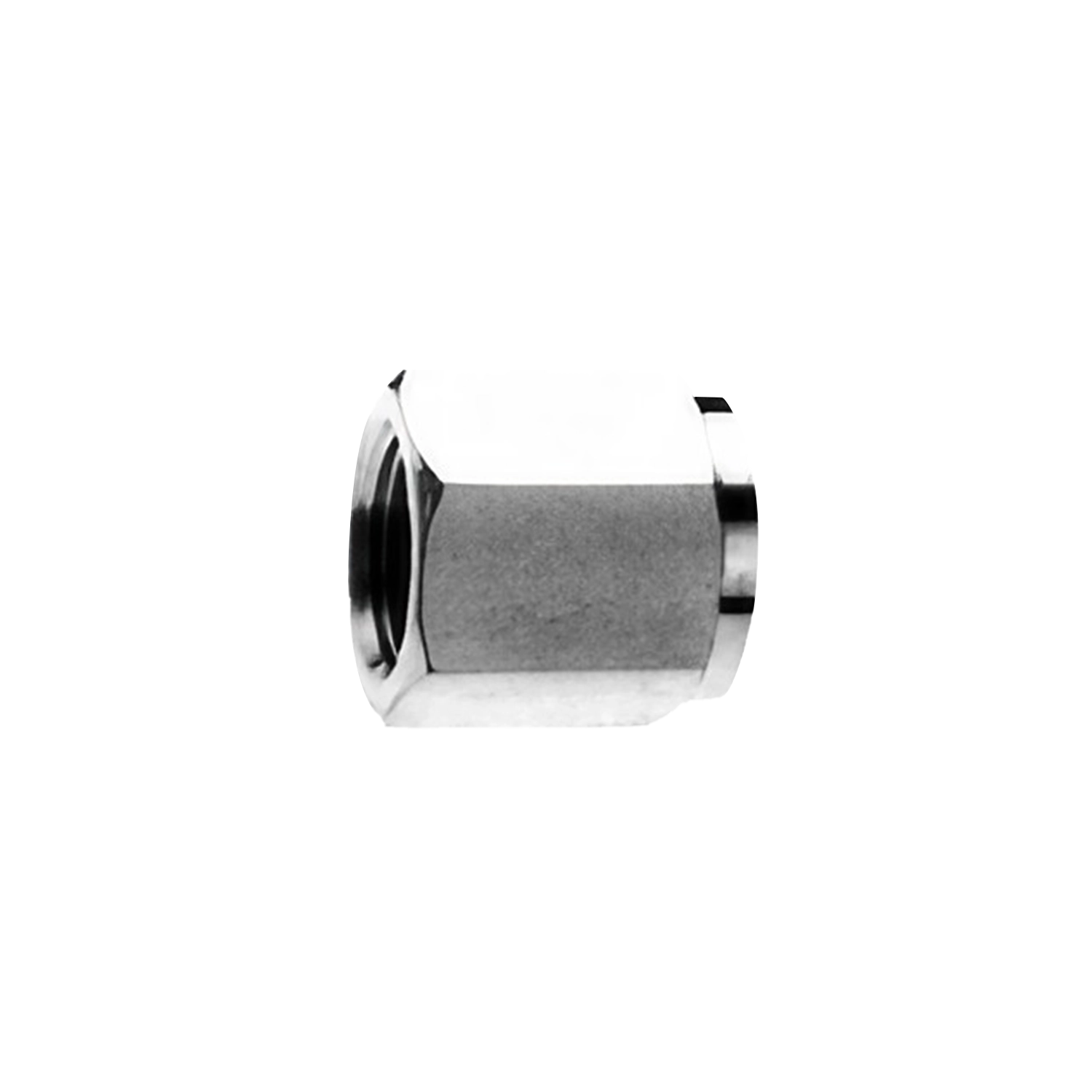

Female Cap
A cap with a female thread, closing a male threaded connection from the outside. Where a plug blanks a female port, a cap covers a male stub.
- Product ID
- FIT-PF-19
- Available Part Nos.
- 6
- Category
- Pipe Fittings
PRODUCT IDFIT-PF-19
6PART NO. ROWS
01SIZE
02F
03TNPT(F)
04L
Pipe Fittings
Product overview
Female Cap is a threaded pipe fitting configuration for instrumentation and process connections.
Pipe fittings provide threaded connection forms for instrumentation and process assemblies.
Female Cap is available in 6 published Part No. configurations across 1 specification table. Published fields include SIZE, F, TNPT(F), L.
Technical data
Specifications
6 published Part No. configurations
CAP Series Data
6 Part Nos.
| Part No. | SIZE | F | TNPT(F) | L | Cart status |
|---|---|---|---|---|---|
| CAP2 | 1/8" | 9/16" | 1/8" | 0.53 | |
| CAP4 | 1/4" | 3/4" | 1/4" | 0.71 | |
| CAP6 | 3/8" | 7/8" | 3/8" | 0.71 | |
| CAP8 | 1/2" | 1-1/16" | 1/2" | 0.94 | |
| CAP12 | 3/4" | 1-1/4" | 3/4" | 0.98 | |
| CAP16 | 1" | 1-5/8" | 1" | 1.22 |
