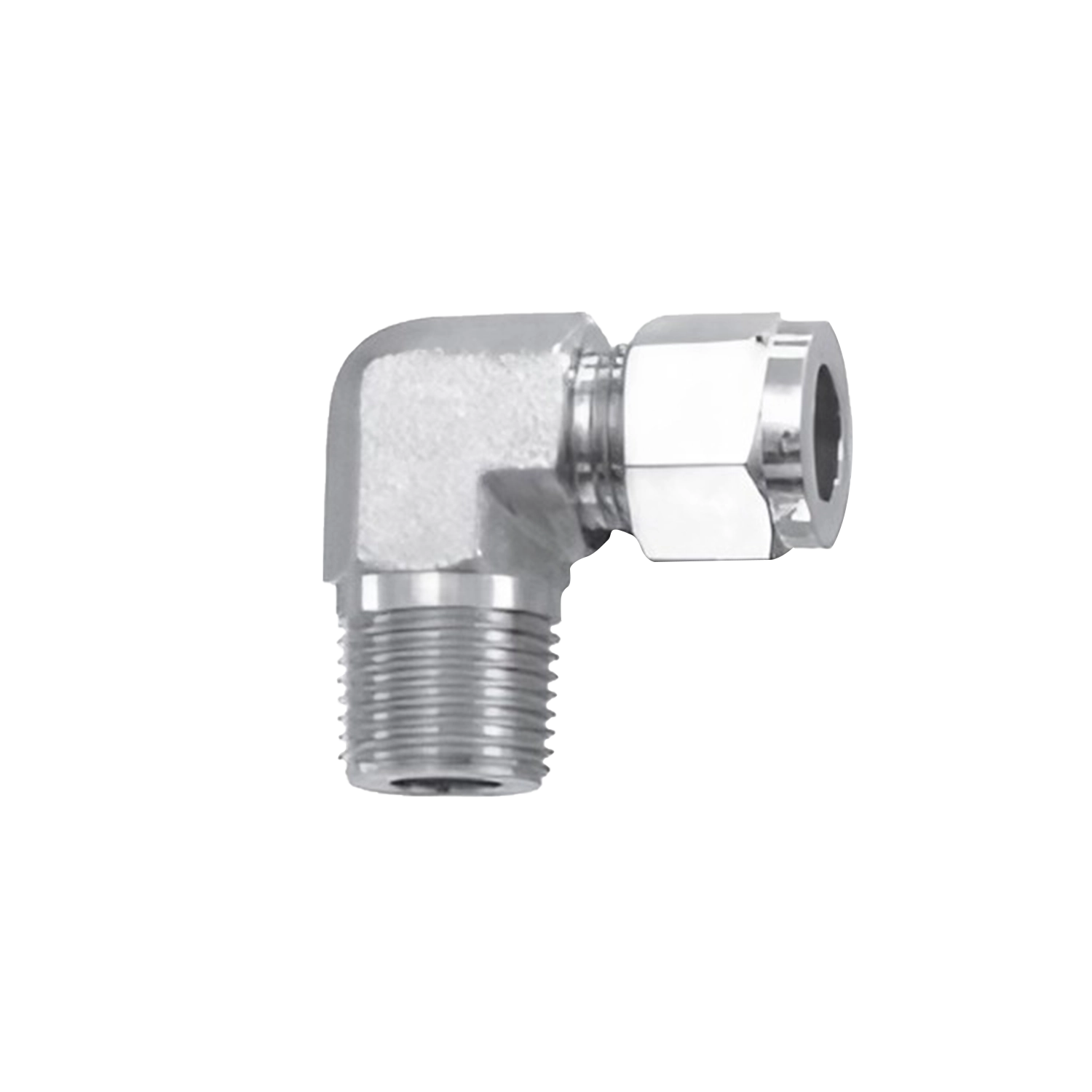

Male Elbow
An elbow turning a tube run through 90 degrees and terminating in a male thread. Combines a direction change and a threaded termination in one fitting, saving a joint over an elbow plus a connector.
- Product ID
- FIT-TF-08
- Available Part Nos.
- 42
- Category
- Tube Fittings
PRODUCT IDFIT-TF-08
42PART NO. ROWS
01TUBEOD.
02NPTP'T
03A
04B
Tube Fittings
Product overview
Male Elbow is a tube fitting configuration for instrumentation tubing and threaded connections.
Tube fittings are defined by connection geometry, tube outside diameter, thread, and the dimensions published for each configuration.
Male Elbow is available in 42 published Part No. configurations across 2 specification tables. Published fields include TUBEOD., NPTP'T, A, B.
Technical data
Specifications
42 published Part No. configurations
Imperial tubing- EM
23 Part Nos.
| Part No. | TUBEOD. | NPTP'T | A | B | C | D | EMIN | FA/F | GA/F | Hx | HBODY | Cart status | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EM22 | 1/8" | 1/8" | 0.97 | 0.38 | 0.60 | 0.50 | 0.09 | 1/2" | 7/16" | 0.74 | 0.71 | No value | |
| EM24 | 1/8" | 1/4" | 0.97 | 0.56 | 0.60 | 0.50 | 0.09 | 9/16" | 7/16" | 0.98 | 0.71 | No value | |
| EM32 | 3/16" | 1/8" | 1.00 | 0.38 | 0.63 | 0.54 | 0.12 | 1/2" | No value | 1/2" | 0.74 | 0.74 | |
| EM42 | 1/4" | 1/8" | 1.13 | 0.38 | 0.70 | 0.60 | 0.19 | 9/16" | 9/16" | 0.85 | 0.84 | No value | |
| EM44 | 1/4" | 1/4" | 1.13 | 0.56 | 0.70 | 0.60 | 0.19 | 9/16" | 9/16" | 0.98 | 0.84 | No value | |
| EM46 | 1/4" | 3/8" | 1.17 | 0.56 | 0.70 | 0.60 | 0.19 | 11/16" | 9/16" | 1.03 | 0.88 | No value | |
| EM48 | 1/4" | 1/2" | 1.29 | 0.75 | 0.70 | 0.60 | 0.19 | 7/8" | 9/16" | 1.30 | 1.00 | No value | |
| EM52 | 5/16" | 1/8" | 1.13 | 0.38 | 0.73 | 0.64 | 0.19 | 9/16" | No value | 5/8" | 0.85 | 0.84 | |
| EM54 | 5/16" | 1/4" | 1.13 | 0.56 | 0.73 | 0.64 | 0.25 | 9/16" | 5/8" | 0.98 | 0.84 | No value | |
| EM64 | 3/8" | 1/4" | 1.20 | 0.56 | 0.76 | 0.66 | 0.28 | 9/16" | 11/16" | 1.00 | 0.91 | No value | |
| EM66 | 3/8" | 3/8" | 1.23 | 0.56 | 0.76 | 0.66 | 0.28 | 11/16" | 11/16" | 1.03 | 0.94 | No value | |
| EM68 | 3/8" | 1/2" | 1.35 | 0.75 | 0.76 | 0.66 | 0.28 | 7/8" | 11/16" | 1.30 | 1.06 | No value | |
| EM84 | 1/2" | 1/4" | 1.42 | 0.56 | 0.86 | 0.90 | 0.28 | 13/16" | 7/8" | 1.11 | 1.02 | No value | |
| EM86 | 1/2" | 3/8" | 1.42 | 0.56 | 0.86 | 0.90 | 0.38 | 13/16" | 7/8" | 1.11 | 1.02 | No value | |
| EM88 | 1/2" | 1/2" | 1.42 | 0.75 | 0.86 | 0.90 | 0.41 | 7/8" | 7/8" | 1.30 | 1.02 | No value | |
| EM106 | 5/8" | 3/8" | 1.46 | 0.75 | 0.86 | 0.96 | 0.38 | 15/16" | 1" | 1.19 | 1.06 | No value | |
| EM108 | 5/8" | 1/2" | 1.46 | 0.75 | 0.86 | 0.96 | 0.47 | 15/16" | 1" | 1.38 | 1.06 | No value | |
| EM1012 | 5/8" | 3/4" | 1.57 | 0.75 | 0.86 | 0.96 | 0.50 | 1-1/8" | 1" | 1.45 | 1.17 | No value | |
| EM128 | 3/4" | 1/2" | 1.57 | 0.75 | 0.86 | 0.96 | 0.47 | 1-1/8" | 1-1/8" | 1.45 | 1.17 | No value | |
| EM1212 | 3/4" | 3/4" | 1.57 | 0.75 | 0.86 | 0.96 | 0.62 | 1-1/8" | 1-1/8" | 1.45 | 1.17 | No value | |
| EM1412 | 7/8" | 3/4" | 1.76 | 0.75 | 0.86 | 1.02 | 0.62 | 1-1/4" | 1-1/4" | 1.64 | 1.36 | No value | |
| EM1612 | 1" | 3/4" | 1.92 | 0.75 | 1.04 | 1.23 | 0.62 | 1-3/8" | 1-1/2" | 1.64 | 1.45 | No value | |
| EM1616 | 1" | 1" | 1.92 | 0.94 | 1.04 | 1.23 | 0.88 | 1-3/8" | 1-1/2" | 1.83 | 1.45 | No value |
Metric Size Tubing-EMm
19 Part Nos.
| Part No. | TUBEOD. | NPTP'T | A | B | C | D | EMIN | FA/F | GA/F | Hx | HBODY | Cart status | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EMm32 | 3 | [1/8"] | 24.6 | 9.7 | No value | 15.3 | 12.9 | 2.4 | 12.7 | 11.0 | 18.8 | 18.0 | |
| EMm34 | 3 | [1/4"] | 24.6 | 14.2 | No value | 15.3 | 12.9 | 7.1 | 12.7 | 11.0 | 25.0 | 18.0 | |
| EMm62 | 6 | [1/8"] | 28.7 | No value | 9.7 | 17.7 | 15.3 | 4.8 | 14.0 | 14.0 | 21.5 | 21.3 | |
| EMm64 | 6 | [1/4"] | 28.7 | 14.2 | No value | 17.7 | 15.3 | 4.8 | 14.0 | 14.0 | 25.0 | 21.3 | |
| EMm66 | 6 | [3/8"] | 29.8 | 14.2 | No value | 17.7 | 15.3 | 4.8 | 17.0 | 14.0 | 26.2 | 22.4 | |
| EMm68 | 6 | [1/2"] | 32.9 | 19.0 | No value | 17.7 | 15.3 | 4.8 | 22.0 | 14.0 | 33.0 | 25.5 | |
| EMm82 | 8 | [1/8"] | 28.8 | 9.7 | No value | 18.6 | 16.2 | 4.8 | 14.0 | 16.0 | 21.5 | 21.3 | |
| EMm84 | 8 | [1/4"] | 28.8 | 14.2 | No value | 18.6 | 16.2 | 6.3 | 14.0 | 16.0 | 25.0 | 21.3 | |
| EMm86 | 8 | [3/8"] | 30.6 | 14.2 | 18.6 | 16.2 | 6.3 | 17.0 | 16.0 | 26.2 | 23.1 | No value | |
| EMm88 | 8 | [1/2"] | 32.6 | 19.0 | No value | 18.6 | 16.2 | 6.3 | 22.0 | 16.0 | 33.0 | 25.1 | |
| EMm104 | 10 | [1/4"] | 31.5 | 14.2 | No value | 19.5 | 17.2 | 7.1 | 17.0 | 19.0 | 26.2 | 23.9 | |
| EMm106 | 10 | [3/8"] | 31.5 | 14.2 | No value | 19.5 | 17.2 | 7.9 | 17.0 | 19.0 | 26.2 | 23.9 | |
| EMm108 | 10 | [1/2"] | 33.5 | 19.0 | No value | 19.5 | 17.2 | 7.9 | 22.0 | 19.0 | 33.0 | 25.9 | |
| EMm126 | 12 | [3/8"] | 36.0 | 14.2 | No value | 22.0 | 22.8 | 9.5 | 20.5 | 22.0 | 28.2 | 25.9 | |
| EMm128 | 12 | [1/2"] | 36.0 | 19.0 | No value | 22.0 | 22.8 | 9.5 | 22.0 | 22.0 | 33.0 | 25.9 | |
| EMm168 | 16 | [1/2"] | 37.1 | 19.0 | No value | 22.0 | 24.4 | 12.7 | 24.0 | 25.0 | 35.1 | 27.0 | |
| EMm2012 | 20 | [3/4"] | 44.6 | 19.0 | No value | 22.0 | 26.0 | 15.9 | 32.0 | 32.0 | 41.7 | 34.5 | |
| EMm2512 | 25 | [3/4"] | 49.1 | 19.0 | No value | 26.5 | 31.3 | 15.9 | 36.0 | 38.1 | 41.7 | 36.8 | |
| EMm2516 | 25 | [1"] | 49.1 | 23.8 | No value | 26.5 | 31.3 | 21.8 | 36.0 | 38.1 | 46.5 | 36.8 |
