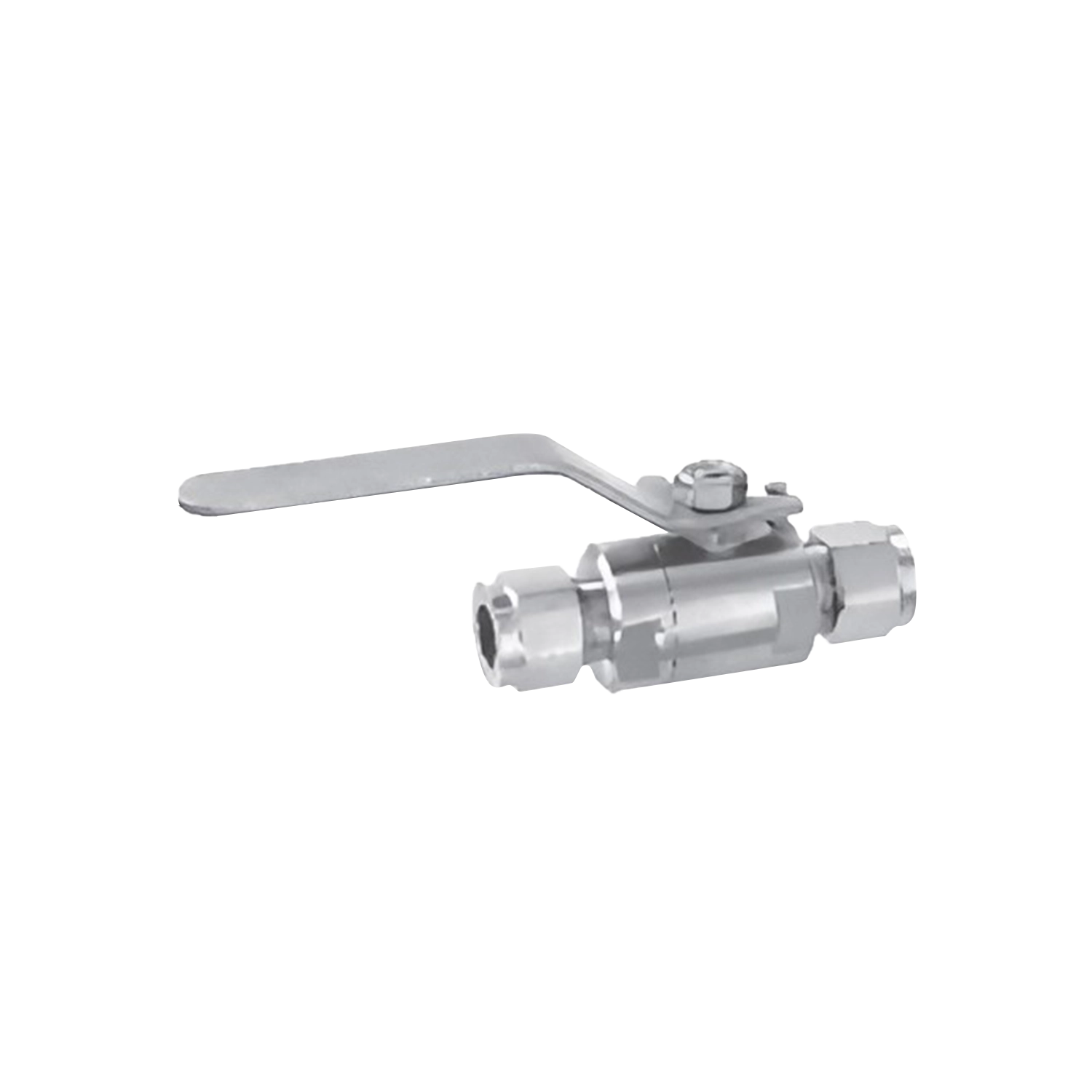

Process Ball Valve – Tube End
The process ball valve in a tube-end configuration, taking compression connections. Suits lines run in tube throughout, where a threaded joint at the valve would add a leak path the rest of the run does not have.
- Product ID
- VAL-BV-05
- Available Part Nos.
- 3
- Category
- Ball Valves
PRODUCT IDVAL-BV-05
3PART NO. ROWS
01SIZE
02T Tube
03D OD
04L
Ball Valves
Product overview
Process Ball Valve – Tube End provides quarter-turn isolation for instrumentation and process lines.
Quarter-turn ball valves provide compact isolation across the published flow arrangements and end connections.
Process Ball Valve – Tube End is available in 3 published Part No. configurations across 1 specification table. Published fields include SIZE, T Tube, D OD, L.
- No throttling or pressure drop across the valve.
- Working pressure up to 1000psi/70bar at 100°F/37°C
- Series of end connections 1/4", 3/8", 1/2" double or single ferrule tube end or male/female NPT, BSP pipe end.
- Material of construction, SS, M.S, Monel, Brass, Aluminum, Titanium, and Hastalloy.
Technical data
Specifications
3 published Part No. configurations
Process Ball Valves Tube End
3 Part Nos.
| Part No. | SIZE | T Tube | D OD | L | Cart status |
|---|---|---|---|---|---|
| PBV-PR-S-4TT | 1/4" | 1/4" | 1.18 | 3.19 | |
| PBV-PR-S-6TT | 3/8" | 3/8" | 1.18 | 3.35 | |
| PBV-PR-S-8TT | 1/2" | 1/2" | 1.26 | 3.54 |
