3 Valve Manifold – Coplanar Type

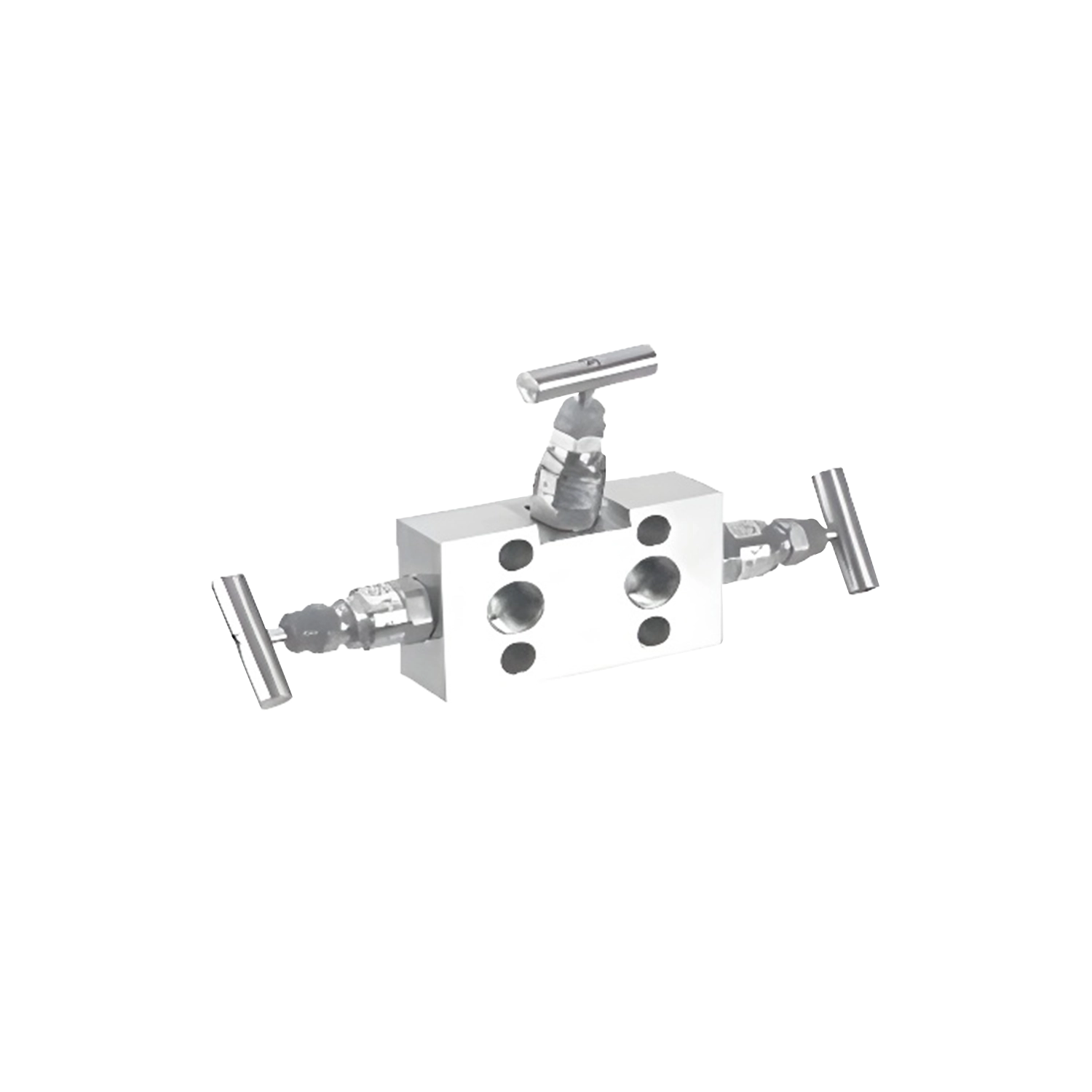

A three-valve manifold in coplanar form, matching the coplanar transmitter flange pattern. It provides the two block valves and the equalising valve a differential-pressure transmitter needs to be isolated, equalised and zeroed without disturbing the process connections.
- Product ID
- VAL-MV-03
- Selection
- Configured to order
- Category
- Manifold Valves
Product overview
3 Valve Manifold – Coplanar Type combines the valve arrangement and connections required for pressure measurement and instrument isolation.
Manifold configurations combine isolate, equalise, vent, or measurement functions in one defined valve arrangement.
3 Valve Manifold – Coplanar Type is configured against the required size, material, connection, pressure, temperature, and quantity.
Specifications
Configured to order
Configured for your requirements
This product is built to the service conditions rather than picked from a fixed Part No. list. The range specification below applies; send the size, material, connection, pressure and temperature with your enquiry and it is configured against them.
- Product Type
- Instrument Manifold Valve
- Configurations
- 2-Valve, 3-Valve, 5-Valve
- Maximum Working Pressure
- Up to 6,000 psi (413 bar); higher ratings available depending on design
- Temperature Range
- Depends on packing and seat material
- Available Sizes
- 1/4", 3/8", 1/2"
- End Connections
- Female NPT, Male NPT, Tube Ends, Flanged Instrument Mount
- Materials
- SS316, SS316L, Carbon Steel
- Stem Packing
- PTFE, Graphite
- Valve Seats
- Metal-to-Metal or Soft Seat depending on model
- Mounting
- Direct Mount & Remote Mount
- Testing
- Shell & Seat Leak Tested
- Compliance
- Suitable for Differential Pressure Transmitter Installations
- Applications
- DP Transmitters, Pressure Gauges, Flow Measurement, Calibration Systems
