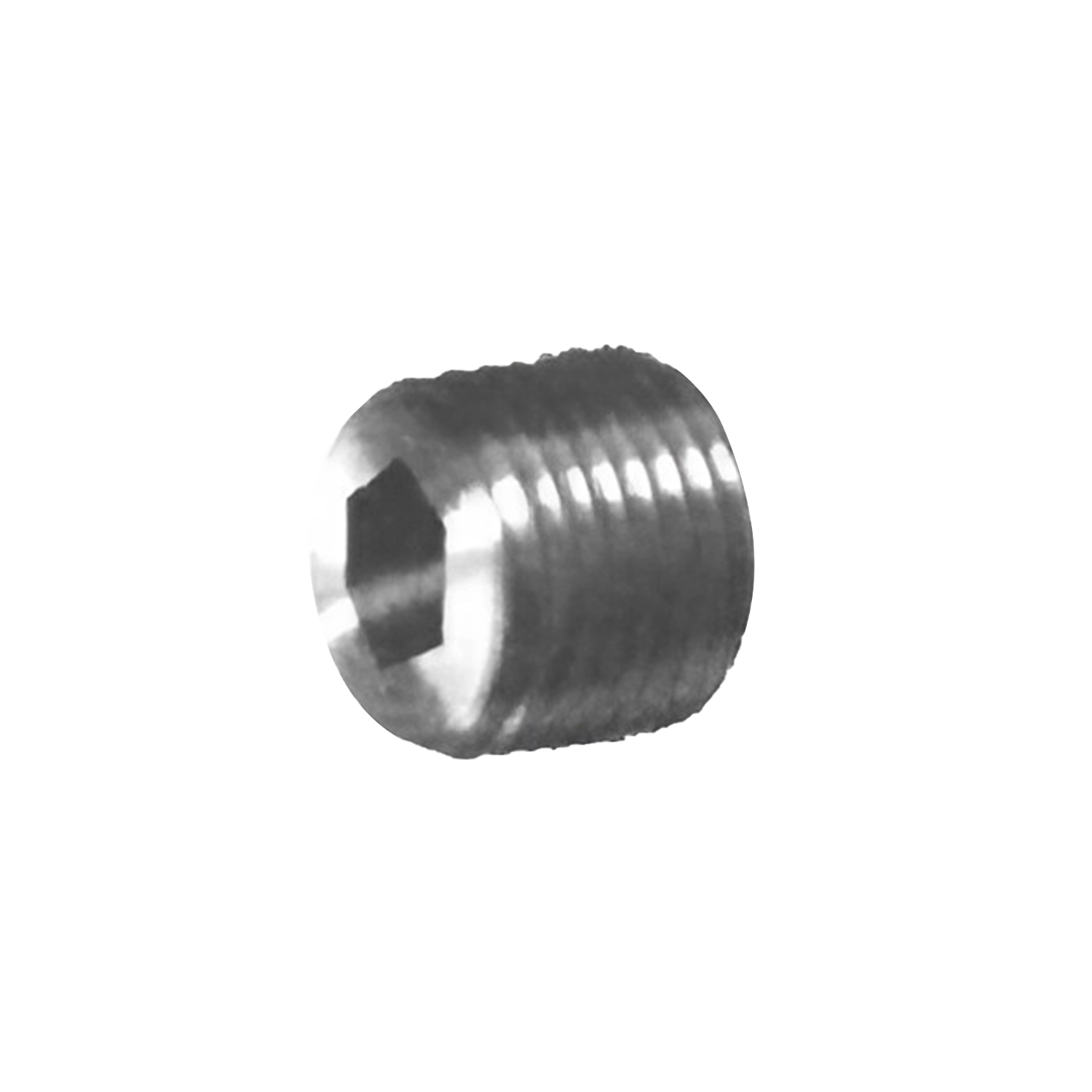

Socket Plug
A plug with an internal socket drive rather than an external hex, closing a female port where there is no clearance for a wrench around the fitting. Driven from inside with a hex key.
- Product ID
- FIT-PF-08
- Selection
- Configured to order
- Category
- Pipe Fittings
Product overview
Socket Plug is a threaded pipe fitting configuration for instrumentation and process connections.
Pipe fittings provide threaded connection forms for instrumentation and process assemblies.
Socket Plug is configured against the required size, material, connection, pressure, temperature, and quantity.
Specifications
Configured to order
Configured for your requirements
This product is built to the service conditions rather than picked from a fixed Part No. list. The range specification below applies; send the size, material, connection, pressure and temperature with your enquiry and it is configured against them.
- Product Type
- High Pressure Tube Fitting
- Design
- Heavy-duty compression fitting for severe service
- Maximum Working Pressure
- Up to 60,000 psi (4137 bar), depending on size and configuration
- Temperature Range
- Depends on material selection
- Available Sizes
- 1/4", 3/8", 9/16", and selected larger sizes
- End Connections
- High-pressure tube ends, Male/Female threaded connections
- Thread Standards
- NPT, BSPT, Medium & High Pressure Threads
- Materials
- 316 Stainless Steel, Alloy Steel, Duplex, High-strength alloys
- Ferrule System
- Precision high-pressure compression system
- Pressure Testing
- Factory hydrostatic and pneumatic leak tested
- Manufacturing
- Precision CNC machined
- Applications
- Chemical injection, hydraulic systems, pressure testing, offshore equipment, wellhead instrumentation
