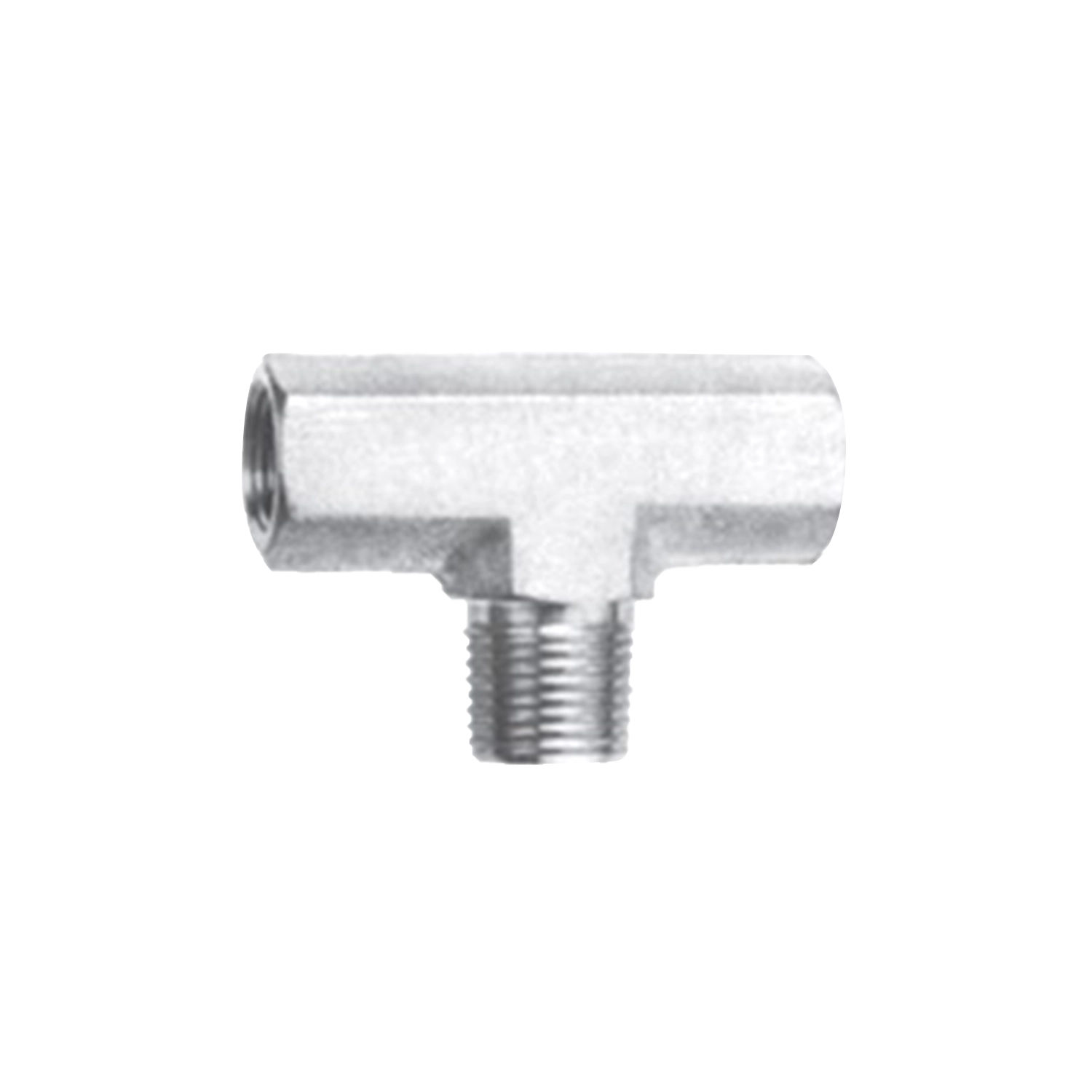

Male / Female Branch Tee
A branch tee with mixed male and female threads, taking a connection off the side of a threaded run. Selected by the gender each of the three connections presents.
- Product ID
- FIT-PF-17
- Available Part Nos.
- 5
- Category
- Pipe Fittings
PRODUCT IDFIT-PF-17
5PART NO. ROWS
01SIZE
02M/F
03F
04T1
Pipe Fittings
Product overview
Male / Female Branch Tee is a threaded pipe fitting configuration for instrumentation and process connections.
Pipe fittings provide threaded connection forms for instrumentation and process assemblies.
Male / Female Branch Tee is available in 5 published Part No. configurations across 1 specification table. Published fields include SIZE, M/F, F, T1.
Technical data
Specifications
5 published Part No. configurations
TFT.M/F Series Data
5 Part Nos.
| Part No. | SIZE | M/F | F | T1 | T2 | L1 | L2 | Cart status |
|---|---|---|---|---|---|---|---|---|
| TFT.M/F22 | 1/8"X1/8" | No value | 9/16" | 1/8" | 1/8" | 0.83 | 0.75 | |
| TFT.M/F44 | 1/4"X1/4" | No value | 3/4" | 1/4" | 1/4" | 0.98 | 0.87 | |
| TFT.M/F66 | 3/8"X3/8" | No value | 7/8" | 3/8" | 3/8" | 1.34 | 1.02 | |
| TFT.M/F88 | 1/2"X1/2" | No value | 1-1/16" | 1/2" | 1/2" | 1.50 | 1.18 | |
| TFT.M/F1212 | 3/4"X3/4" | No value | 1-1/4" | 3/4" | 3/4" | 1.89 | 1.57 |
