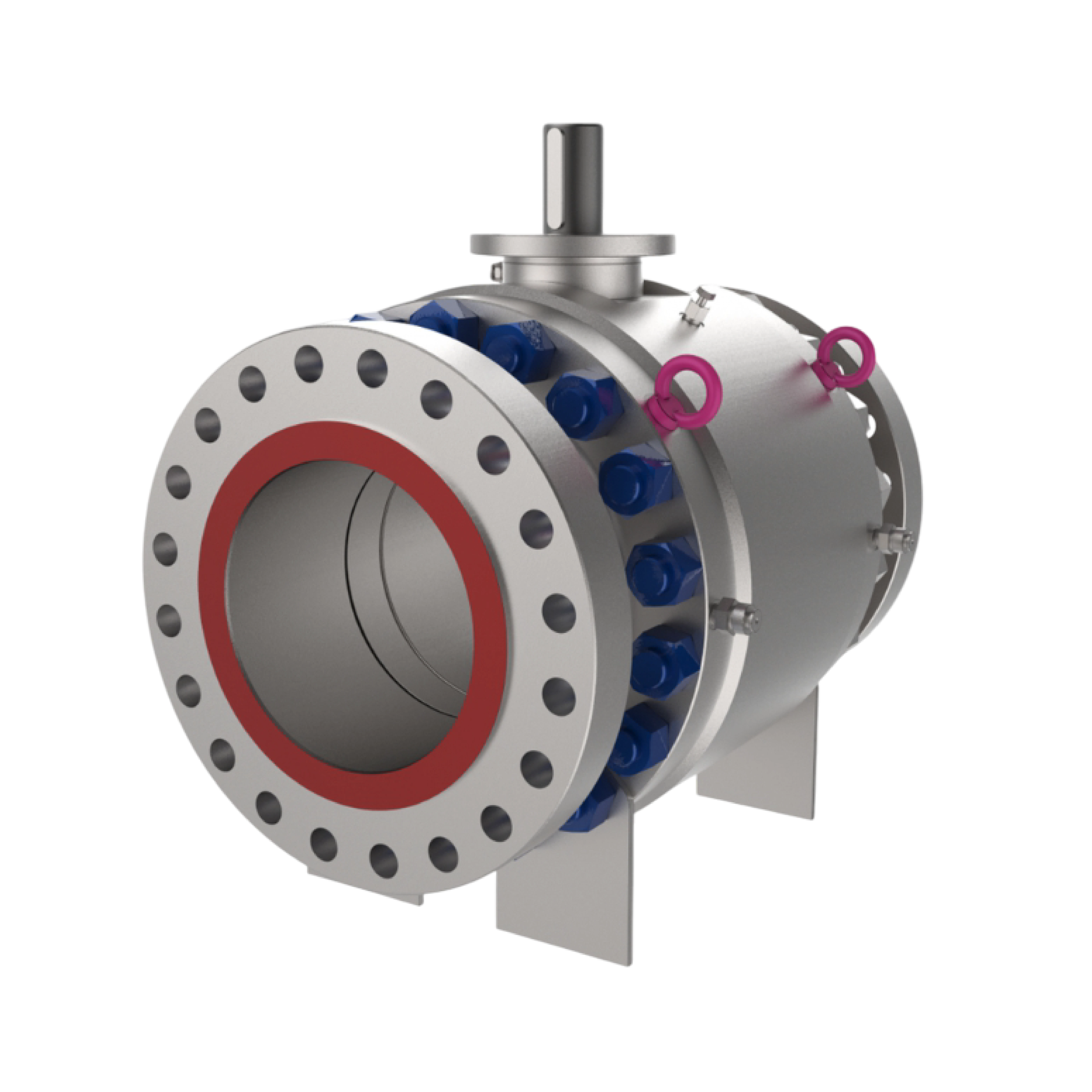

API 6D Ball Valves
A ball valve built to API 6D, the pipeline valve specification, rather than to instrumentation practice. Used on pipeline and process isolation duty where the specification, testing and traceability requirements are set by the pipeline code.
- Product ID
- VAL-IBV-01
- Selection
- Configured to order
- Category
- Industrial Ball Valves
Product overview
API 6D Ball Valves is an industrial ball valve configuration for pipeline flow isolation.
Industrial ball valves provide pipeline isolation in configurations selected against pressure, temperature, media, and connection requirements.
API 6D Ball Valves is configured against the required size, material, connection, pressure, temperature, and quantity.
Specifications
Configured to order
Configured for your requirements
This product is built to the service conditions rather than picked from a fixed Part No. list. The range specification below applies; send the size, material, connection, pressure and temperature with your enquiry and it is configured against them.
- Product Type
- Quarter-Turn Ball Valve
- Valve Design
- Floating Ball, Two-Way Full Port
- Maximum Working Pressure
- Up to 6,000 psi (413 bar), depending on valve size and seat material
- Temperature Range
- -54°C to 232°C (-65°F to 450°F), depending on seat material
- Available Sizes
- 1/8" to 2" (3 mm to 50 mm equivalent)
- End Connections
- Tube Ends, Female/Male NPT, BSPT, BSPP, Socket Weld, Butt Weld
- Port Options
- Full Port, Reduced Port
- Body Materials
- SS316, SS316L, Carbon Steel, Brass (selected models)
- Ball Material
- Hardened SS316 Stainless Steel
- Seat Materials
- PTFE, Reinforced PTFE, PEEK
- Stem Design
- Blow-out Proof Stem
- Operation
- Quarter-Turn Lever Handle
- Testing
- Hydrostatic Shell Test & Seat Leakage Test
- Applications
- Process isolation, hydraulic systems, pneumatic systems, gas distribution, instrumentation
