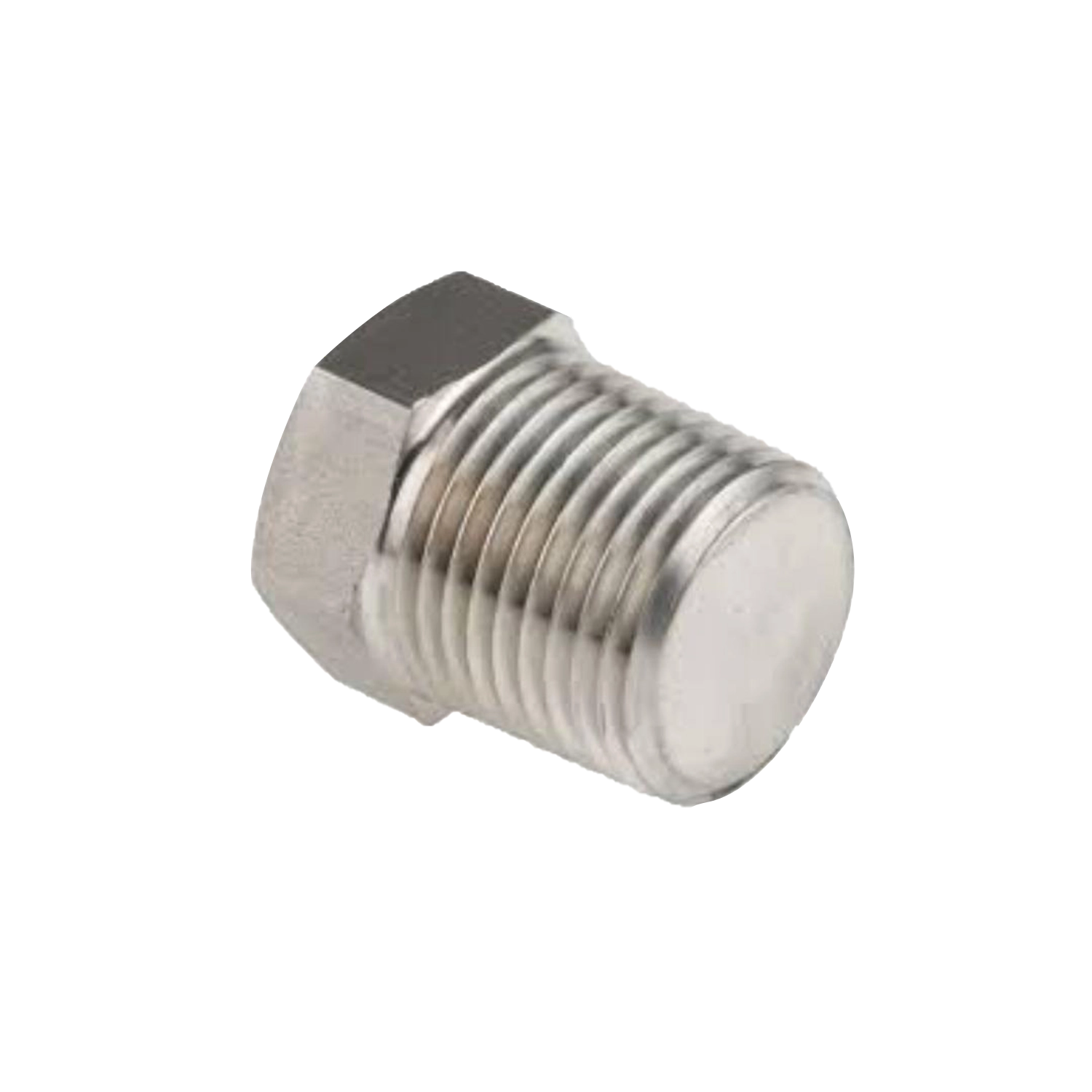

Plug – NPTM
A plug with a male NPT thread, closing an unused female port. Used to blank spare outlets on manifolds and fittings so an assembly can be pressure tested and put into service complete.
- Product ID
- FIT-HPF-20
- Selection
- Configured to order
- Category
- High-Pressure Fittings
Product overview
Plug – NPTM is part of Parflow's high-pressure fitting range for coned and threaded tube connections.
High-pressure fittings are defined by their connection form, tube size, thread, and published dimensional compatibility.
Plug – NPTM is configured against the required size, material, connection, pressure, temperature, and quantity.
- Tube connection from 1/4’ to 1”
- Pressure up to 60,000 Psi
- Coned & Threaded connection provides dependable performance
- Check holes provided on all pressure connection verifies proper connection &leak free joint
Specifications
Configured to order
Configured for your requirements
This product is built to the service conditions rather than picked from a fixed Part No. list. The range specification below applies; send the size, material, connection, pressure and temperature with your enquiry and it is configured against them.
- Product Type
- High Pressure Tube Fitting
- Design
- Heavy-duty compression fitting for severe service
- Maximum Working Pressure
- Up to 60,000 psi (4137 bar), depending on size and configuration
- Temperature Range
- Depends on material selection
- Available Sizes
- 1/4", 3/8", 9/16", and selected larger sizes
- End Connections
- High-pressure tube ends, Male/Female threaded connections
- Thread Standards
- NPT, BSPT, Medium & High Pressure Threads
- Materials
- 316 Stainless Steel, Alloy Steel, Duplex, High-strength alloys
- Ferrule System
- Precision high-pressure compression system
- Pressure Testing
- Factory hydrostatic and pneumatic leak tested
- Manufacturing
- Precision CNC machined
- Applications
- Chemical injection, hydraulic systems, pressure testing, offshore equipment, wellhead instrumentation
