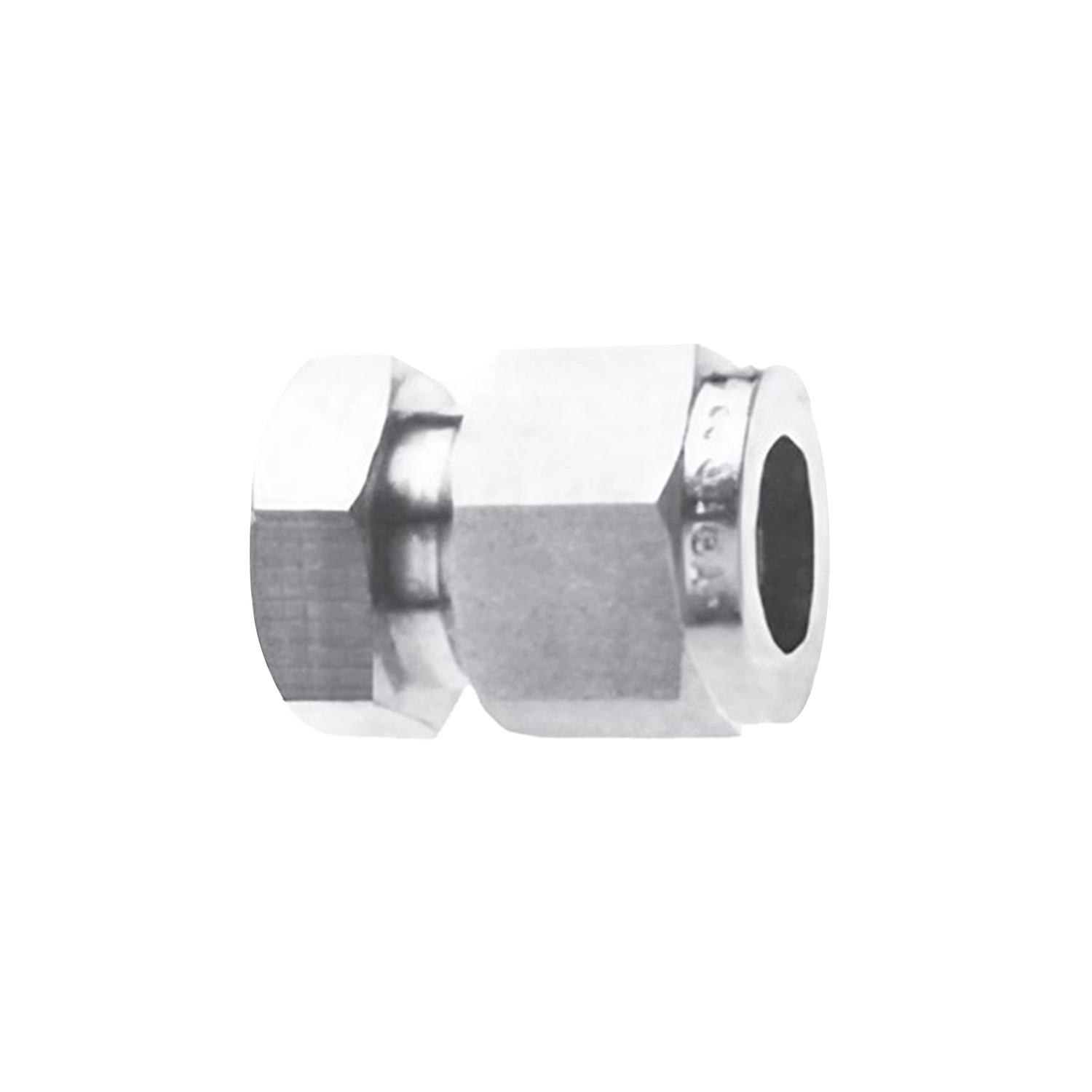

OD Cap
A cap closing the open end of a tube run from the outside. Used to terminate a run that has been left for future extension, or to blank a spare leg during commissioning and testing.
- Product ID
- FIT-TF-20
- Available Part Nos.
- 18
- Category
- Tube Fittings
PRODUCT IDFIT-TF-20
18PART NO. ROWS
01'T'TUBEOD
02A
03C
04D
Tube Fittings
Product overview
OD Cap is a tube fitting configuration for instrumentation tubing and threaded connections.
Tube fittings are defined by connection geometry, tube outside diameter, thread, and the dimensions published for each configuration.
OD Cap is available in 18 published Part No. configurations across 2 specification tables. Published fields include 'T'TUBEOD, A, C, D.
Technical data
Specifications
18 published Part No. configurations
Imperial tubing - ODCAP
10 Part Nos.
| Part No. | 'T'TUBEOD | A | C | D | FxA/F | GA/F | Cart status |
|---|---|---|---|---|---|---|---|
| ODCAP2 | 1/8" | 0.79 | 0.60 | 0.50 | 7/16" | 7/16" | |
| ODCAP3 | 3/16" | 0.84 | 0.63 | 0.64 | 7/16" | 1/2" | |
| ODCAP 4 | 1/4" | 0.92 | 0.70 | 0.60 | 1/2" | 9/16" | |
| ODCAP5 | 5/16" | 0.96 | 0.73 | 0.64 | 9/16" | 5/8" | |
| ODCAP 6 | 3/8" | 1.01 | 0.76 | 0.66 | 5/8" | 11/16" | |
| ODCAP8 | 1/2" | 1.15 | 0.86 | 0.90 | 13/16" | 7/8" | |
| ODCAP10 | 5/8" | 1.18 | 0.86 | 0.96 | 15/16" | 1" | |
| ODCAP12 | 3/4" | 1.24 | 0.86 | 0.96 | 1-1/16" | 1-1/8" | |
| ODCAP14 | 7/8" | 1.34 | 0.86 | 1.02 | 1-1/4" | 1-1/4" | |
| ODCAP16 | 1" | 1.51 | 1.04 | 1.23 | 1-3/8" | 1-1/2" |
Metric Tubeing- ODCAPm
8 Part Nos.
| Part No. | 'T'TUBEOD | A | C | D | FxA/F | GA/F | Cart status |
|---|---|---|---|---|---|---|---|
| ODCAPm3 | 3 | 20.1 | 12.9 | 12.7 | 11.0 | 11.0 | |
| ODCAPm6 | 6 | 23.1 | 15.3 | 15.3 | 14.0 | 14.0 | |
| ODCAPm8 | 8 | 24.5 | 16.2 | 16.3 | 14.0 | 16.0 | |
| ODCAPm10 | 10 | 26.6 | 17.2 | 17.5 | 17.0 | 19.0 | |
| ODCAPm12 | 12 | 29.1 | 23.0 | 22.9 | 20.6 | 22.0 | |
| ODCAPm16 | 16 | 29.9 | 24.6 | 24.4 | 24.0 | 25.4 | |
| ODCAPm20 | 20 | 34.0 | 26.1 | 25.9 | 30.0 | 32.0 | |
| ODCAPm25 | 25 | 38.5 | 31.2 | 31.2 | 35.0 | 38.0 |
