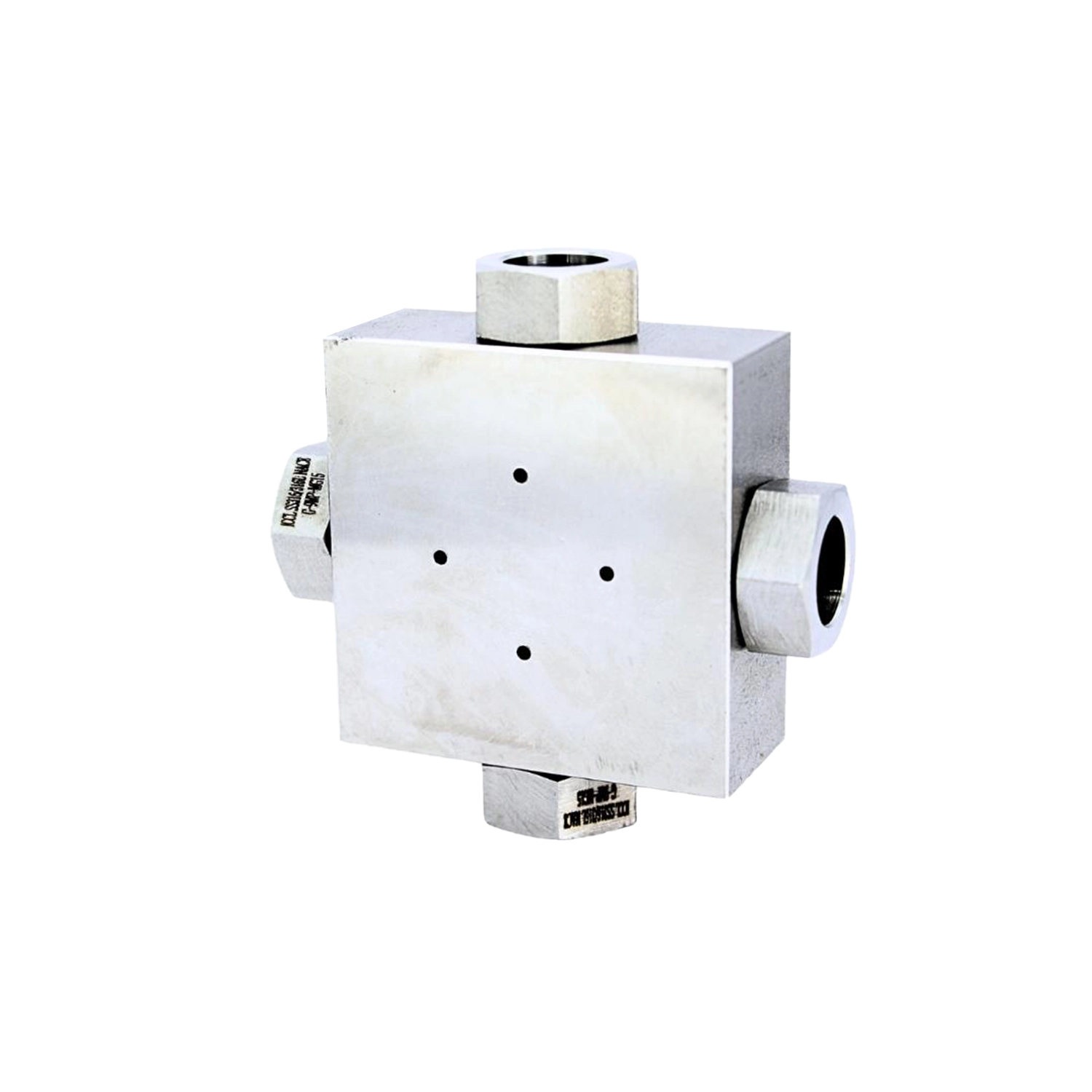

Union Cross
A cross joining four high-pressure lines at one point. Used where a run needs two opposed branches, typically an instrument connection on one side and a vent or drain on the other.
- Product ID
- FIT-HPF-09
- Available Part Nos.
- 10
- Category
- High-Pressure Fittings
PRODUCT IDFIT-HPF-09
10PART NO. ROWS
01PIPE SIZE
02PRESSURE
03T
04A/F-'F'
High-Pressure Fittings
Product overview
Union Cross is part of Parflow's high-pressure fitting range for coned and threaded tube connections.
High-pressure fittings are defined by their connection form, tube size, thread, and published dimensional compatibility.
Union Cross is available in 10 published Part No. configurations across 1 specification table. Published fields include PIPE SIZE, PRESSURE, T, A/F-'F'.
- Tube connection from 1/4’ to 1”
- Pressure up to 60,000 Psi
- Coned & Threaded connection provides dependable performance
- Check holes provided on all pressure connection verifies proper connection &leak free joint
Technical data
Specifications
10 published Part No. configurations
UNION CROSS
10 Part Nos.
| Part No. | PIPE SIZE | PRESSURE | T | A/F-'F' | L | L1 | M | N | Cart status |
|---|---|---|---|---|---|---|---|---|---|
| CR4-MP | 1/4" | UP TO 20K | 1/4" | 5/8" | 1.3/4" | 1.3/8" | 7/8" | 11/16" | |
| CR6-MP | 3/8" | UP TO 20K | 3/8" | 3/4" | 2" | 2" | 1" | 1" | |
| CR9-MP | 9/16" | UP TO 20K | 9/16" | 1" | 2.1/2" | 2.1/2" | 1.1/4" | 1.1/4" | |
| CR12-MP | 3/4" | UP TO 20K | 3/4" | 1.3/8" | 3" | 3" | 1.1/2" | 1.1/2" | |
| CR16-MP | 1" | UP TO 20K | 1" | 1.3/4" | 4.1/8" | 4.1/8" | 2.1/16" | 2.1/16" | |
| HIGH PRESSURE | |||||||||
| CR4-HP | 1/4" | 30K TO 60K | 1/4" | 1" | 2" | 1.1/2" | 1" | 3/4" | |
| CR6-HP | 3/8" | 30K TO 60K | 3/8" | 1" | 2.1/8" | 2" | 1.1/16" | 1" | |
| CR9-HP | 9/16" | 30K TO 60K | 9/16" | 1.1/2" | 2.5/8" | 2.5/8" | 1.3/8" | 1.5/16" | |
| CR9-HP | 9/16" | 40K | 9/16" | 1.1/2" | 2.3/4" | 2.5/8" | 1.3/8" | 1.5/16" | |
| CR16-HP | 1" | 30K | 1" | 1.3/4" | 4.1/8" | 4.1/8" | 2.1/16" | 2.1/16" | |
