Hex Nipple

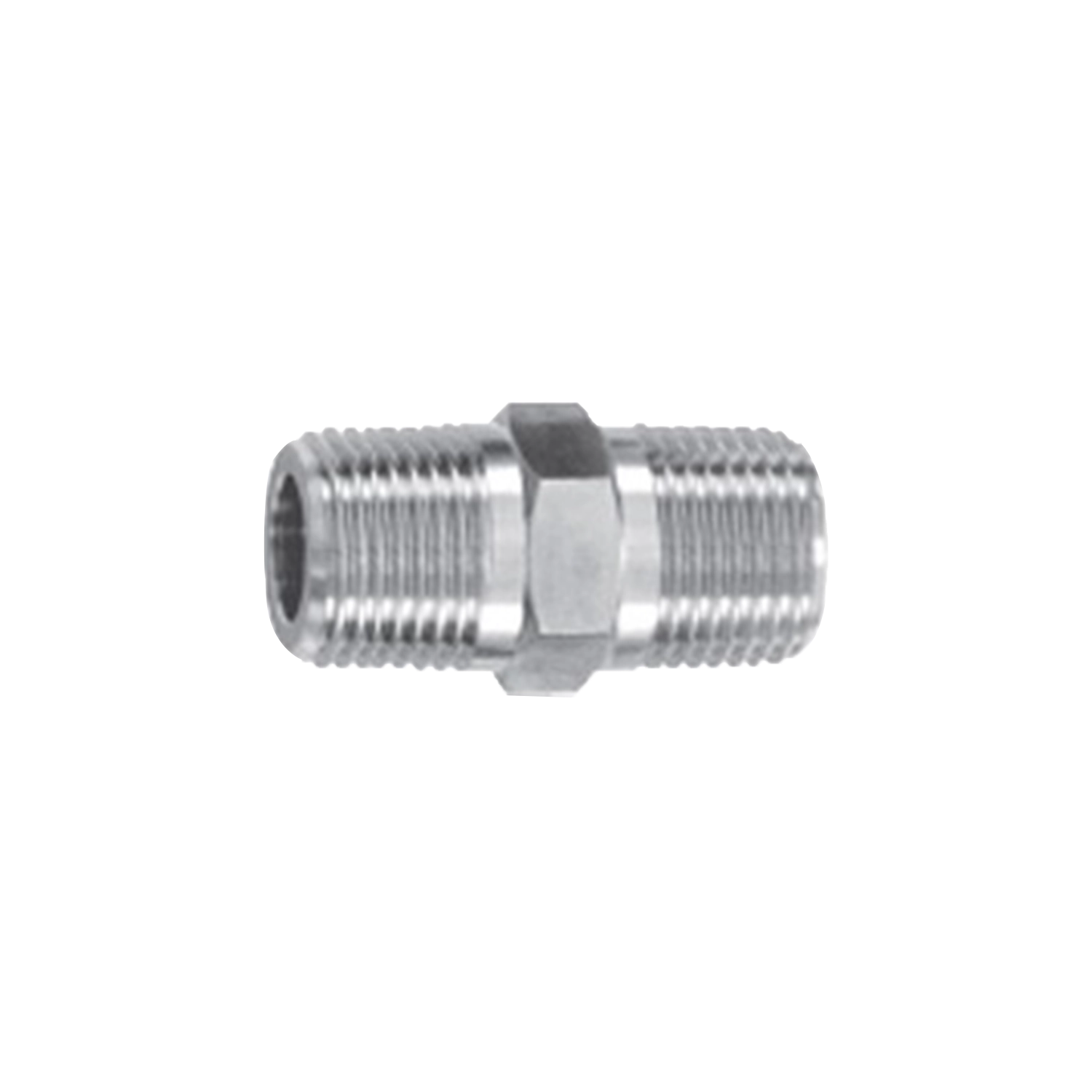

A nipple with male threads at both ends and hex flats between them, so it can be wrenched after installation. The standard way to join two female threaded ports in line.
- Product ID
- FIT-PF-02
- Available Part Nos.
- 6
- Category
- Pipe Fittings
PRODUCT IDFIT-PF-02
6PART NO. ROWS
01SIZE
02TNPT
03FA/F
04L
Pipe Fittings
Product overview
Hex Nipple is a threaded pipe fitting configuration for instrumentation and process connections.
Pipe fittings provide threaded connection forms for instrumentation and process assemblies.
Hex Nipple is available in 6 published Part No. configurations across 1 specification table. Published fields include SIZE, TNPT, FA/F, L.
Technical data
Specifications
6 published Part No. configurations
HNIPP Series Data
6 Part Nos.
| Part No. | SIZE | TNPT | FA/F | L | Cart status |
|---|---|---|---|---|---|
| HNIPP2 | 1/8" | 1/8" | 1/2" | 0.96 | |
| HNIPP4 | 1/4" | 1/4" | 9/16" | 1.34 | |
| HNIPP6 | 3/8" | 3/8" | 11/16" | 1.36 | |
| HNIPP8 | 1/2" | 1/2" | 7/8" | 1.81 | |
| HNIPP12 | 3/4" | 3/4" | 1-1/16" | 1.85 | |
| HNIPP16 | 1" | 1" | 1-3/8" | 2.28 |
