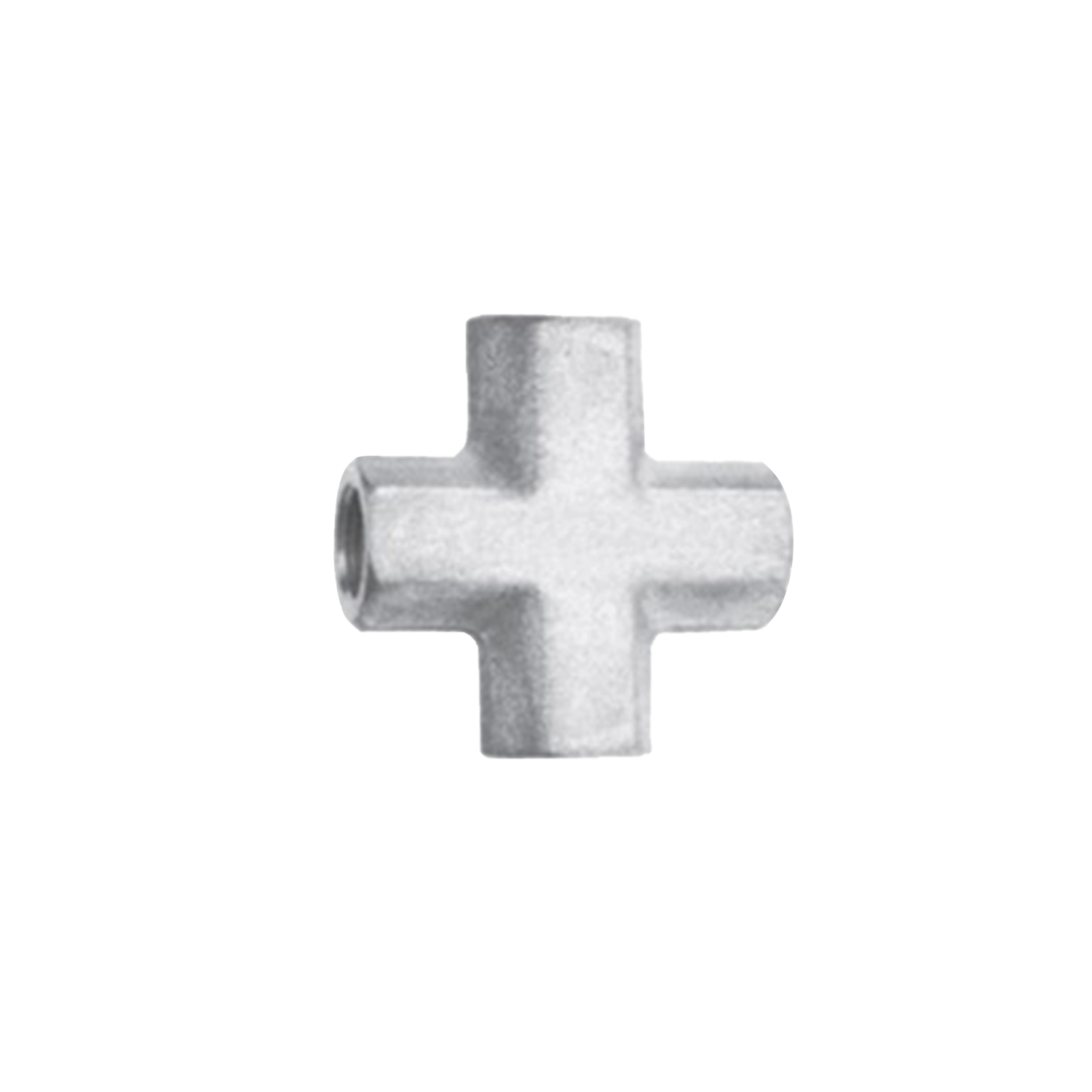

Female Cross
A cross with female threads on all four ports, joining threaded lines at one point with two opposed branches from a single run.
- Product ID
- FIT-PF-18
- Available Part Nos.
- 4
- Category
- Pipe Fittings
PRODUCT IDFIT-PF-18
4PART NO. ROWS
01SIZE
02F
03T
04L
Pipe Fittings
Product overview
Female Cross is a threaded pipe fitting configuration for instrumentation and process connections.
Pipe fittings provide threaded connection forms for instrumentation and process assemblies.
Female Cross is available in 4 published Part No. configurations across 1 specification table. Published fields include SIZE, F, T, L.
Technical data
Specifications
4 published Part No. configurations
F.CR Series Data
4 Part Nos.
| Part No. | SIZE | F | T | L | Cart status |
|---|---|---|---|---|---|
| F.CR2 | 1/8" | 9/16" | 1/8" | 0.79 | |
| F.CR4 | 1/4" | 11/16" | 1/4" | 0.83 | |
| F.CR6 | 3/8" | 7/8" | 3/8" | 0.98 | |
| F.CR8 | 1/2" | 1-1/16" | 1/2" | 1.22 |
