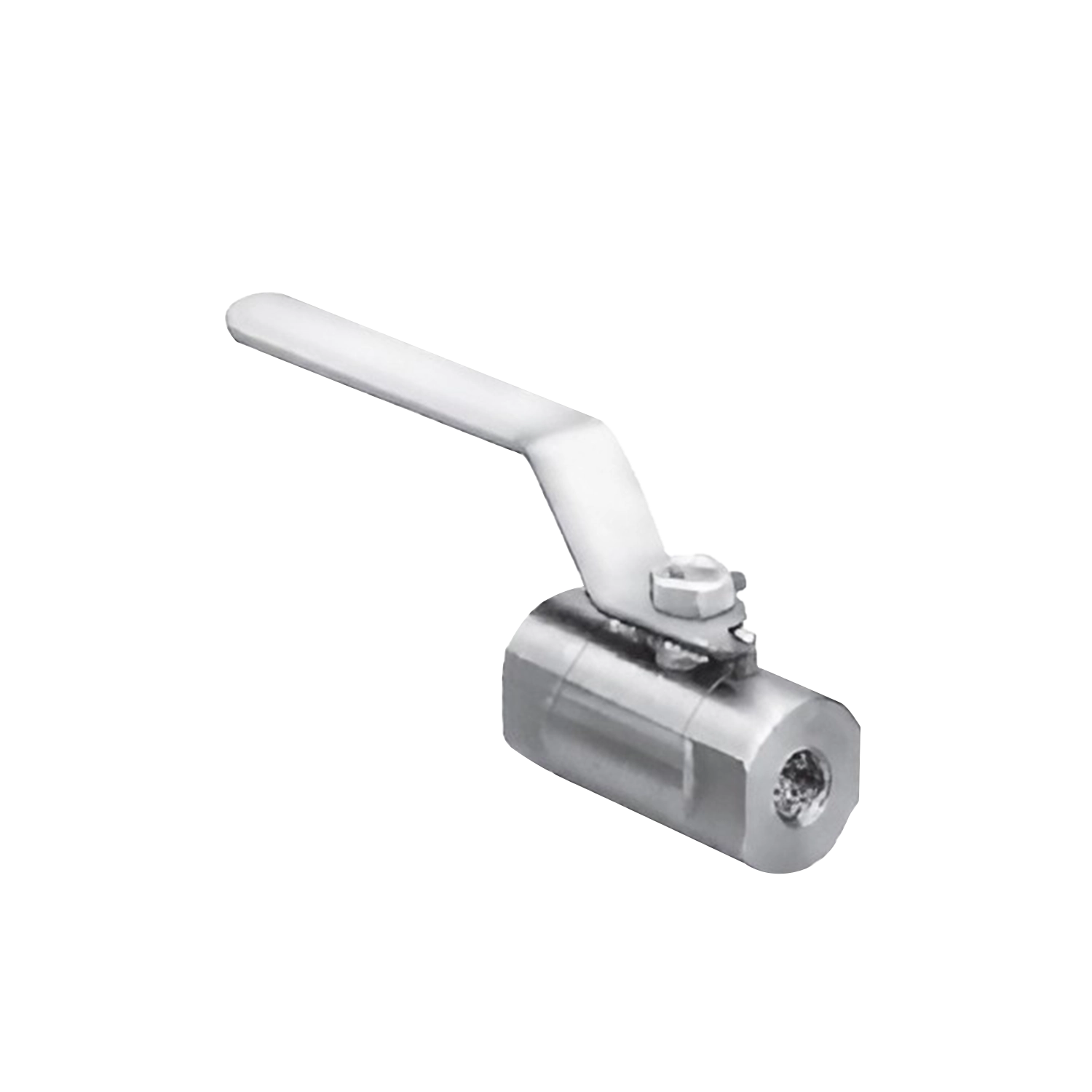

Process Ball Valve – Female End
A process ball valve with female threaded ends, for isolation duty on process and utility lines rather than instrument take-offs. The bored ball gives full flow when open and positive shut-off when closed.
- Product ID
- VAL-BV-04
- Available Part Nos.
- 5
- Category
- Ball Valves
PRODUCT IDVAL-BV-04
5PART NO. ROWS
01SIZE
02T NPT(F)
03D
04L
Ball Valves
Product overview
Process Ball Valve – Female End provides quarter-turn isolation for instrumentation and process lines.
Quarter-turn ball valves provide compact isolation across the published flow arrangements and end connections.
Process Ball Valve – Female End is available in 5 published Part No. configurations across 1 specification table. Published fields include SIZE, T NPT(F), D, L.
- No throttling or pressure drop across the valve.
- Working pressure up to 1000psi/70bar at 100°F/37°C
- Series of end connections 1/4", 3/8", 1/2" double or single ferrule tube end or male/female NPT, BSP pipe end.
- Material of construction, SS, M.S, Monel, Brass, Aluminum, Titanium, and Hastalloy.
Technical data
Specifications
5 published Part No. configurations
Process Ball Valves Female End
5 Part Nos.
| Part No. | SIZE | T NPT(F) | D | L | Cart status |
|---|---|---|---|---|---|
| PBV-PR-S-4FF | 1/4" | 1/4" | 1.06 | 2.17 | |
| PBV-PR-S-6FF | 3/8" | 3/8" | 1.18 | 2.28 | |
| PBV-PR-S-8FF | 1/2" | 1/2" | 1.38 | 2.68 | |
| PBV-PR-S-12FF | 3/4" | 3/4" | 1.61 | 2.99 | |
| PBV-PR-S-16FF | 1" | 1" | 1.89 | 3.35 |
