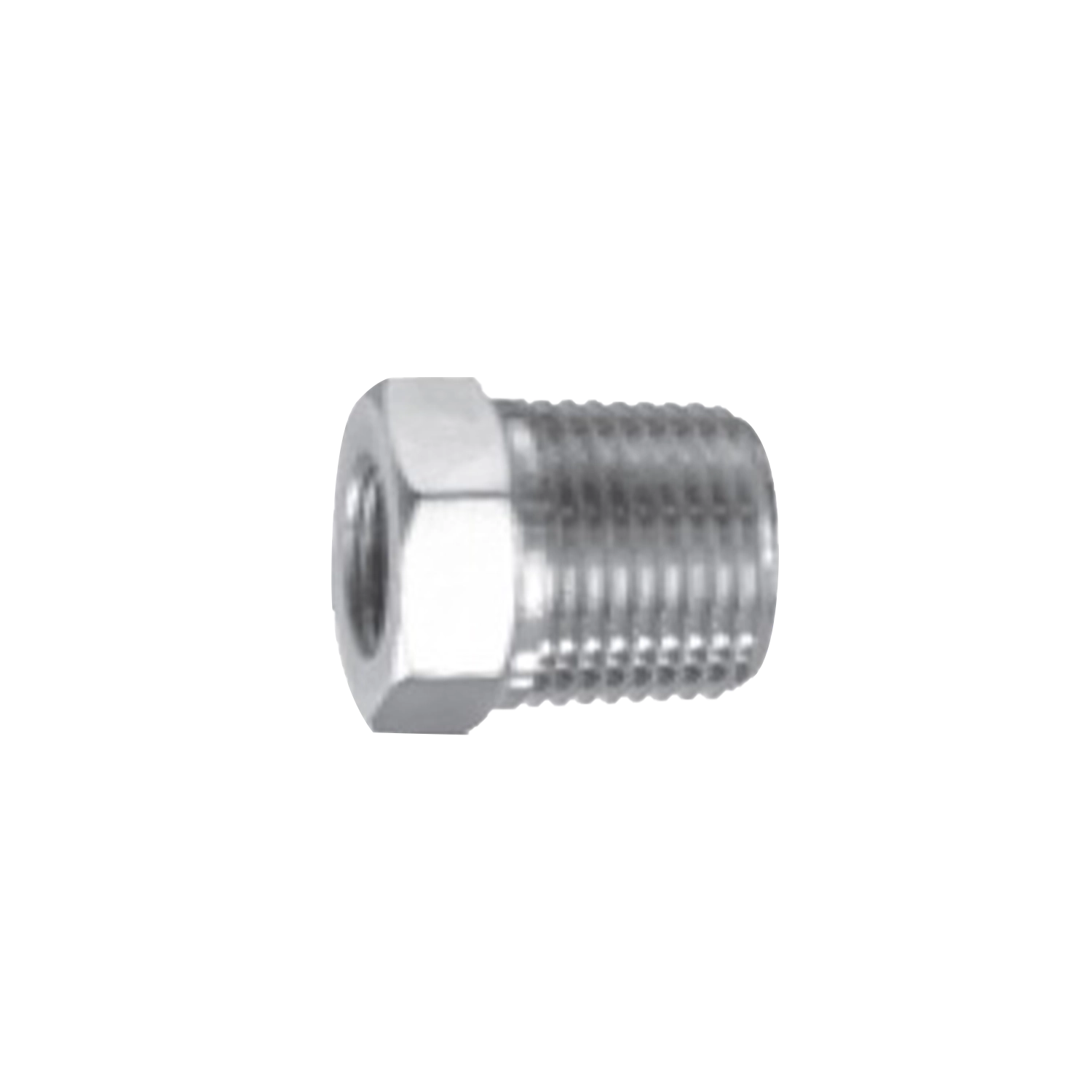

Bushing
A bushing reducing a female threaded port to a smaller size, with a male thread outside and a female thread inside. Fitted into an oversized port to accept a smaller connection.
- Product ID
- FIT-PF-04
- Available Part Nos.
- 11
- Category
- Pipe Fittings
PRODUCT IDFIT-PF-04
11PART NO. ROWS
01SIZE
02M/F
03T1
04T2
Pipe Fittings
Product overview
Bushing is a threaded pipe fitting configuration for instrumentation and process connections.
Pipe fittings provide threaded connection forms for instrumentation and process assemblies.
Bushing is available in 11 published Part No. configurations across 1 specification table. Published fields include SIZE, M/F, T1, T2.
Technical data
Specifications
11 published Part No. configurations
BUSH Series Data
11 Part Nos.
| Part No. | SIZE | M/F | T1 | T2 | FA/F | L | Cart status |
|---|---|---|---|---|---|---|---|
| BUSH42 | 1/4"x1/8" | No value | 1/4" | 1/8" | 9/16" | 0.93 | |
| BUSH62 | 3/8"x1/8" | No value | 3/8" | 1/8" | 11/16" | 0.81 | |
| BUSH64 | 3/8"x1/4" | No value | 3/8" | 1/4" | 3/4" | 1.10 | |
| BUSH82 | 1/2"X1/8" | No value | 1/2" | 1/8" | 7/8" | 1.06 | |
| BUSH84 | 1/2"X1/4" | No value | 1/2" | 1/4" | 7/8" | 1.06 | |
| BUSH86 | 1/2"X3/8" | No value | 1/2" | 3/8" | 7/8" | 1.30 | |
| BUSH124 | 3/4"X1/4" | No value | 3/4" | 1/4" | 1-1/16" | 1.10 | |
| BUSH126 | 3/4"X3/8" | No value | 3/4" | 3/8" | 1-1/16" | 1.10 | |
| BUSH128 | 3/4"X1/2" | No value | 3/4" | 1/2" | 1-1/16" | 1.50 | |
| BUSH168 | 1"X1/2" | No value | 1" | 1/2" | 1-3/8" | 1.34 | |
| BUSH1612 | 1"X3/4" | No value | 1" | 3/4" | 1-3/8" | 1.69 |
