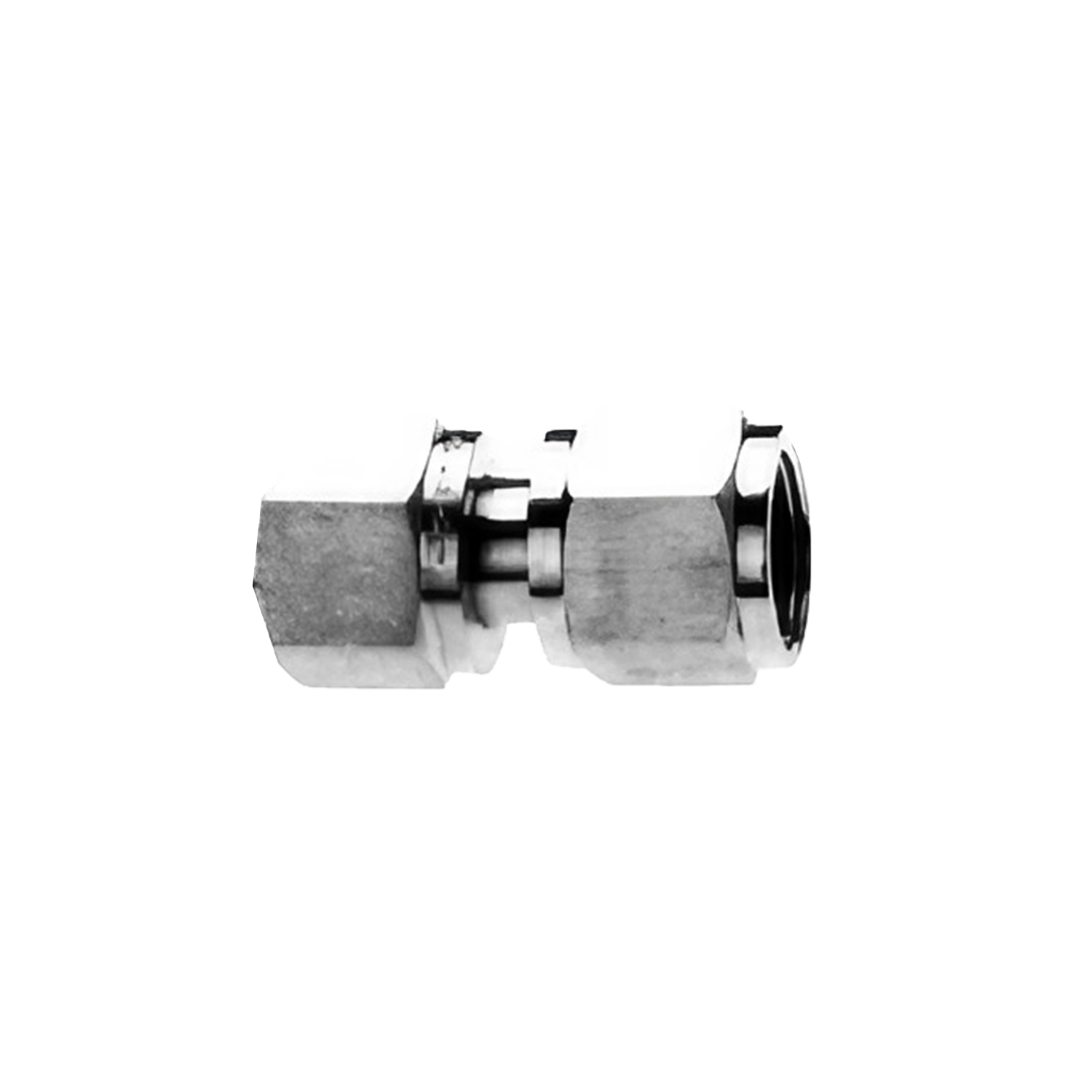

Port Connector
A port connector joining two female compression ports back to back. Used to link two fittings directly where a length of tube between them would serve no purpose.
- Product ID
- FIT-TF-15
- Available Part Nos.
- 14
- Category
- Tube Fittings
PRODUCT IDFIT-TF-15
14PART NO. ROWS
01'T'TUBEOD
02H
03J
04EMin
Tube Fittings
Product overview
Port Connector is a tube fitting configuration for instrumentation tubing and threaded connections.
Tube fittings are defined by connection geometry, tube outside diameter, thread, and the dimensions published for each configuration.
Port Connector is available in 14 published Part No. configurations across 2 specification tables. Published fields include 'T'TUBEOD, H, J, EMin.
Technical data
Specifications
14 published Part No. configurations
Inch size tubing - PC
7 Part Nos.
| Part No. | 'T'TUBEOD | H | J | EMin | Cart status |
|---|---|---|---|---|---|
| PC2 | 1/8" | 0.88 | 0.24 | 0.09 | |
| PC4 | 1/4" | 0.97 | 0.37 | 0.19 | |
| PC5 | 5/16" | 1.02 | 0.43 | 0.25 | |
| PC6 | 3/8" | 1.03 | 0.50 | 0.30 | |
| PC8 | 1/2" | 1.41 | 0.62 | 0.39 | |
| PC12 | 3/4" | 1.47 | 0.87 | 0.59 | |
| PC16 | 1" | 1.89 | 1.12 | 0.80 |
Metric tubing - PCm
7 Part Nos.
| Part No. | 'T'TUBEOD | H | J | EMin | Cart status |
|---|---|---|---|---|---|
| PCm6 | 6 | 24.6 | 9.0 | 4.4 | |
| PCm8 | 8 | 25.9 | 11.0 | 6.2 | |
| PCm10 | 10 | 26.1 | 13.1 | 8.2 | |
| PCm12 | 12 | 35.8 | 15.0 | 9.1 | |
| PCm16 | 16 | 37.4 | 19.0 | 12.7 | |
| PCm20 | 20 | 38.9 | 23.0 | 15.1 | |
| PCm25 | 25 | 48.0 | 28.0 | 19.8 |
