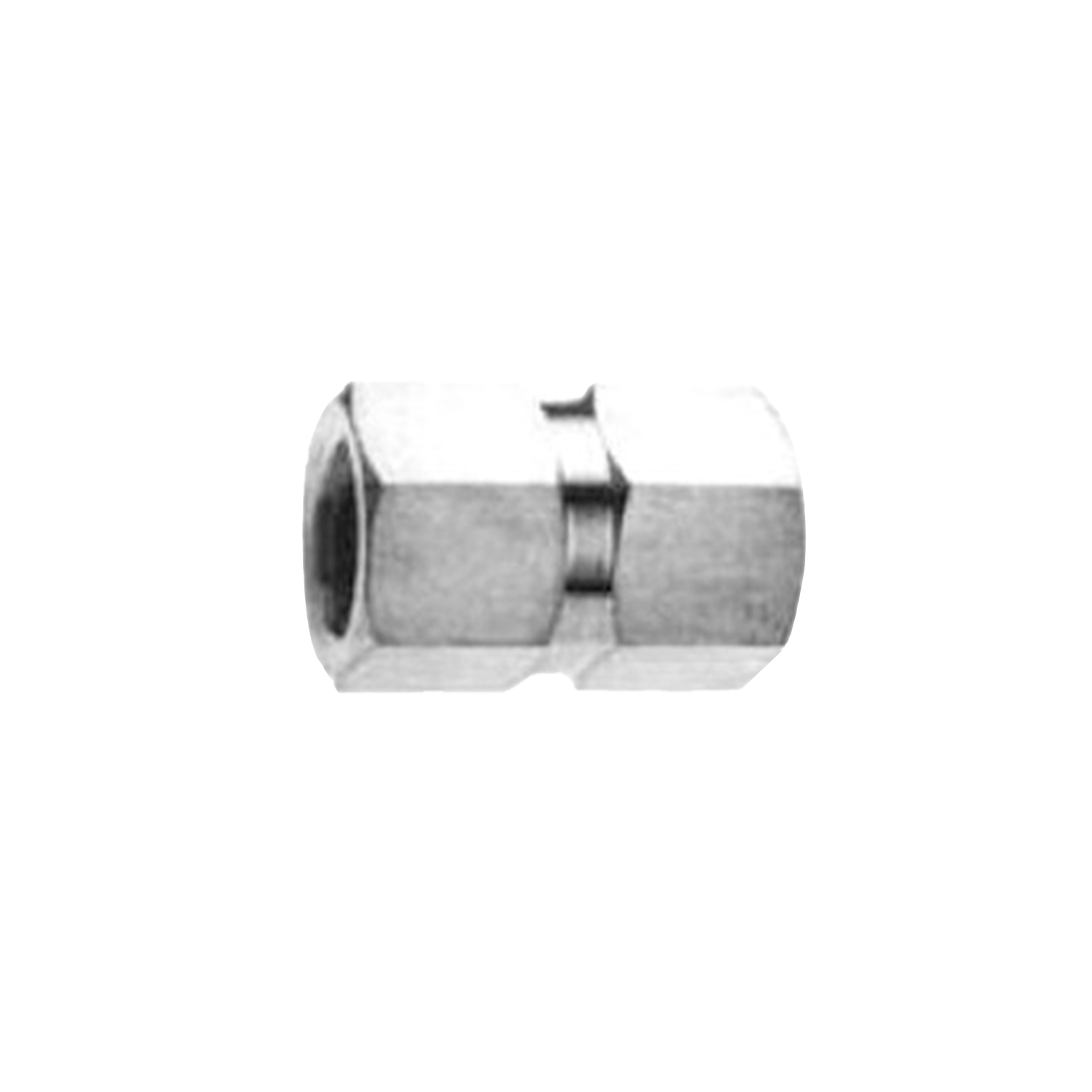

Reducing Hex Coupling
A coupling with a different female thread size at each end, joining two male connections and changing size in one fitting rather than a coupling plus bushing.
- Product ID
- FIT-PF-06
- Available Part Nos.
- 12
- Category
- Pipe Fittings
PRODUCT IDFIT-PF-06
12PART NO. ROWS
01SIZE
02M/F
03T1
04T2
Pipe Fittings
Product overview
Reducing Hex Coupling is a threaded pipe fitting configuration for instrumentation and process connections.
Pipe fittings provide threaded connection forms for instrumentation and process assemblies.
Reducing Hex Coupling is available in 12 published Part No. configurations across 1 specification table. Published fields include SIZE, M/F, T1, T2.
Technical data
Specifications
12 published Part No. configurations
R.COPL Series Data
12 Part Nos.
| Part No. | SIZE | M/F | T1 | T2 | F | L | Cart status |
|---|---|---|---|---|---|---|---|
| R.COPL42 | 1/4"x1/8" | No value | 1/4" | 1/8" | 3/4" | 1.00 | |
| R.COPL62 | 3/8"x1/8" | No value | 3/8" | 1/8" | 7/8" | 1.00 | |
| R.COPL64 | 3/8"x1/4" | No value | 3/8" | 1/4" | 7/8" | 1.18 | |
| R.COPL82 | 1/2"X1/8" | No value | 1/2" | 1/8" | 1-1/16" | 1.20 | |
| R.COPL84 | 1/2"X1/4" | No value | 1/2" | 1/4" | 1-1/16" | 1.38 | |
| R.COPL86 | 1/2"X3/8" | No value | 1/2" | 3/8" | 1-1/16" | 1.38 | |
| R.COPL88 | 1/2" X 1/2" | No value | 1/2" | 1/2" | 1-1/16" | 1.57 | |
| R.COPL124 | 3/4"X1/4" | No value | 3/4" | 1/4" | 1-1/4" | 1.42 | |
| R.COPL126 | 3/4"X3/8" | No value | 3/4" | 3/8" | 1-1/4" | 1.42 | |
| R.COPL128 | 3/4"X1/2" | No value | 3/4" | 1/2" | 1-1/4" | 1.61 | |
| R.COPL168 | 1"X1/2" | No value | 1" | 1/2" | 1-5/8" | 1.85 | |
| R.COPL1612 | 1"X3/4" | No value | 1" | 3/4" | 1-5/8" | 1.85 |
