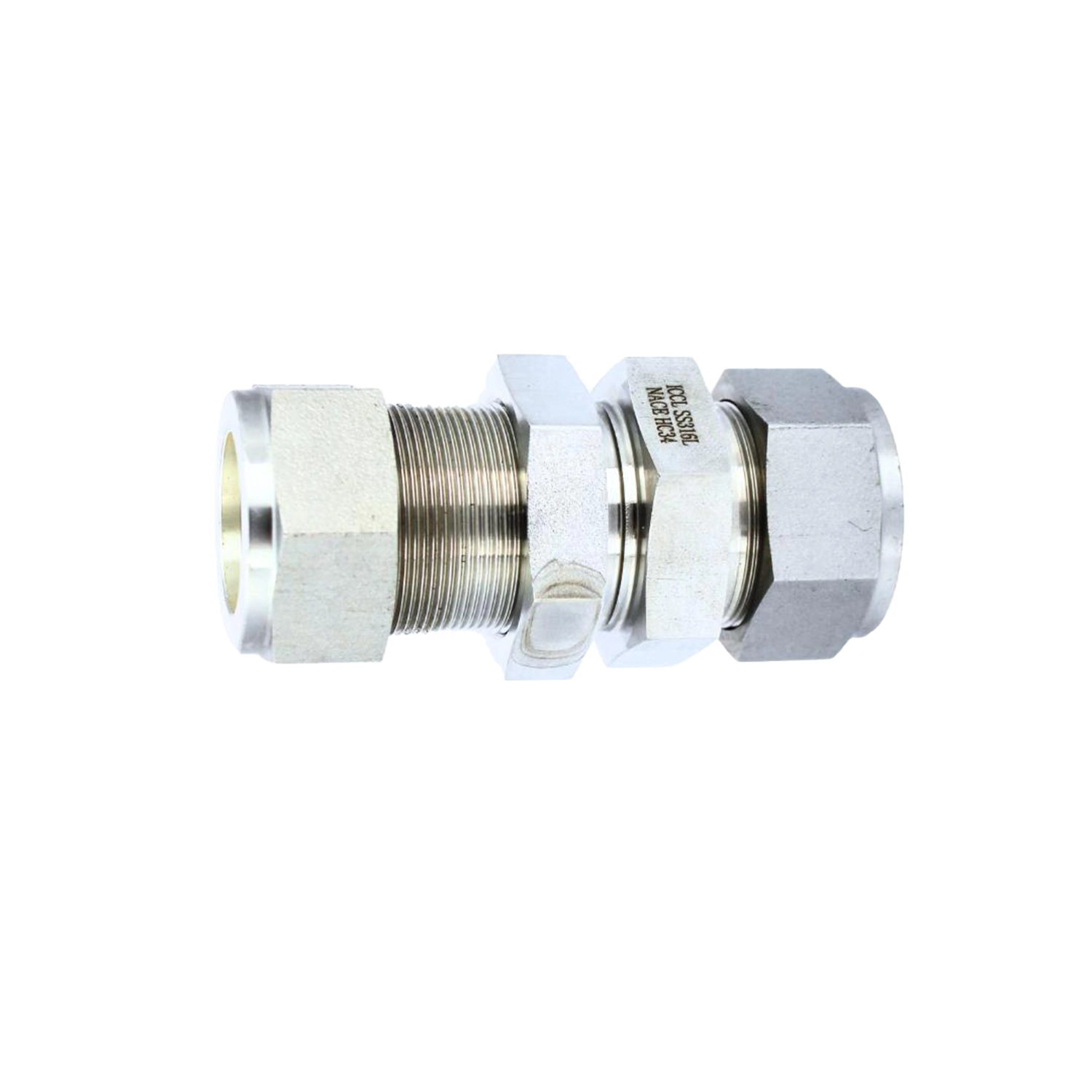

Union Bulkhead
A bulkhead union for taking a high-pressure line through a panel, enclosure or skid wall. The body is retained by the wall itself, so the tube is anchored at the penetration rather than hanging on the joint.
- Product ID
- FIT-HPF-06
- Available Part Nos.
- 10
- Category
- High-Pressure Fittings
PRODUCT IDFIT-HPF-06
10PART NO. ROWS
01PIPE SIZE
02PRESSURE
03T
04A/F-'F'
High-Pressure Fittings
Product overview
Union Bulkhead is part of Parflow's high-pressure fitting range for coned and threaded tube connections.
High-pressure fittings are defined by their connection form, tube size, thread, and published dimensional compatibility.
Union Bulkhead is available in 10 published Part No. configurations across 1 specification table. Published fields include PIPE SIZE, PRESSURE, T, A/F-'F'.
- Tube connection from 1/4’ to 1”
- Pressure up to 60,000 Psi
- Coned & Threaded connection provides dependable performance
- Check holes provided on all pressure connection verifies proper connection &leak free joint
Technical data
Specifications
10 published Part No. configurations
FEATURES:
10 Part Nos.
| Part No. | PIPE SIZE | PRESSURE | T | A/F-'F' | L | PANELHOLE DIA-D | Cart status |
|---|---|---|---|---|---|---|---|
| BHU4-MP | 1/4" | UP TO 20K | 1/4" MP | 1" | 1.7/8" | 3/4"-16 | |
| BHU6-MP | 3/8" | UP TO 20K | 3/8" MP | 1" | 2" | 7/8"-14 | |
| BHU9-MP | 9/16" | UP TO 20K | 9/16" MP | 1.3/8" | 2.3/8" | 1.1/16"-12 | |
| BHU12-MP | 3/4" | UP TO 20K | 3/4" MP | 1.7/8" | 2.5/8" | 1.5/8"-12 | |
| BHU16-MP | 1" | UP TO 20K | 1" MP | 2.1/8" | 3.1/2" | 1.7/8"-12 | |
| HIGH PRESSURE | |||||||
| BHU4-HP | 1/4" | 30K TO 60K | 1/4" HP | 1" | 2" | 7/8"-14 | |
| BHU6-HP | 3/8" | 30K TO 60K | 3/8" HP | 1.3/8" | 2.3/8" | 1.1/16"-12 | |
| BHU9-HP | 9/16" | 30K TO 60K | 9/16" HP | 1.7/8" | 2.3/4" | 1.5/8"-12 | |
| BHU9-HP | 9/16" | 40K | 9/16" HP | 1.7/8" | 2.3/4" | 1.5/8"-12 | |
| BHU16-HP | 1" | 30K | 1" HP | 1.7/8" | 3.1/2" | 2.1/8"-12 | |
