Male Run Tee

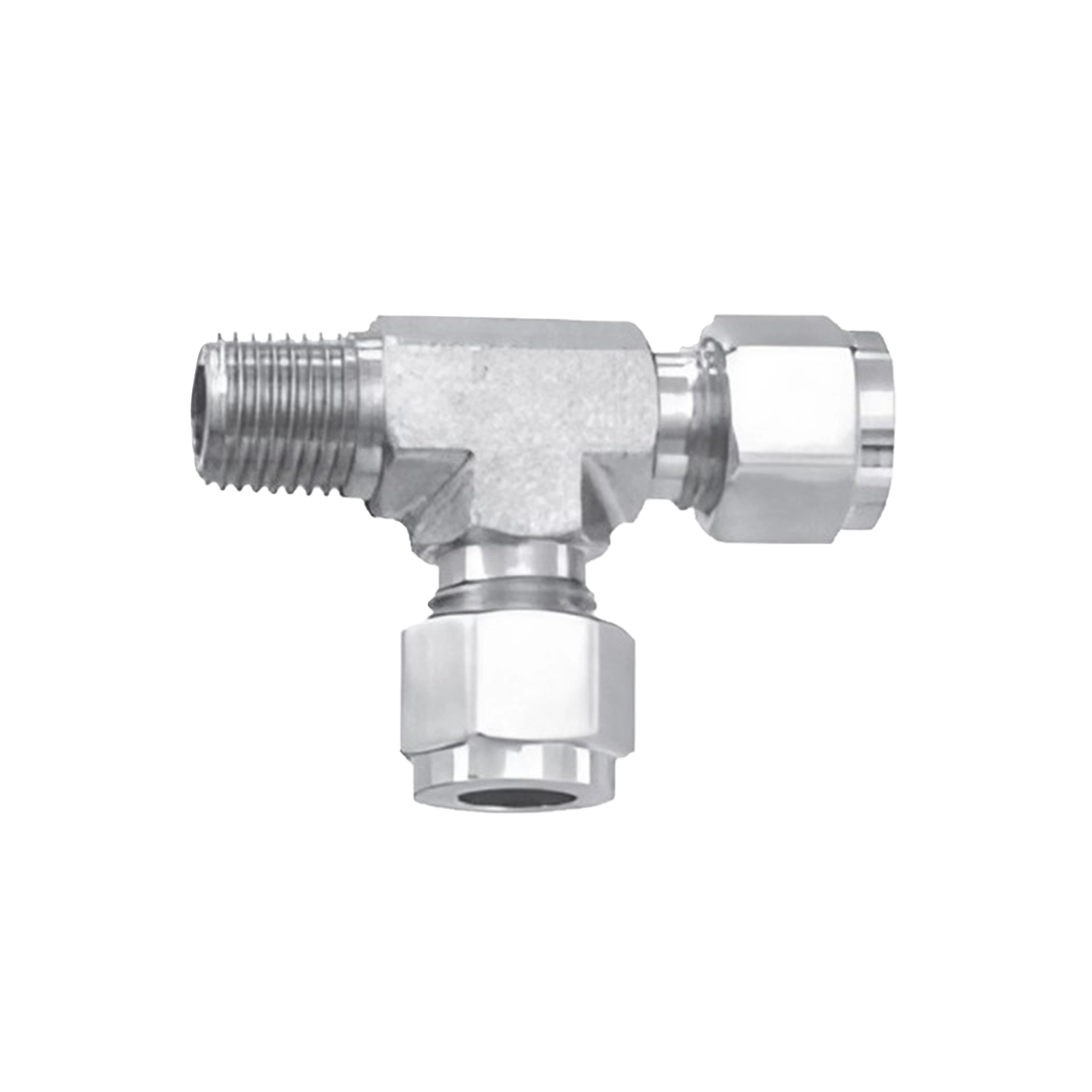

A run tee carrying a tube run straight through with a male threaded connection on the branch. The run is continuous, which is the difference from a branch tee where the run turns into the branch.
- Product ID
- FIT-TF-16
- Available Part Nos.
- 22
- Category
- Tube Fittings
PRODUCT IDFIT-TF-16
22PART NO. ROWS
01TUBEOD'T'
02NPT'P'
03A
04B
Tube Fittings
Product overview
Male Run Tee is a tube fitting configuration for instrumentation tubing and threaded connections.
Tube fittings are defined by connection geometry, tube outside diameter, thread, and the dimensions published for each configuration.
Male Run Tee is available in 22 published Part No. configurations across 2 specification tables. Published fields include TUBEOD'T', NPT'P', A, B.
Technical data
Specifications
22 published Part No. configurations
Imperial tubing - TTM
11 Part Nos.
| Part No. | TUBEOD'T' | NPT'P' | A | B | C | D | EMIN | FA/F | GA/F | Hy | HxBODY | Cart status |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TTM22 | 1/8" | 1/8" | 0.93 | 0.38 | 0.60 | 0.50 | 0.09 | 1/2" | 7/16" | 0.70 | 0.67 | |
| TTM24 | 1/8" | 1/4" | 0.97 | 0.56 | 0.60 | 0.50 | 0.09 | 9/16" | 7/16" | 0.92 | 0.71 | |
| TTM42 | 1/4" | 1/8" | 1.06 | 0.38 | 0.70 | 0.60 | 0.19 | 1/2" | 9/16" | 0.74 | 0.77 | |
| TTM44 | 1/4" | 1/4" | 1.06 | 0.56 | 0.70 | 0.60 | 0.19 | 9/16" | 9/16" | 0.92 | 0.77 | |
| TTM54 | 5/16" | 1/4" | 1.17 | 0.56 | 0.73 | 0.64 | 0.25 | 9/16" | 5/8" | 0.92 | 0.88 | |
| TTM64 | 3/8" | 1/4" | 1.20 | 0.56 | 0.76 | 0.66 | 0.28 | 9/16" | 11/16" | 1.00 | 0.91 | |
| TTM66 | 3/8" | 3/8" | 1.31 | 0.56 | 0.76 | 0.66 | 0.28 | 11/16" | 11/16" | 1.11 | 1.02 | |
| TTM86 | 1/2" | 3/8" | 1.42 | 0.56 | 0.86 | 0.90 | 0.38 | 13/16" | 7/8" | 1.11 | 1.02 | |
| TTM88 | 1/2" | 1/2" | 1.42 | 0.75 | 0.86 | 0.90 | 0.41 | 7/8" | 7/8" | 1.30 | 1.02 | |
| TTM108 | 5/8" | 1/2" | 1.53 | 0.75 | 0.86 | 0.96 | 0.47 | 15/16" | 1" | 1.41 | 1.13 | |
| TTM1212 | 3/4" | 3/4" | 1.57 | 0.75 | 0.86 | 0.96 | 0.62 | 1-1/16" | 1-1/8" | 1.45 | 1.17 |
Metric Tubing - TTMm
11 Part Nos.
| Part No. | TUBEOD'T' | NPT'P' | A | B | C | D | EMIN | FA/F | GA/F | Hy | HxBODY | Cart status | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TTMm32 | 3 | 1/8" | 23.6 | 9.7 | No value | 15.3 | 12.9 | 2.4 | 12.7 | 11.0 | 17.8 | 17.0 | |
| TTMm34 | 3 | 1/4" | 24.6 | 14.2 | No value | 15.3 | 12.9 | 2.4 | 14.0 | 11.0 | 23.4 | 18.0 | |
| TTMm62 | 6 | 1/8" | 26.9 | No value | 9.7 | 17.7 | 15.3 | 4.8 | 12.7 | 14.0 | 18.8 | 19.6 | |
| TTMm64 | 6 | 1/4" | 26.9 | 14.2 | No value | 17.7 | 15.3 | 4.8 | 14.0 | 14.0 | 23.4 | 19.6 | |
| TTMm82 | 8 | 1/8" | 29.8 | No value | 9.7 | 18.6 | 16.2 | 4.8 | 14.0 | 16.0 | 19.0 | 22.4 | |
| TTMm84 | 8 | 1/4" | 29.8 | 14.2 | No value | 18.6 | 16.2 | 6.3 | 14.0 | 16.0 | 23.4 | 22.4 | |
| TTMm104 | 10 | 1/4" | 33.5 | 14.2 | No value | 19.5 | 17.2 | 7.1 | 17.0 | 19.0 | 28.2 | 25.9 | |
| TTMm106 | 10 | 3/8" | 33.5 | 14.2 | No value | 19.5 | 17.2 | 7.9 | 17.0 | 19.0 | 28.2 | 25.9 | |
| TTMm126 | 12 | 3/8" | 36.0 | 14.2 | No value | 22.0 | 22.8 | 9.5 | 20.5 | 22.0 | 28.2 | 25.9 | |
| TTMm128 | 12 | 1/2" | 36.0 | 19.0 | No value | 22.0 | 22.8 | 9.5 | 22.0 | 22.0 | 33.0 | 25.9 | |
| TTMm168 | 16 | 1/2" | 38.8 | 19.0 | No value | 22.0 | 24.4 | 12.7 | 24.0 | 25.0 | 35.8 | 28.7 |
