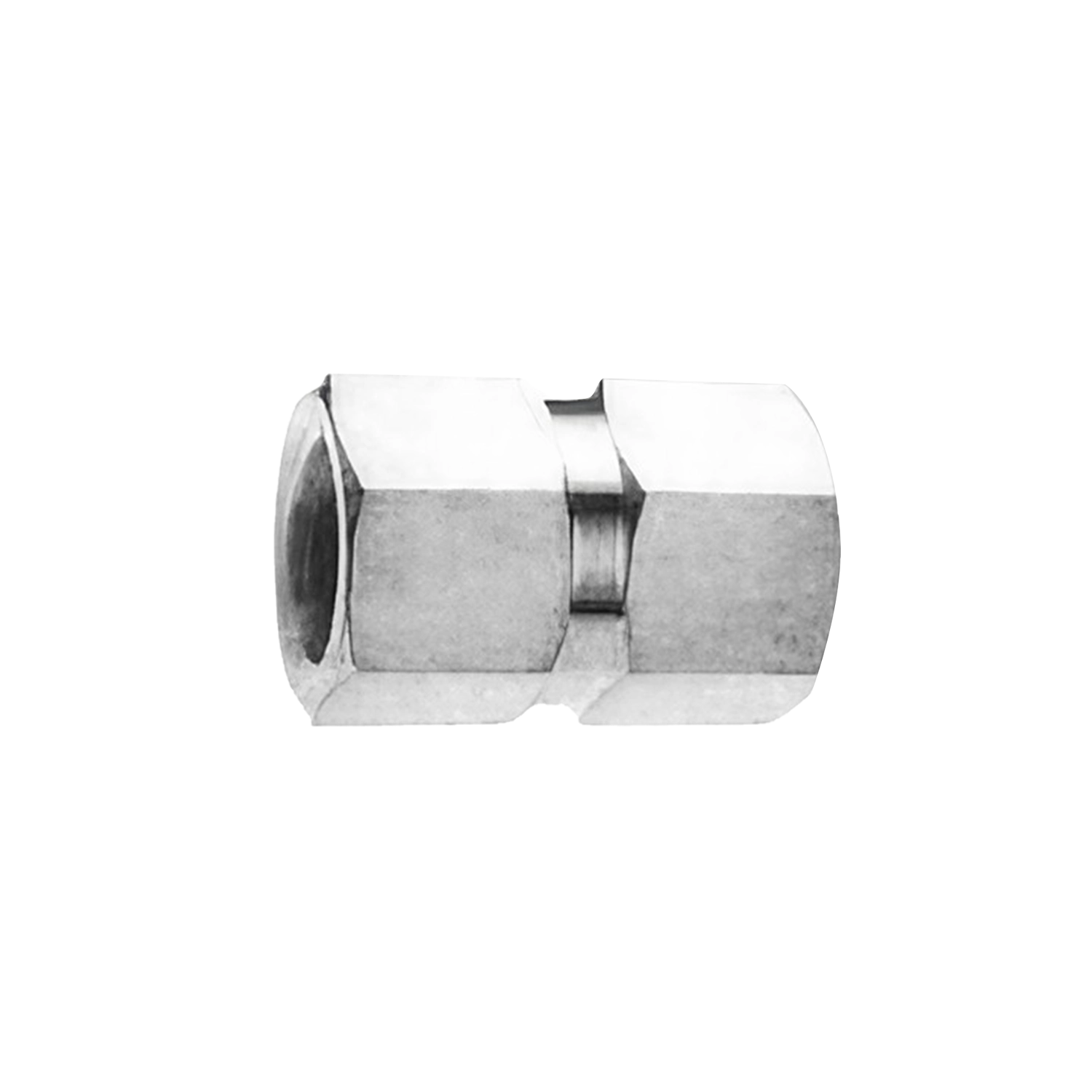

Hex Coupling
A coupling with female threads at both ends, joining two male threaded connections in line. The straightforward way to connect or extend threaded pipework.
- Product ID
- FIT-PF-05
- Available Part Nos.
- 6
- Category
- Pipe Fittings
PRODUCT IDFIT-PF-05
6PART NO. ROWS
01SIZE
02T
03FA/F
04L
Pipe Fittings
Product overview
Hex Coupling is a threaded pipe fitting configuration for instrumentation and process connections.
Pipe fittings provide threaded connection forms for instrumentation and process assemblies.
Hex Coupling is available in 6 published Part No. configurations across 1 specification table. Published fields include SIZE, T, FA/F, L.
Technical data
Specifications
6 published Part No. configurations
COPL Series Data
6 Part Nos.
| Part No. | SIZE | T | FA/F | L | Cart status |
|---|---|---|---|---|---|
| COPL2 | 1/8" | 1/8" | 9/16" | 0.81 | |
| COPL4 | 1/4" | 1/4" | 3/4" | 1.18 | |
| COPL6 | 3/8" | 3/8" | 7/8" | 1.18 | |
| COPL8 | 1/2" | 1/2" | 1-1/16" | 1.57 | |
| COPL12 | 3/4" | 3/4" | 1-1/4" | 1.61 | |
| COPL16 | 1" | 1" | 1-5/8" | 2.01 |
