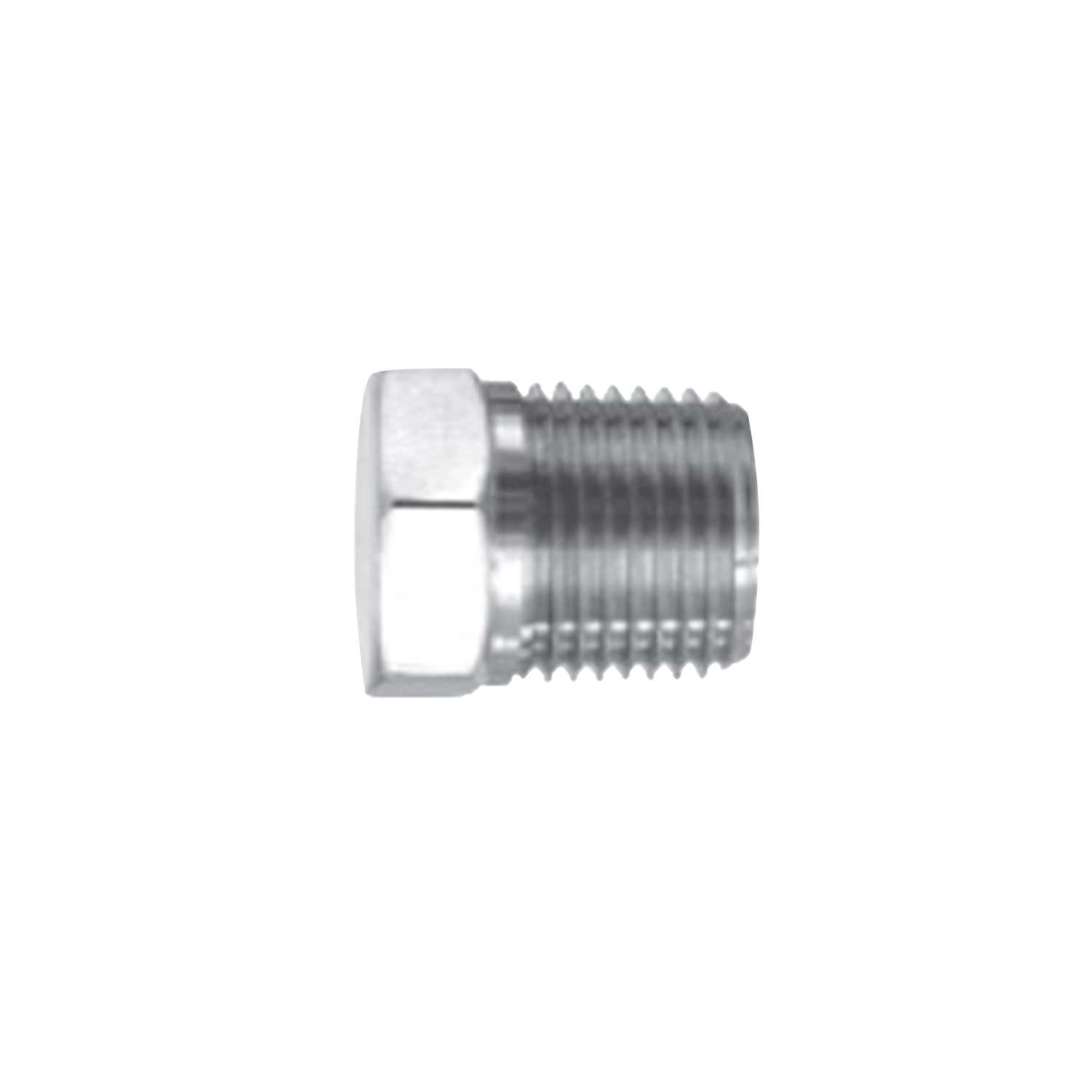

Hex Plug
A plug with a male thread and hex flats, closing an unused female port. The hex allows it to be tightened and later removed with a wrench.
- Product ID
- FIT-PF-07
- Available Part Nos.
- 6
- Category
- Pipe Fittings
PRODUCT IDFIT-PF-07
6PART NO. ROWS
01SIZE
02TNPT
03FA/F
04L
Pipe Fittings
Product overview
Hex Plug is a threaded pipe fitting configuration for instrumentation and process connections.
Pipe fittings provide threaded connection forms for instrumentation and process assemblies.
Hex Plug is available in 6 published Part No. configurations across 1 specification table. Published fields include SIZE, TNPT, FA/F, L.
Technical data
Specifications
6 published Part No. configurations
PLUG Series Data
6 Part Nos.
| Part No. | SIZE | TNPT | FA/F | L | Cart status |
|---|---|---|---|---|---|
| PLUG2 | 1/8" | 1/8" | 1/2" | 0.59 | |
| PLUG4 | 1/4" | 1/4" | 9/16" | 0.79 | |
| PLUG6 | 3/8" | 3/8" | 11/16" | 0.81 | |
| PLUG8 | 1/2" | 1/2" | 7/8" | 1.06 | |
| PLUG12 | 3/4" | 3/4" | 1-1/16" | 1.10 | |
| PLUG16 | 1" | 1" | 1-3/8" | 1.34 |
