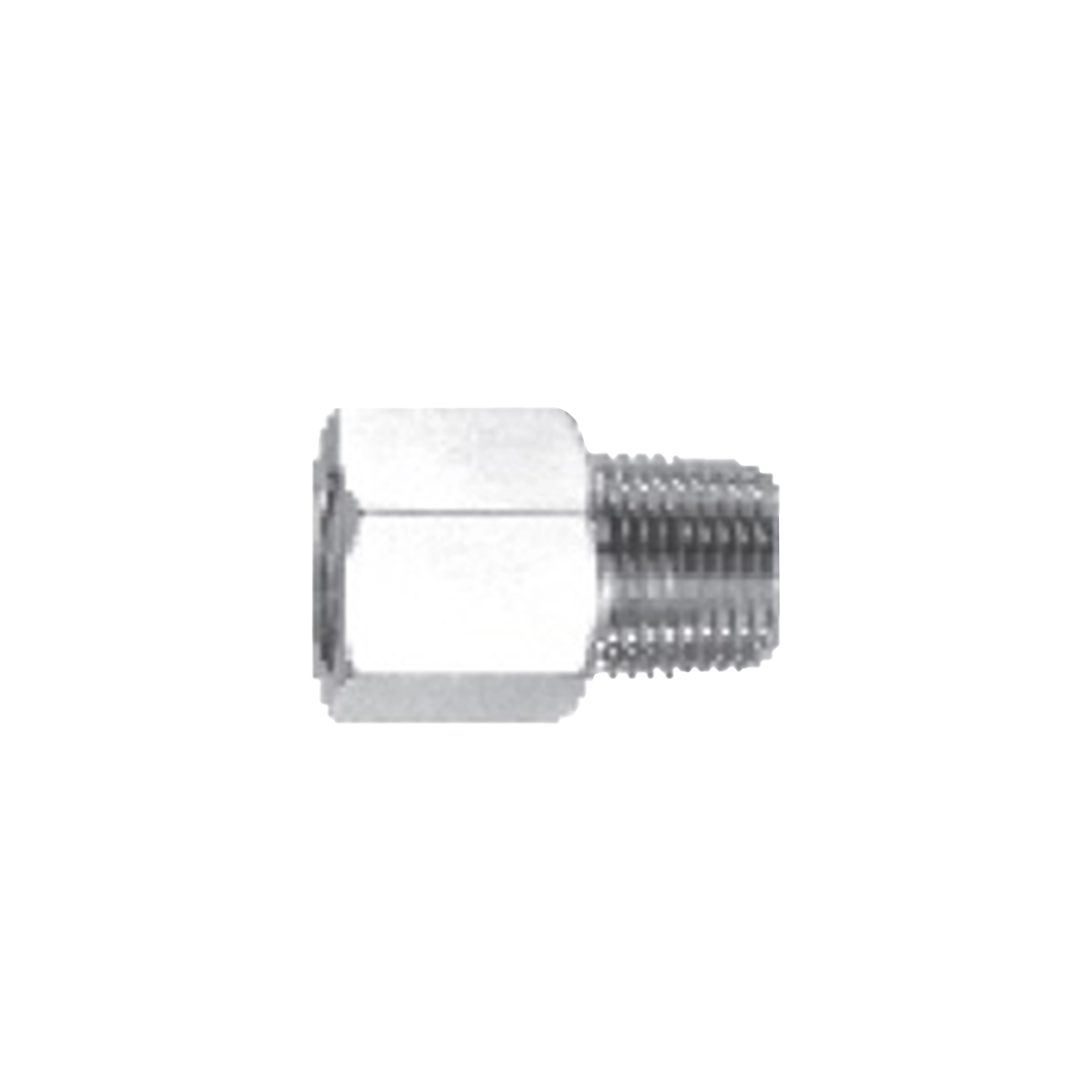

Male / Female Adapter
An adapter with a male thread at one end and a female thread at the other, changing the gender of a threaded connection. Used where two components present the same gender and cannot be joined directly.
- Product ID
- FIT-PF-01
- Available Part Nos.
- 11
- Category
- Pipe Fittings
PRODUCT IDFIT-PF-01
11PART NO. ROWS
01SIZE
02M/F
03T1NPT
04T2NPT
Pipe Fittings
Product overview
Male / Female Adapter is a threaded pipe fitting configuration for instrumentation and process connections.
Pipe fittings provide threaded connection forms for instrumentation and process assemblies.
Male / Female Adapter is available in 11 published Part No. configurations across 1 specification table. Published fields include SIZE, M/F, T1NPT, T2NPT.
Technical data
Specifications
11 published Part No. configurations
ADPT Series Data
11 Part Nos.
| Part No. | SIZE | M/F | T1NPT | T2NPT | F | L | Cart status |
|---|---|---|---|---|---|---|---|
| ADPT22 | 1/8"X1/8" | No value | 1/8" | 1/8" | 9/16" | 0.89 | |
| ADPT24 | 1/8"X1/4" | No value | 1/8" | 1/4" | 3/4" | 1.06 | |
| ADPT46 | 1/4"X3/8" | No value | 1/4" | 3/8" | 7/8" | 1.28 | |
| ADPT48 | 1/4"X1/2" | No value | 1/4" | 1/2" | 1-1/16" | 1.50 | |
| ADPT412 | 1/4"X3/4" | No value | 1/4" | 3/4" | 1-1/4" | 1.54 | |
| ADPT68 | 3/8"X1/2" | No value | 3/8" | 1/2" | 1-1/16" | 1.50 | |
| ADPT612 | 3/8"X3/4" | No value | 3/8" | 3/4" | 1-1/4" | 1.54 | |
| ADPT88 | 1/2"X1/2" | No value | 1/2" | 1/2" | 1-1/16" | 1.73 | |
| ADPT812 | 1/2"X3/4" | No value | 1/2" | 3/4" | 1-1/4" | 1.73 | |
| ADPT816 | 1/2"X1" | No value | 1/2" | 1" | 1-5/8" | 2.01 | |
| ADPT1216 | 3/4"X1" | No value | 3/4" | 1" | 1-5/8" | 2.01 |
