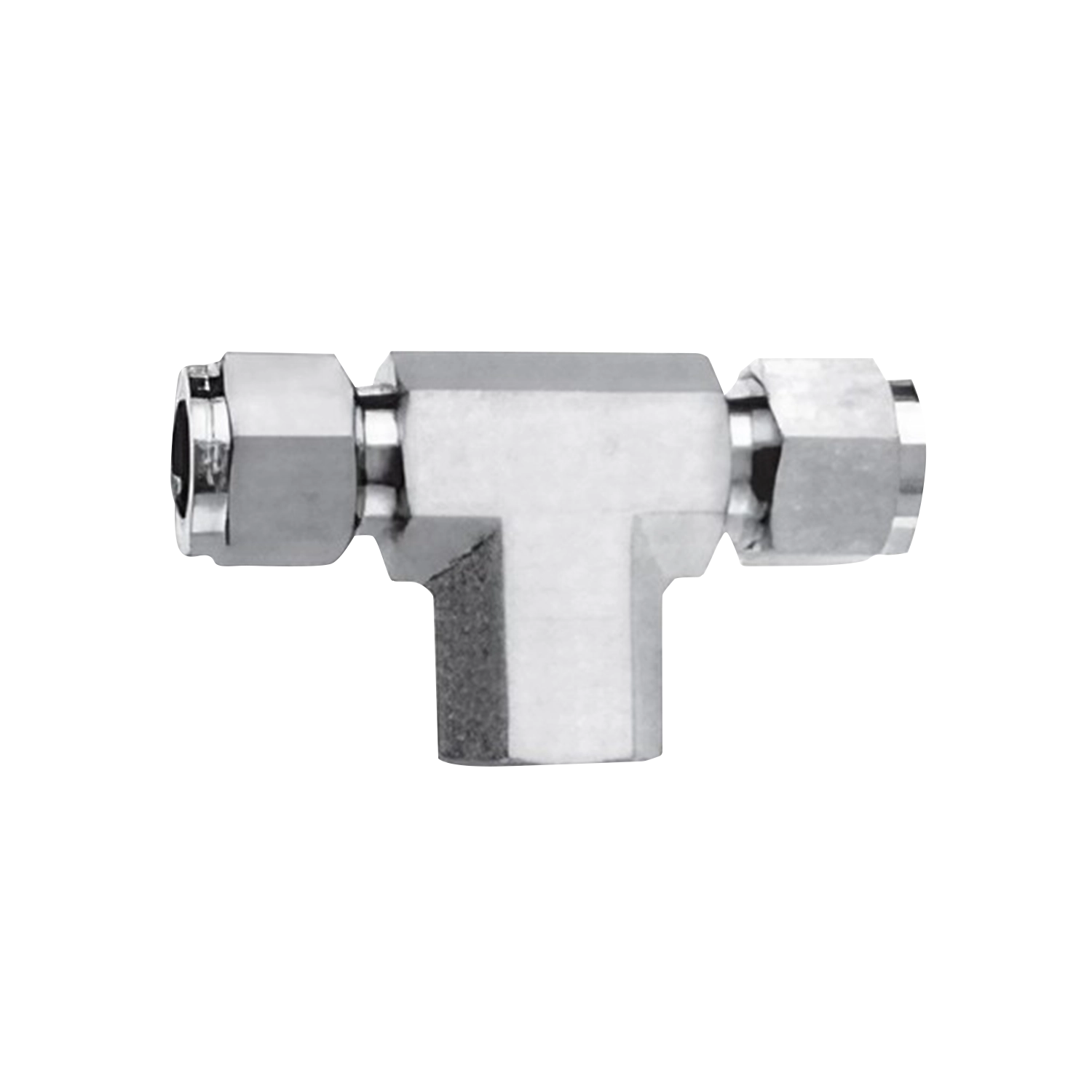

Female Branch Tee
A branch tee taking a female threaded connection off the side of a tube run. Chosen over the male branch tee by the gender of the instrument connection being served.
- Product ID
- FIT-TF-17
- Available Part Nos.
- 20
- Category
- Tube Fittings
PRODUCT IDFIT-TF-17
20PART NO. ROWS
01TUBEOD'T'
02NPT'P'
03A
04B
Tube Fittings
Product overview
Female Branch Tee is a tube fitting configuration for instrumentation tubing and threaded connections.
Tube fittings are defined by connection geometry, tube outside diameter, thread, and the dimensions published for each configuration.
Female Branch Tee is available in 20 published Part No. configurations across 2 specification tables. Published fields include TUBEOD'T', NPT'P', A, B.
Technical data
Specifications
20 published Part No. configurations
Imperial tubing - TFT
12 Part Nos.
| Part No. | TUBEOD'T' | NPT'P' | A | B | C | D | EMIN | FA/F | GA/F | Hy | HxBODY | Cart status |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TFT22 | 1/8" | 1/8" | 0.97 | 0.39 | 0.60 | 0.50 | 0.09 | 9/16" | 7/16" | 0.75 | 0.71 | |
| TFT42 | 1/4" | 1/8" | 1.06 | 0.39 | 0.70 | 0.60 | 0.19 | 9/16" | 9/16" | 0.75 | 0.77 | |
| TFT44 | 1/4" | 1/4" | 1.17 | 0.59 | 0.70 | 0.60 | 0.19 | 3/4" | 9/16" | 0.88 | 0.88 | |
| TFT54 | 5/16" | 1/4" | 1.20 | 0.59 | 0.73 | 0.64 | 0.25 | 3/4" | 5/8" | 0.88 | 0.91 | |
| TFT64 | 3/8" | 1/4" | 1.23 | 0.59 | 0.76 | 0.66 | 0.28 | 3/4" | 11/16" | 0.88 | 0.94 | |
| TFT66 | 3/8" | 3/8" | 1.31 | 0.59 | 0.76 | 0.66 | 0.28 | 7/8" | 11/16" | 0.88 | 1.02 | |
| TFT84 | 1/2" | 1/4" | 1.42 | 0.59 | 0.86 | 0.90 | 0.41 | 13/16" | 7/8" | 0.88 | 1.02 | |
| TFT86 | 1/2" | 3/8" | 1.42 | 0.59 | 0.86 | 0.90 | 0.41 | 7/8" | 7/8" | 0.88 | 1.02 | |
| TFT88 | 1/2" | 1/2" | 1.53 | 0.78 | 0.86 | 0.90 | 0.41 | 1-1/16" | 7/8" | 1.12 | 1.13 | |
| TFT108 | 5/8" | 1/2" | 1.57 | 0.78 | 0.86 | 0.96 | 0.50 | 1-1/16" | 1" | 1.12 | 1.17 | |
| TFT128 | 3/4" | 1/2" | 1.57 | 0.78 | 0.86 | 0.96 | 0.62 | 1-1/16" | 1-1/8" | 1.12 | 1.17 | |
| TFT1212 | 3/4" | 3/4" | 1.76 | 0.81 | 0.86 | 0.96 | 0.62 | 1-1/4" | 1-1/8" | 1.25 | 1.36 |
Metric Tubing - TFTm
8 Part Nos.
| Part No. | TUBEOD'T' | NPT'P' | A | B | C | D | EMIN | FA/F | GA/F | Hy | HxBODY | Cart status | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TFTm62 | 6 | 1/8" | 27.0 | 9.7 | No value | 17.7 | 15.3 | 4.8 | 14.0 | 14.0 | 19.0 | 19.6 | |
| TFTm64 | 6 | 1/4" | 29.8 | 14.2 | No value | 17.7 | 15.3 | 4.8 | 19.0 | 14.0 | 22.4 | 22.4 | |
| TFTm82 | 8 | 1/8" | 29.7 | 10.4 | No value | 18.6 | 16.2 | 6.3 | 15.0 | 16.0 | 22.4 | 19.6 | |
| TFTm84 | 8 | 1/4" | 30.6 | 14.2 | No value | 18.6 | 16.2 | 6.3 | 19.0 | 16.0 | 22.4 | 23.1 | |
| TFTm104 | 10 | 1/4" | 33.5 | 14.2 | No value | 19.5 | 17.2 | 7.1 | 19.0 | 19.0 | 22.4 | 25.9 | |
| TFTm124 | 12 | 1/4" | 36.0 | 14.2 | No value | 22.0 | 22.8 | 9.5 | 20.5 | 22.0 | 22.4 | 25.9 | |
| TFTm126 | 12 | 3/8" | 36.0 | 14.2 | No value | 22.0 | 22.8 | 9.5 | 22.0 | 22.0 | 22.4 | 25.9 | |
| TFTm168 | 16 | 1/2" | 39.5 | 19.0 | No value | 22.0 | 24.4 | 12.7 | 27.0 | 25.0 | 28.4 | 29.7 |
