Street Elbow

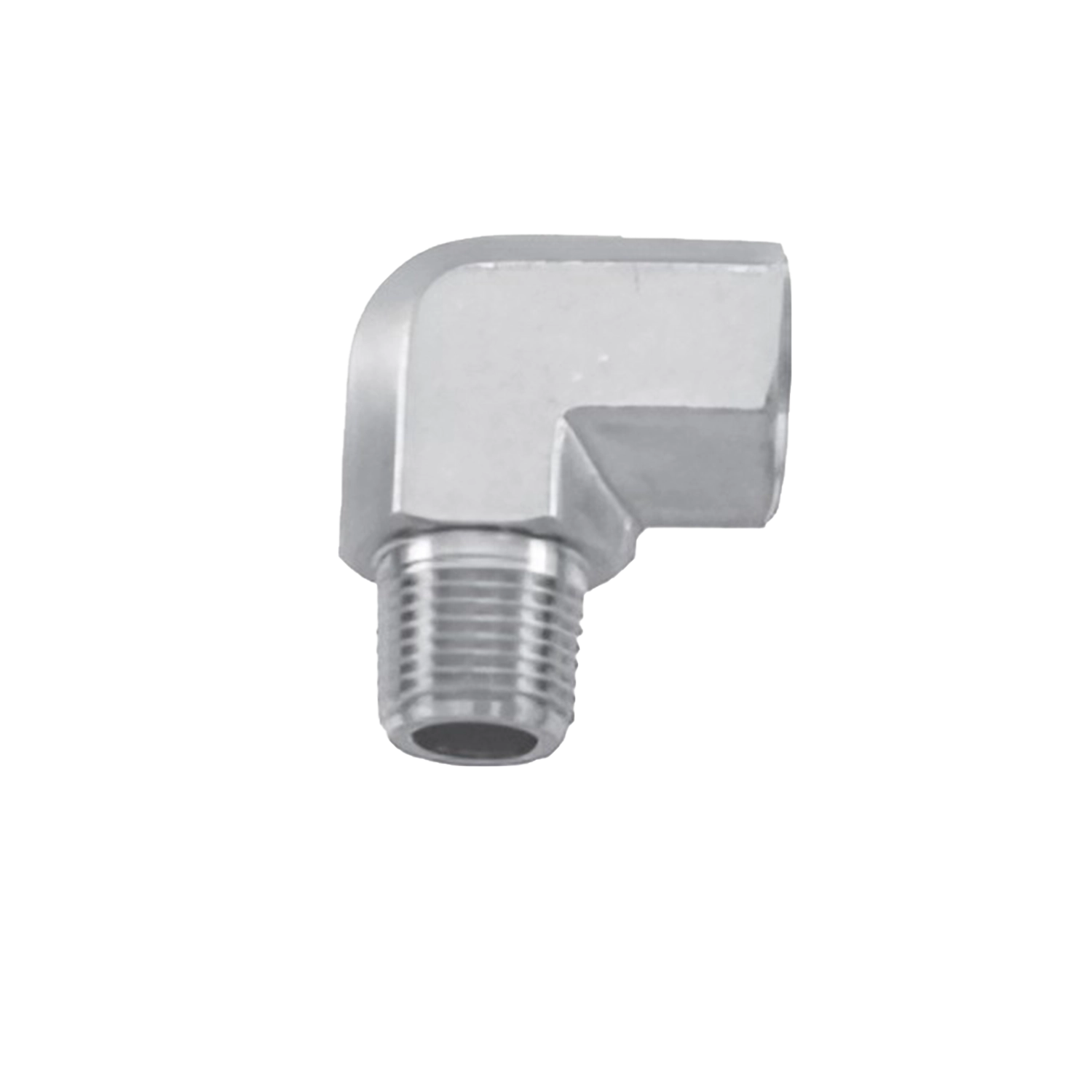

An elbow with a male thread on one port and a female on the other, turning a corner and changing gender in one fitting. Screws directly into a female port without an adapter.
- Product ID
- FIT-PF-11
- Available Part Nos.
- 6
- Category
- Pipe Fittings
PRODUCT IDFIT-PF-11
6PART NO. ROWS
01SIZE
02M/F
03FA/F
04T1
Pipe Fittings
Product overview
Street Elbow is a threaded pipe fitting configuration for instrumentation and process connections.
Pipe fittings provide threaded connection forms for instrumentation and process assemblies.
Street Elbow is available in 6 published Part No. configurations across 1 specification table. Published fields include SIZE, M/F, FA/F, T1.
Technical data
Specifications
6 published Part No. configurations
E.M/F Series Data
6 Part Nos.
| Part No. | SIZE | M/F | FA/F | T1 | T2 | L1 | L2 | Cart status |
|---|---|---|---|---|---|---|---|---|
| E.M/F22 | 1/8"X1/8" | No value | 9/16" | 1/8" | 1/8" | 0.67 | 0.87 | |
| E.M/F44 | 1/4"X1/4" | No value | 11/16" | 1/4" | 1/4" | 0.98 | 0.75 | |
| E.M/F66 | 3/8"X3/8" | No value | 7/8" | 3/8" | 3/8" | 1.02 | 1.02 | |
| E.M/F88 | 1/2"X1/2" | No value | 1-1/16" | 1/2" | 1/2" | 1.34 | 1.22 | |
| E.M/F1212 | 3/4"X3/4" | No value | 1-1/4" | 3/4" | 3/4" | 1.57 | 1.22 | |
| E.M/F1616 | 1"X1" | No value | 1-5/8" | 1" | 1" | 1.97 | 1.81 |
