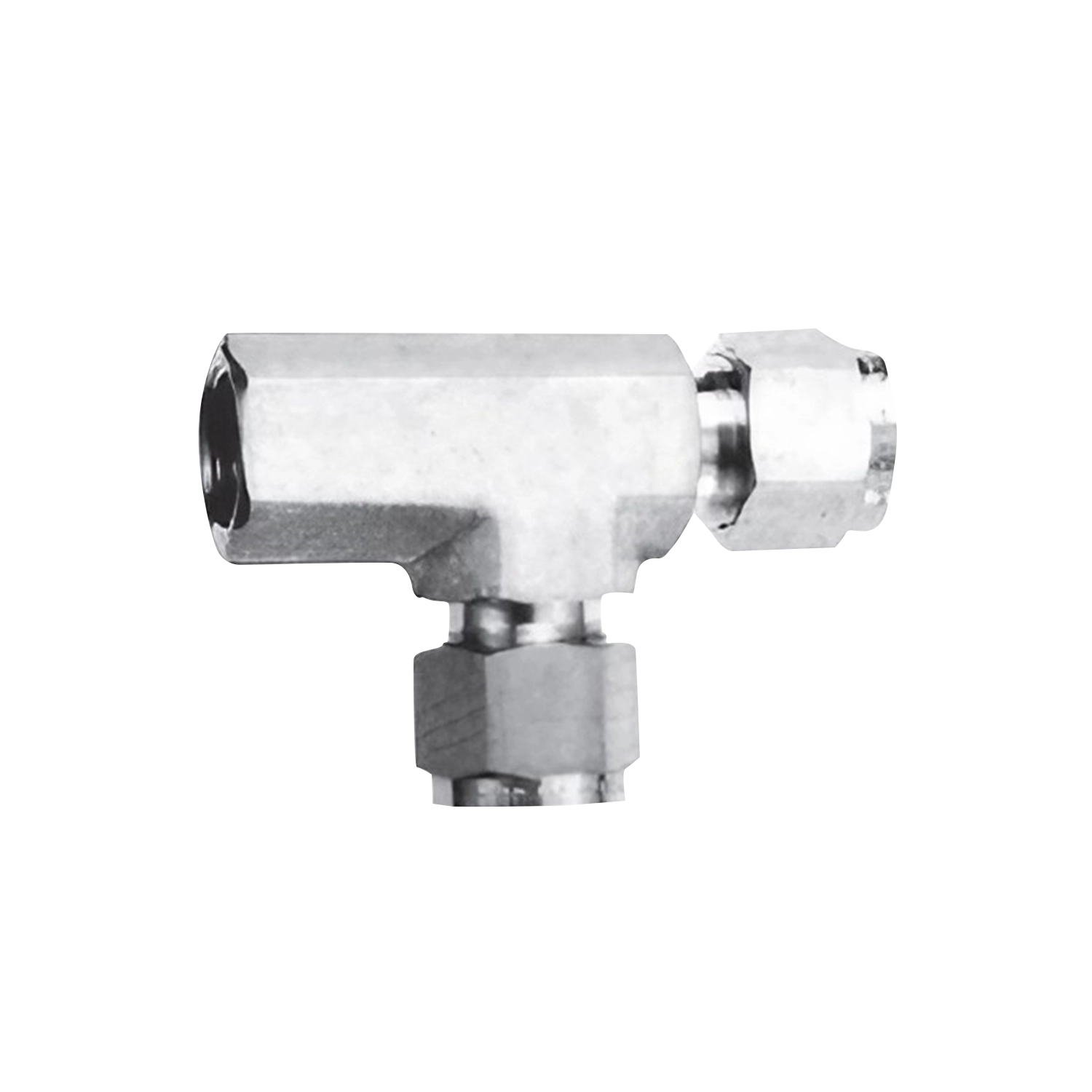

Female Run Tee
A run tee carrying the tube run straight through with a female threaded connection on the branch. The female counterpart to the male run tee.
- Product ID
- FIT-TF-18
- Available Part Nos.
- 19
- Category
- Tube Fittings
PRODUCT IDFIT-TF-18
19PART NO. ROWS
01TUBEOD'T'
02NPT'P'
03A
04B
Tube Fittings
Product overview
Female Run Tee is a tube fitting configuration for instrumentation tubing and threaded connections.
Tube fittings are defined by connection geometry, tube outside diameter, thread, and the dimensions published for each configuration.
Female Run Tee is available in 19 published Part No. configurations across 2 specification tables. Published fields include TUBEOD'T', NPT'P', A, B.
Technical data
Specifications
19 published Part No. configurations
Imperial tubing - TTF
12 Part Nos.
| Part No. | TUBEOD'T' | NPT'P' | A | B | C | D | EMIN | FA/F | GA/F | Hy | HxBODY | Cart status |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TTF22 | 1/8" | 1/8" | 0.97 | 0.39 | 0.60 | 0.50 | 0.09 | 9/16" | 7/16" | 0.75 | 0.71 | |
| TTF42 | 1/4" | 1/8" | 1.06 | 0.39 | 0.70 | 0.60 | 0.19 | 9/16" | 9/16" | 0.75 | 0.77 | |
| TTF44 | 1/4" | 1/4" | 1.17 | 0.59 | 0.70 | 0.60 | 0.19 | 3/4" | 9/16" | 0.88 | 0.88 | |
| TTF54 | 5/16" | 1/4" | 1.20 | 0.59 | 0.73 | 0.64 | 0.25 | 3/4" | 5/8" | 0.88 | 0.91 | |
| TTF64 | 3/8" | 1/4" | 1.23 | 0.59 | 0.76 | 0.66 | 0.28 | 3/4" | 11/16" | 0.88 | 0.94 | |
| TTF66 | 3/8" | 3/8" | 1.31 | 0.59 | 0.76 | 0.66 | 0.28 | 7/8" | 11/16" | 0.88 | 1.02 | |
| TTF84 | 1/2" | 1/4" | 1.42 | 0.59 | 0.86 | 0.90 | 0.41 | 13/16" | 7/8" | 0.88 | 1.02 | |
| TTF86 | 1/2" | 3/8" | 1.42 | 0.59 | 0.86 | 0.90 | 0.41 | 7/8" | 7/8" | 0.88 | 1.02 | |
| TTF88 | 1/2" | 1/2" | 1.53 | 0.78 | 0.86 | 0.90 | 0.41 | 1-1/16" | 7/8" | 1.12 | 1.13 | |
| TTF108 | 5/8" | 1/2" | 1.57 | 0.78 | 0.86 | 0.96 | 0.50 | 1-1/16" | 1" | 1.12 | 1.17 | |
| TTF1212 | 3/4" | 1/2" | 1.57 | 0.78 | 0.86 | 0.96 | 0.62 | 1-1/16" | 1-1/8" | 1.12 | 1.17 | |
| TTF1216 | 3/4" | 3/4" | 1.76 | 0.81 | 0.86 | 0.96 | 0.62 | 1-1/4" | 1-1/8" | 1.25 | 1.36 |
Metric Tubing - TTFm
7 Part Nos.
| Part No. | TUBEOD'T' | NPT'P' | A | B | C | D | EMIN | FA/F | GA/F | Hy | HxBODY | Cart status | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TTFm62 | 6 | 1/8" | 27.0 | 9.7 | No value | 17.7 | 15.3 | 4.8 | 14.0 | 14.0 | 19.0 | 19.6 | |
| TTFm64 | 6 | 1/4" | 29.8 | 14.2 | No value | 17.7 | 15.3 | 4.8 | 19.0 | 14.0 | 22.4 | 22.4 | |
| TTFm82 | 8 | 1/8" | 29.7 | 10.4 | No value | 18.6 | 16.2 | 6.3 | 15.0 | 16.0 | 22.4 | 19.6 | |
| TTFm84 | 8 | 1/4" | 30.6 | 14.2 | No value | 18.6 | 16.2 | 6.3 | 19.0 | 16.0 | 22.4 | 23.1 | |
| TTFm104 | 10 | 1/4" | 33.5 | 14.2 | No value | 19.5 | 17.2 | 7.1 | 19.0 | 19.0 | 22.4 | 25.9 | |
| TTFm124 | 12 | 1/4" | 36.0 | 14.2 | No value | 22.0 | 22.8 | 9.5 | 20.5 | 22.0 | 22.4 | 25.9 | |
| TTFm126 | 12 | 3/8" | 36.0 | 14.2 | No value | 22.0 | 22.8 | 9.5 | 22.0 | 22.0 | 22.4 | 25.9 |
