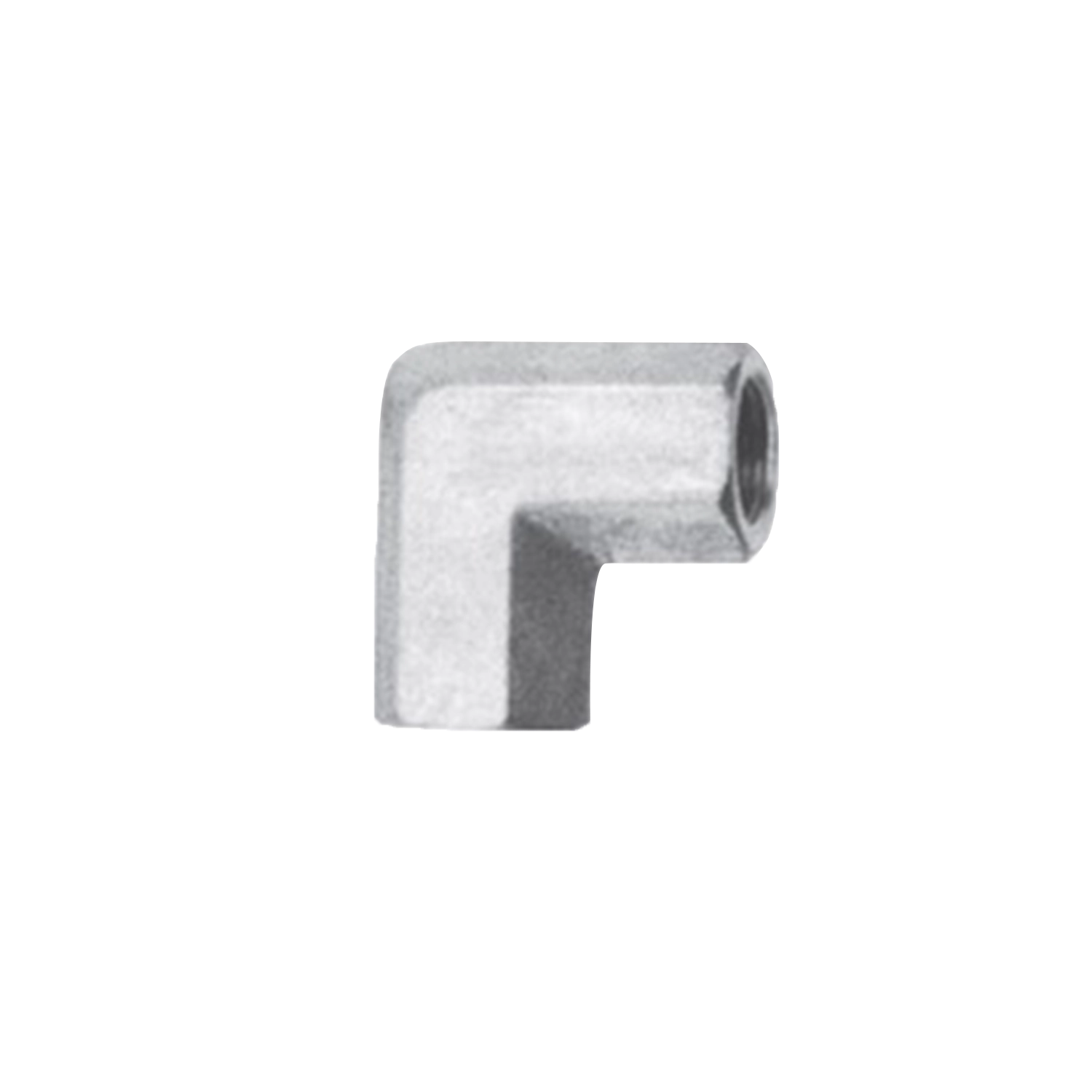

Female / Female Elbow
An elbow with female threads on both ports, turning threaded pipework through 90 degrees between two male connections. The most common threaded elbow arrangement.
- Product ID
- FIT-PF-10
- Available Part Nos.
- 10
- Category
- Pipe Fittings
PRODUCT IDFIT-PF-10
10PART NO. ROWS
01SIZE
02TNPT(F)
03F
04L
Pipe Fittings
Product overview
Female / Female Elbow is a threaded pipe fitting configuration for instrumentation and process connections.
Pipe fittings provide threaded connection forms for instrumentation and process assemblies.
Female / Female Elbow is available in 10 published Part No. configurations across 2 specification tables. Published fields include SIZE, TNPT(F), F, L.
Technical data
Specifications
10 published Part No. configurations
FEMALE ELBOW
5 Part Nos.
| Part No. | SIZE | TNPT(F) | F | L | Cart status |
|---|---|---|---|---|---|
| F.EL2 | 1/8" | 1/8" | 9/16" | 0.75 | |
| F.EL4 | 1/4" | 1/4" | 3/4" | 0.94 | |
| F.EL6 | 3/8" | 3/8" | 7/8" | 1.02 | |
| F.EL8 | 1/2" | 1/2" | 1-1/16" | 1.22 | |
| FEL12 | 3/4" | 3/4" | 1-1/4" | 1.14 |
MALE ELBOW
5 Part Nos.
| Part No. | SIZE | T1NPT | F | L | Cart status |
|---|---|---|---|---|---|
| E.M/M22 | 1/8" | 1/8" | 1/2" | 0.67 | |
| E.M/M44 | 1/4" | 1/4" | 9/16" | 0.98 | |
| E.M/M66 | 3/8" | 3/8" | 11/16" | 1.02 | |
| E.M/M88 | 1/2" | 1/2" | 7/8" | 1.34 | |
| E.M/M1212 | 3/4" | 3/4" | 1-1/16" | 1.57 |
