Fittings · Tube Fittings
OD Plug

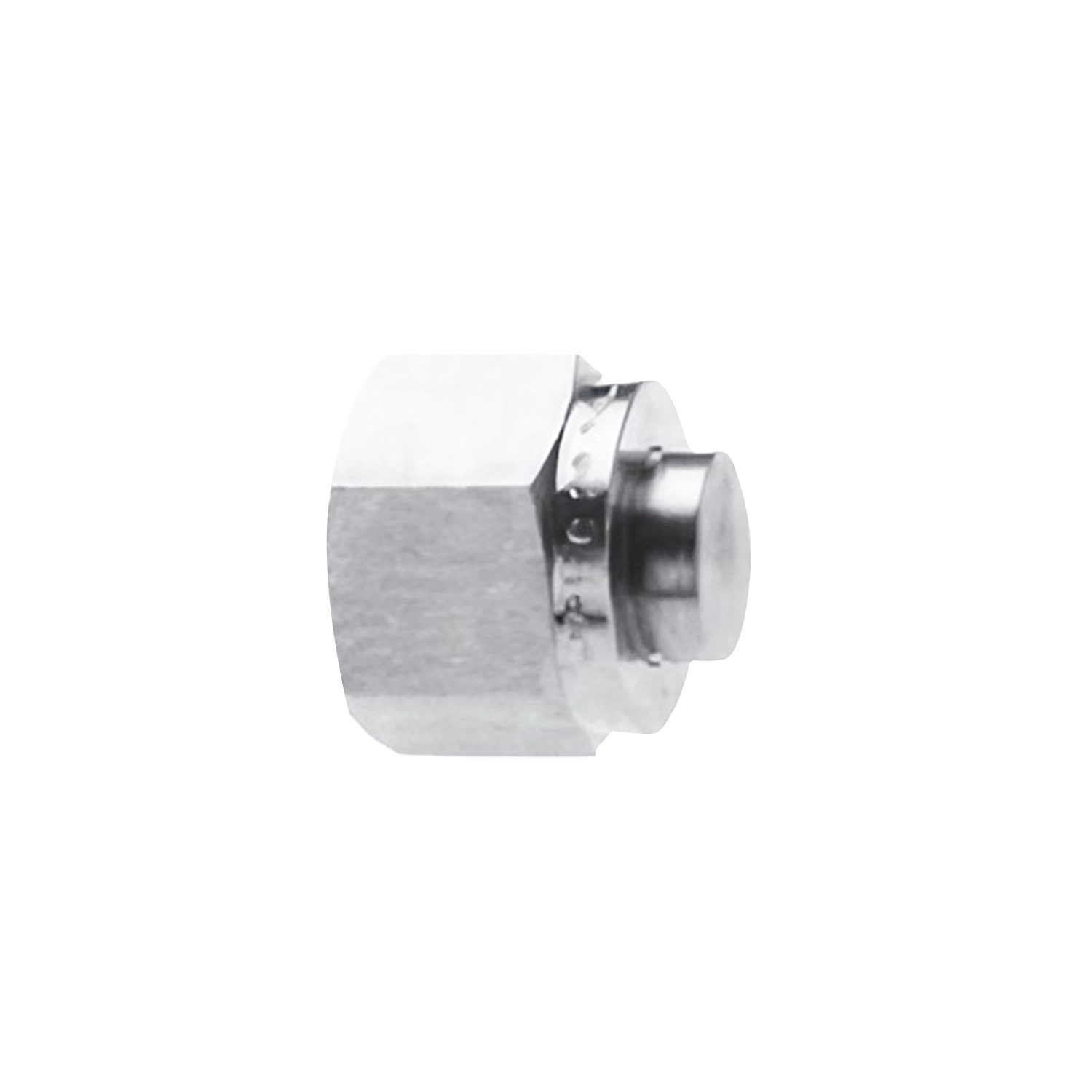

A plug closing an unused compression port from the inside. Where a cap covers a tube end, a plug blanks a port on a fitting, which is what decides between them.
- Product ID
- FIT-TF-21
- Available Part Nos.
- 18
- Category
- Tube Fittings
PRODUCT IDFIT-TF-21
18PART NO. ROWS
01'T'TUBEOD
02GA/F
Tube Fittings
Product overview
OD Plug is a tube fitting configuration for instrumentation tubing and threaded connections.
Tube fittings are defined by connection geometry, tube outside diameter, thread, and the dimensions published for each configuration.
OD Plug is available in 18 published Part No. configurations across 2 specification tables. Published fields include 'T'TUBEOD, GA/F.
Technical data
Specifications
18 published Part No. configurations
Inch size tubing - ODPLUG
10 Part Nos.
| Part No. | 'T'TUBEOD | GA/F | Cart status |
|---|---|---|---|
| ODPLUG2 | 1/8" | 7/16 | |
| ODPLUG3 | 3/16" | 1/2 | |
| ODPLUG4 | 1/4" | 9/16 | |
| ODPLUG5 | 5/16" | 5/8 | |
| ODPLUG6 | 3/8" | 11/16 | |
| ODPLUG8 | 1/2" | 7/8 | |
| ODPLUG10 | 5/8" | 1 | |
| ODPLUG12 | 3/4" | 1-1/8 | |
| ODPLUG14 | 7/8" | 1-1/4 | |
| ODPLUG16 | 1" | 1-1/2 |
Metric tubing - ODPLUGm
8 Part Nos.
| Part No. | 'T'TUBEOD | GA/F | Cart status |
|---|---|---|---|
| ODPLUGm3 | 3 | 11.0 | |
| ODPLUGm6 | 6 | 14.0 | |
| ODPLUGm8 | 8 | 16.0 | |
| ODPLUGm10 | 10 | 19.0 | |
| ODPLUGm12 | 12 | 22.0 | |
| ODPLUGm16 | 16 | 25.4 | |
| ODPLUGm20 | 20 | 32.0 | |
| ODPLUGm25 | 25 | 38.0 |
