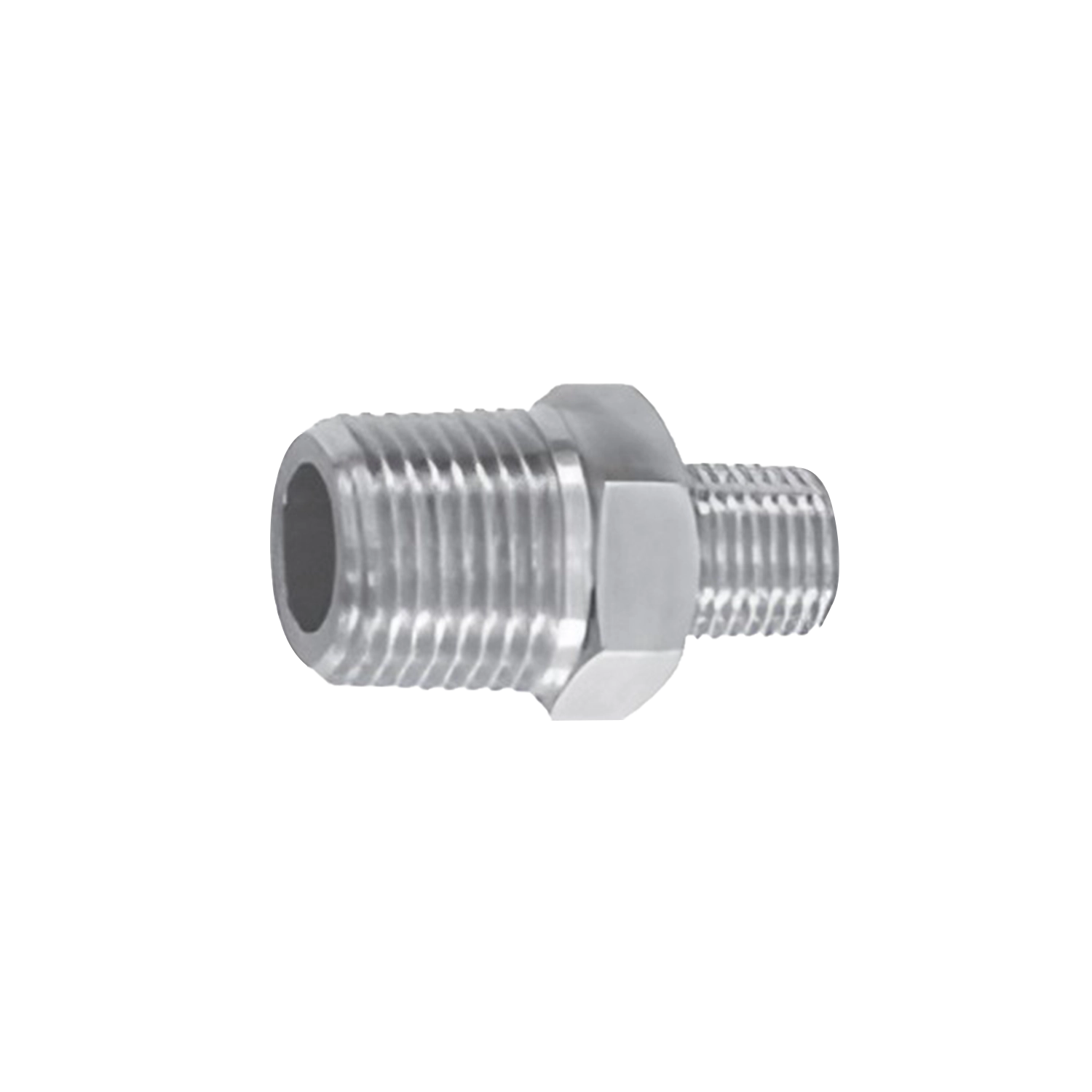

Reducing Hex Nipple
A hex nipple with a different thread size at each end, joining two female ports and changing size in the same fitting. Saves the extra joint a nipple plus bushing would introduce.
- Product ID
- FIT-PF-03
- Available Part Nos.
- 10
- Category
- Pipe Fittings
PRODUCT IDFIT-PF-03
10PART NO. ROWS
01SIZE
02T1NPT
03T2NPT
04FA/F
Pipe Fittings
Product overview
Reducing Hex Nipple is a threaded pipe fitting configuration for instrumentation and process connections.
Pipe fittings provide threaded connection forms for instrumentation and process assemblies.
Reducing Hex Nipple is available in 10 published Part No. configurations across 1 specification table. Published fields include SIZE, T1NPT, T2NPT, FA/F.
Technical data
Specifications
10 published Part No. configurations
RHNIPP Series Data
10 Part Nos.
| Part No. | SIZE | T1NPT | T2NPT | FA/F | L | Cart status |
|---|---|---|---|---|---|---|
| RHNIPP42 | 1/4"X1/8" | 1/4" | 1/8" | 9/16" | 1.16 | |
| RHNIPP62 | 3/8"X1/8" | 3/8" | 1/8" | 11/16" | 1.18 | |
| RHNIPP64 | 3/8"X1/4" | 3/8" | 1/4" | 11/16" | 1.36 | |
| RHNIPP84 | 1/2"X1/4" | 1/2" | 1/4" | 7/8" | 1.61 | |
| RHNIPP86 | 1/2"X3/8" | 1/2" | 3/8" | 7/8" | 1.61 | |
| RHNIPP124 | 3/4"X1/4" | 3/4" | 1/4" | 1-1/16" | 1.65 | |
| RHNIPP126 | 3/4"X3/8" | 3/4" | 3/8" | 1-1/16" | 1.65 | |
| RHNIPP128 | 3/4"X1/2" | 3/4" | 1/2" | 1-1/16" | 1.85 | |
| RHNIPP168 | 1"X1/2" | 1" | 1/2" | 1-3/8" | 2.09 | |
| RHNIPP1612 | 1"X3/4" | 1" | 3/4" | 1-3/8" | 2.09 |
