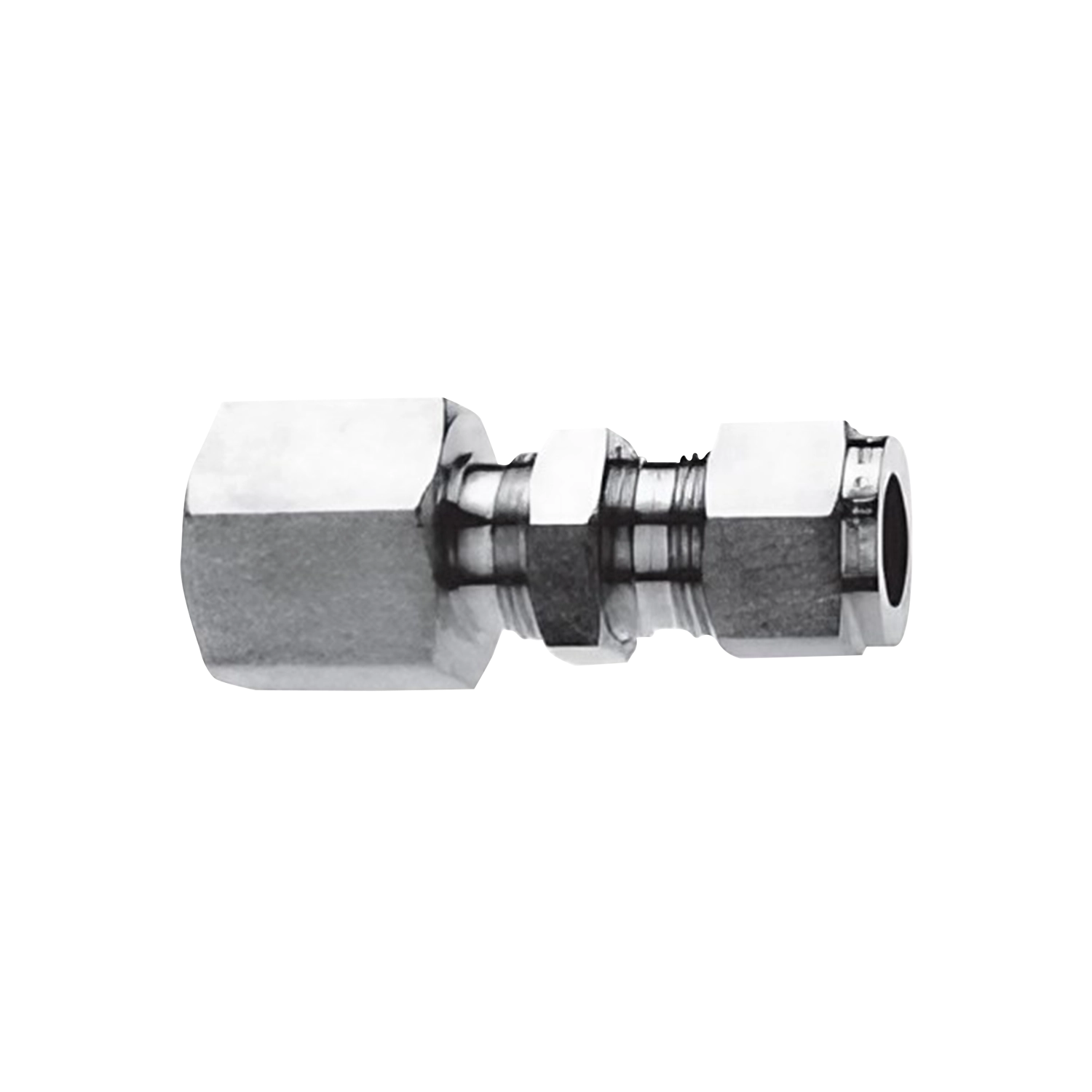

Female Bulkhead Connector
A female bulkhead connector taking a tube run through a wall and terminating in a female thread. The counterpart to the male bulkhead connector.
- Product ID
- FIT-TF-06
- Available Part Nos.
- 8
- Category
- Tube Fittings
PRODUCT IDFIT-TF-06
8PART NO. ROWS
01TUBEOD.
02NPTP'T
03ABODY
04H
Tube Fittings
Product overview
Female Bulkhead Connector is a tube fitting configuration for instrumentation tubing and threaded connections.
Tube fittings are defined by connection geometry, tube outside diameter, thread, and the dimensions published for each configuration.
Female Bulkhead Connector is available in 8 published Part No. configurations across 2 specification tables. Published fields include TUBEOD., NPTP'T, ABODY, H.
Technical data
Specifications
8 published Part No. configurations
Imperial tubing BFC
6 Part Nos.
| Part No. | TUBEOD. | NPTP'T | ABODY | H | C | D | Emin | FA/F | B | PanelHoleSize | MaxPanelThk | Cart status |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BFC22 | 1/8" | 1/8" | 1.76 | 1.50 | 0.97 | 0.50 | 0.09 | 9/16" | 0.41 | 21/64" | 0.50 | |
| BFC42 | 1/4" | 1/8" | 1.85 | 1.56 | 1.03 | 0.60 | 0.19 | 5/8" | 0.41 | 29/64" | 0.40 | |
| BFC44 | 1/4" | 1/4" | 2.04 | 1.75 | 1.03 | 0.60 | 0.19 | 3/4" | 0.59 | 29/64" | 0.40 | |
| BFC64 | 3/8" | 1/4" | 2.17 | 1.88 | 1.16 | 0.66 | 0.28 | 3/4" | 0.59 | 37/64" | 0.44 | |
| BFC86 | 1/2" | 3/8" | 2.43 | 2.03 | 1.25 | 0.90 | 0.38 | 15/16" | 0.59 | 49/64" | 0.50 | |
| BFC88 | 1/2" | 1/2" | 2.62 | 2.22 | 1.25 | 0.90 | 0.41 | 1-1/16" | 0.78 | 49/64" | 0.50 |
Metric tubing BFCm
2 Part Nos.
| Part No. | TUBEOD. | NPTP'T | ABODY | H | C | D | Emin | FA/F | B | PanelHoleSize | MaxPanelThk | Cart status |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BFCm64 | 6 | 1/4" | 51.8 | 44.4 | 26.2 | 15.3 | 4.8 | 19.0 | 15.0 | 11.5 | 10.2 | |
| BFCm128 | 12 | 1/2" | 66.5 | 56.4 | 31.8 | 22.8 | 9.5 | 27.0 | 19.8 | 19.5 | 12.7 |
