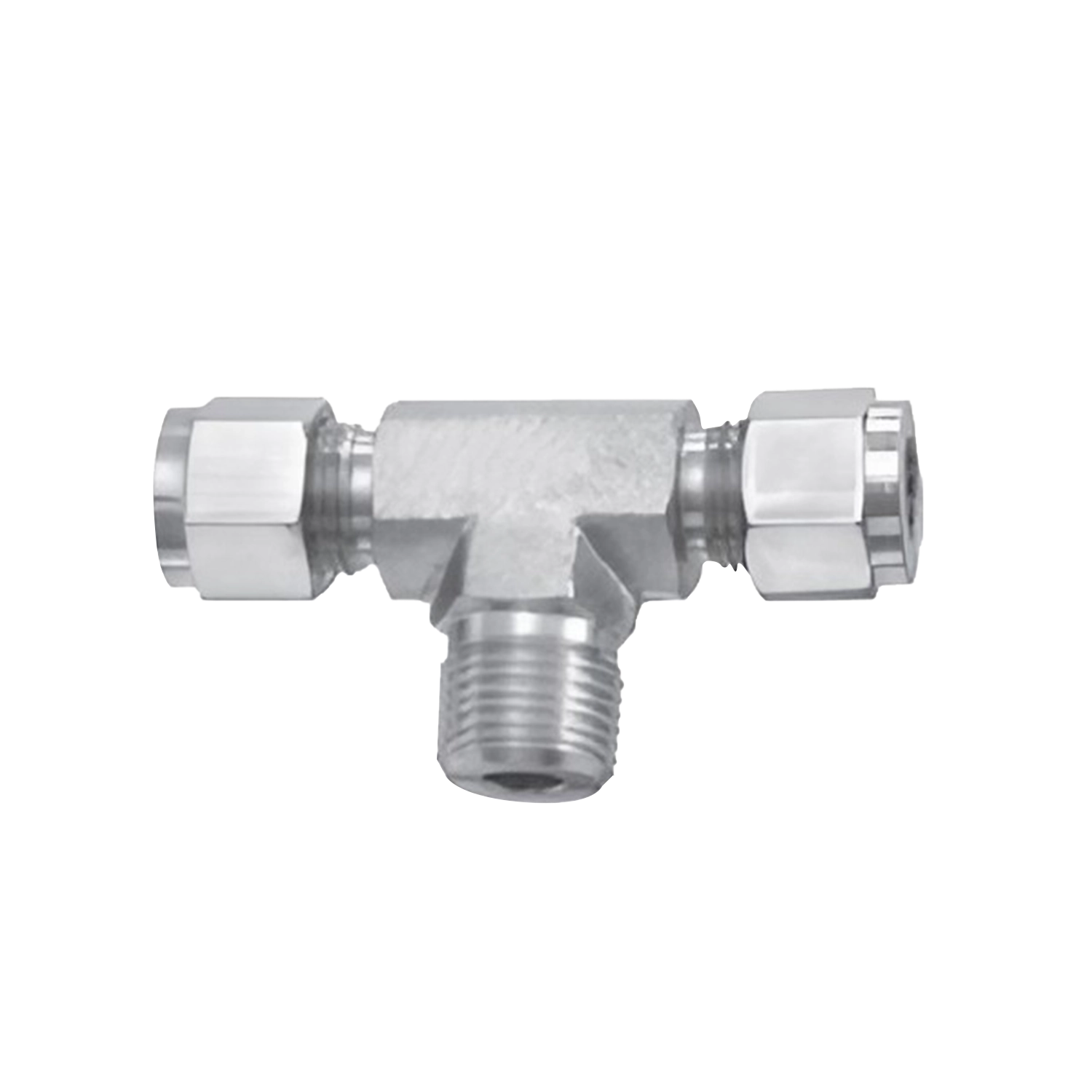

Male Branch Tee
A branch tee taking a male threaded connection off the side of a tube run. Used to add an instrument or gauge to an existing run at 90 degrees to the flow.
- Product ID
- FIT-TF-12
- Available Part Nos.
- 22
- Category
- Tube Fittings
PRODUCT IDFIT-TF-12
22PART NO. ROWS
01TUBEOD'T'
02NPT'P'
03A
04B
Tube Fittings
Product overview
Male Branch Tee is a tube fitting configuration for instrumentation tubing and threaded connections.
Tube fittings are defined by connection geometry, tube outside diameter, thread, and the dimensions published for each configuration.
Male Branch Tee is available in 22 published Part No. configurations across 2 specification tables. Published fields include TUBEOD'T', NPT'P', A, B.
Technical data
Specifications
22 published Part No. configurations
Imperial tubing - TMT
11 Part Nos.
| Part No. | TUBEOD'T' | NPT'P' | A | B | C | D | EMIN | FA/F | GA/F | Hy | HxBODY | Cart status |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TMT22 | 1/8" | 1/8" | 0.93 | 0.38 | 0.60 | 0.50 | 0.09 | 1/2" | 7/16" | 0.70 | 0.67 | |
| TMT24 | 1/8" | 1/4" | 0.97 | 0.56 | 0.60 | 0.50 | 0.09 | 9/16" | 7/16" | 0.92 | 0.71 | |
| TMT42 | 1/4" | 1/8" | 1.06 | 0.38 | 0.70 | 0.60 | 0.19 | 1/2" | 9/16" | 0.74 | 0.77 | |
| TMT44 | 1/4" | 1/4" | 1.06 | 0.56 | 0.70 | 0.60 | 0.19 | 9/16" | 9/16" | 0.92 | 0.77 | |
| TMT54 | 5/16" | 1/4" | 1.17 | 0.56 | 0.73 | 0.64 | 0.25 | 9/16" | 5/8" | 0.92 | 0.88 | |
| TMT64 | 3/8" | 1/4" | 1.20 | 0.56 | 0.76 | 0.66 | 0.28 | 9/16" | 11/16" | 1.00 | 0.91 | |
| TMT66 | 3/8" | 3/8" | 1.31 | 0.56 | 0.76 | 0.66 | 0.28 | 11/16" | 11/16" | 1.11 | 1.02 | |
| TMT86 | 1/2" | 3/8" | 1.42 | 0.56 | 0.86 | 0.90 | 0.38 | 13/16" | 7/8" | 1.11 | 1.02 | |
| TMT88 | 1/2" | 1/2" | 1.42 | 0.75 | 0.86 | 0.90 | 0.41 | 7/8" | 7/8" | 1.30 | 1.02 | |
| TMT108 | 5/8" | 1/2" | 1.53 | 0.75 | 0.86 | 0.96 | 0.47 | 15/16" | 1" | 1.41 | 1.13 | |
| TMT1212 | 3/4" | 3/4" | 1.57 | 0.75 | 0.86 | 0.96 | 0.62 | 1-1/16" | 1-1/8" | 1.45 | 1.17 |
Metric Tubing - TMTm
11 Part Nos.
| Part No. | TUBEOD'T' | NPT'P' | A | B | C | D | EMIN | FA/F | GA/F | Hy | HxBODY | Cart status | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TMTm32 | 3 | [1/8"] | 23.6 | 9.7 | No value | 15.3 | 12.9 | 2.4 | 12.7 | 11.0 | 17.8 | 17.0 | |
| TMTm34 | 3 | [1/4"] | 24.6 | 14.2 | No value | 15.3 | 12.9 | 2.4 | 14.0 | 11.0 | 23.4 | 18.0 | |
| TMTm62 | 6 | [1/8"] | 26.9 | No value | 9.7 | 17.7 | 15.3 | 4.8 | 12.7 | 14.0 | 18.8 | 19.6 | |
| TMTm64 | 6 | [1/4"] | 26.9 | 14.2 | No value | 17.7 | 15.3 | 4.8 | 14.0 | 14.0 | 23.4 | 19.6 | |
| TMTm82 | 8 | [1/8"] | 29.8 | No value | 9.7 | 18.6 | 16.2 | 4.8 | 14.0 | 16.0 | 19.0 | 22.4 | |
| TMTm84 | 8 | [1/4"] | 29.8 | 14.2 | No value | 18.6 | 16.2 | 6.3 | 14.0 | 16.0 | 23.4 | 22.4 | |
| TMTm104 | 10 | [1/4"] | 33.5 | 14.2 | No value | 19.5 | 17.2 | 7.1 | 17.0 | 19.0 | 28.2 | 25.9 | |
| TMTm106 | 10 | [3/8"] | 33.5 | 14.2 | No value | 19.5 | 17.2 | 7.9 | 17.0 | 19.0 | 28.2 | 25.9 | |
| TMTm126 | 12 | [3/8"] | 36.0 | 14.2 | No value | 22.0 | 22.8 | 9.5 | 20.5 | 22.0 | 28.2 | 25.9 | |
| TMTm128 | 12 | [1/2"] | 36.0 | 19.0 | No value | 22.0 | 22.8 | 9.5 | 22.0 | 22.0 | 33.0 | 25.9 | |
| TMTm168 | 16 | [1/2"] | 38.8 | 19.0 | No value | 22.0 | 24.4 | 12.7 | 24.0 | 25.0 | 35.8 | 28.7 |
