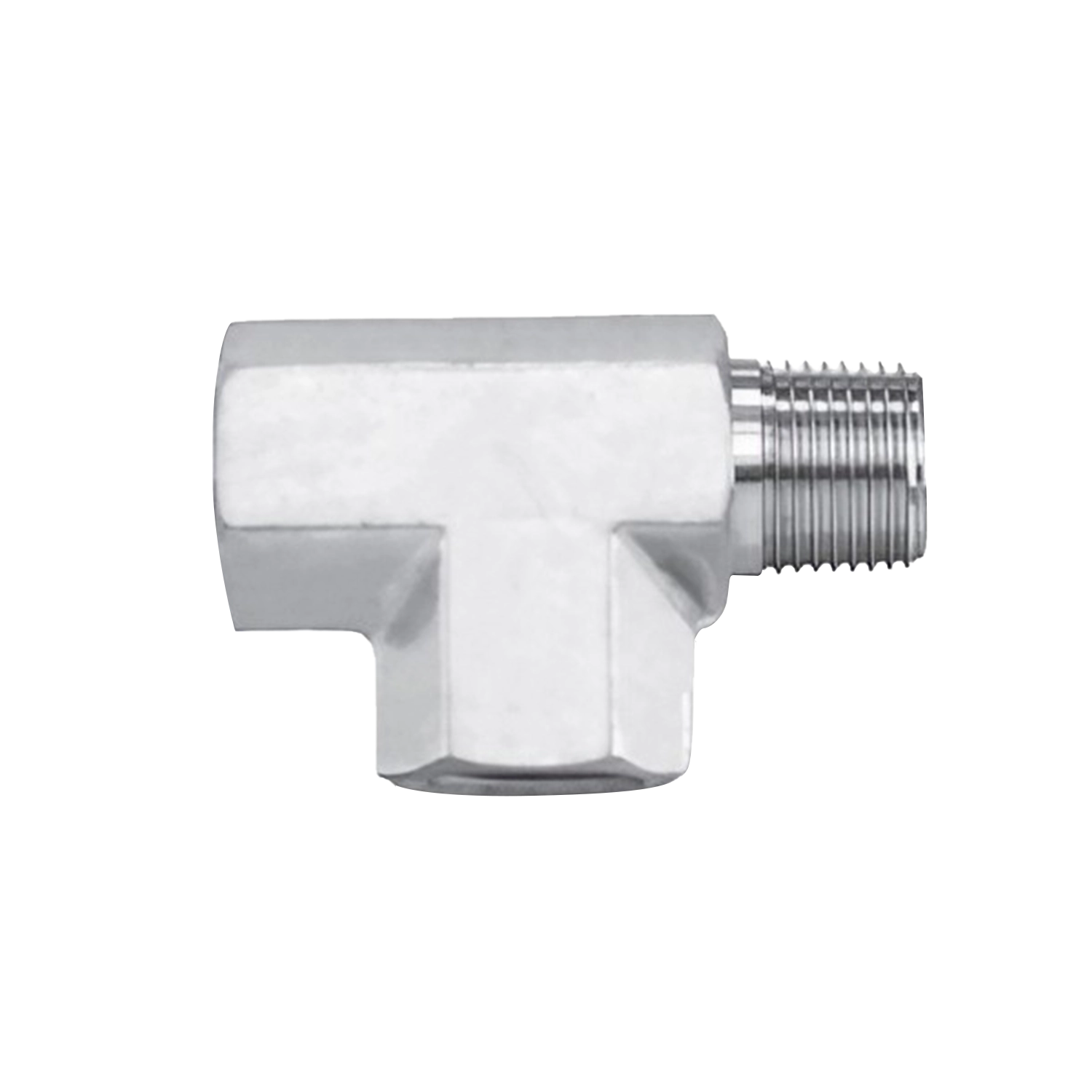

Street Tee
A tee with a male thread on one port and female on the others, so it screws directly into a female connection while still branching the run. Saves the adapter a fully female tee would need.
- Product ID
- FIT-PF-15
- Available Part Nos.
- 4
- Category
- Pipe Fittings
PRODUCT IDFIT-PF-15
4PART NO. ROWS
01SIZE
02M/F
03F
04T1
Pipe Fittings
Product overview
Street Tee is a threaded pipe fitting configuration for instrumentation and process connections.
Pipe fittings provide threaded connection forms for instrumentation and process assemblies.
Street Tee is available in 4 published Part No. configurations across 1 specification table. Published fields include SIZE, M/F, F, T1.
Technical data
Specifications
4 published Part No. configurations
TTF.M/F Series Data
4 Part Nos.
| Part No. | SIZE | M/F | F | T1 | T2 | L1 | L2 | Cart status |
|---|---|---|---|---|---|---|---|---|
| TTF.M/F22 | 1/8"X1/8" | No value | 9/16" | 1/8" | 1/8" | 0.83 | 0.75 | |
| TTF.M/F44 | 1/4"X1/4" | No value | 3/4" | 1/4" | 1/4" | 1.16 | 0.89 | |
| TTF.M/F66 | 3/8"X3/8" | No value | 7/8" | 3/8" | 3/8" | 1.34 | 1.02 | |
| TTF.M/F88 | 1/2"X1/2" | No value | 1-1/16" | 1/2" | 1/2" | 1.50 | 1.18 |
