Overview
Parflow Syphons and Snubbers are specialized instrumentation accessories designed to protect pressure gauges, transmitters, switches, and other pressure measuring devices from two of the most common causes of instrument failure, excessive process temperature and pressure pulsation. By isolating instruments from damaging operating conditions, they improve measurement stability, extend equipment life, and enhance the overall reliability of industrial instrumentation systems.
Although pressure instruments are designed to measure process pressure accurately, they are often exposed to conditions beyond their ideal operating limits. High-temperature steam can damage sensing elements, while rapid pressure fluctuations generated by pumps, compressors, reciprocating equipment, and hydraulic systems can lead to excessive vibration, inaccurate readings, and premature instrument wear.
Parflow Syphons and Snubbers are engineered to address these challenges, providing a simple and highly effective means of protecting valuable instrumentation while ensuring dependable long-term operation. Protecting Critical Instrumentation Instrumentation represents one of the most important components of any process plant. Accurate pressure measurement supports process control, equipment protection, safety systems, and operational efficiency.
However, repeated exposure to high temperatures or severe pressure pulsations can significantly reduce instrument life and compromise measurement accuracy. Parflow Syphons reduce process temperature before it reaches the instrument, while Parflow Snubbers dampen sudden pressure spikes and pulsations. Together, they create a stable operating environment that allows pressure instruments to perform consistently under demanding industrial conditions.
Working principle

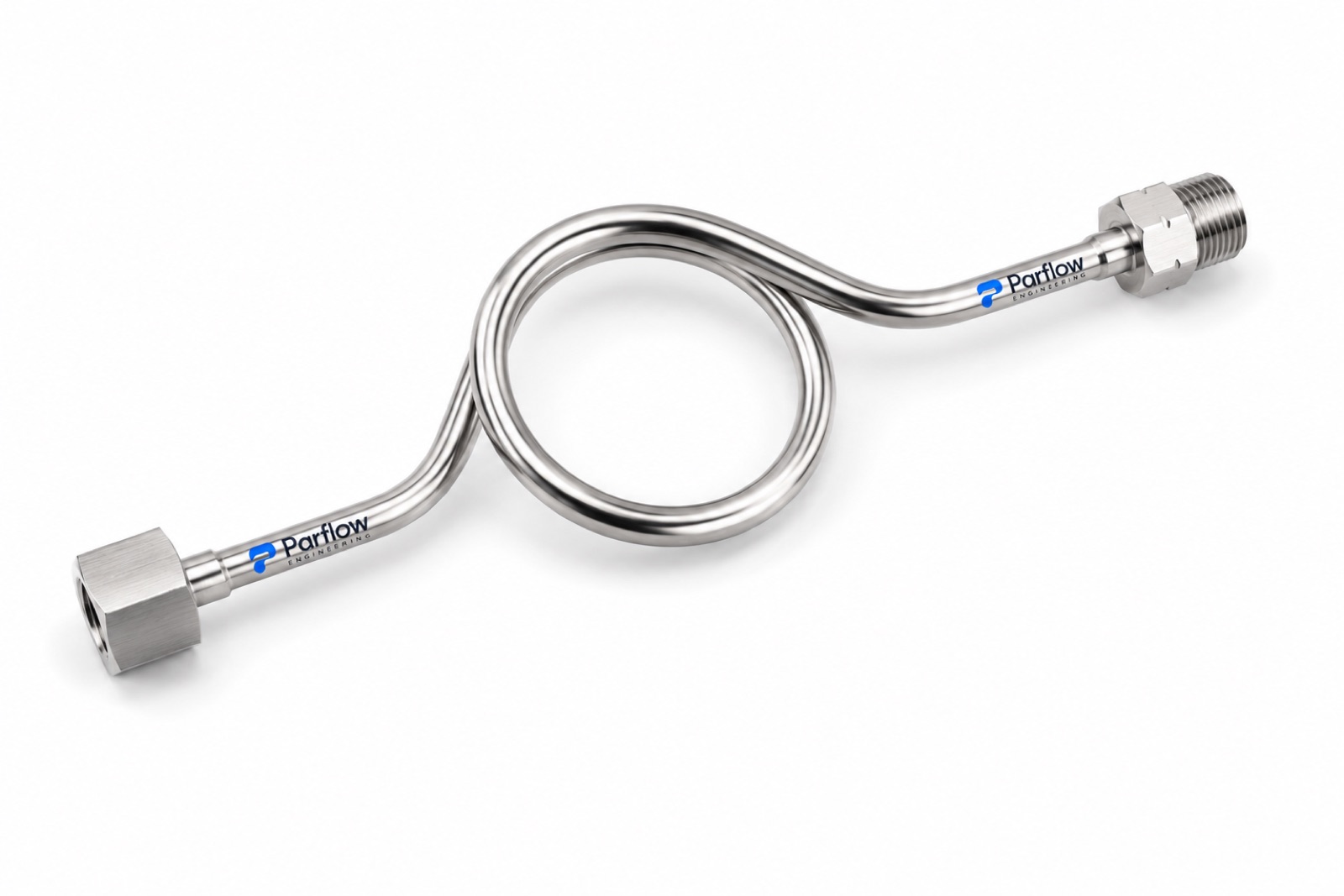

Syphon: installed between process and instrument in steam service, its coiled or looped form retains condensate as a water seal. Steam condenses in the coil; the trapped condensate absorbs heat, so the instrument sees pressure without the temperature.
Snubber: mounted directly ahead of the instrument, a precision restriction or porous element limits how fast pressure fluctuations reach the sensing element. Pulsations from pumps, compressors, and reciprocating equipment are damped while average pressure transmits accurately.
At a glance
Two devices on this page, two different failure modes. Pick by what is killing the instrument, heat or pulsation, not by what is easier to source.
Syphon: protects against temperature
Condensate collects in the loop and holds a water seal between steam and the instrument, so the gauge sees pressure but not process heat.

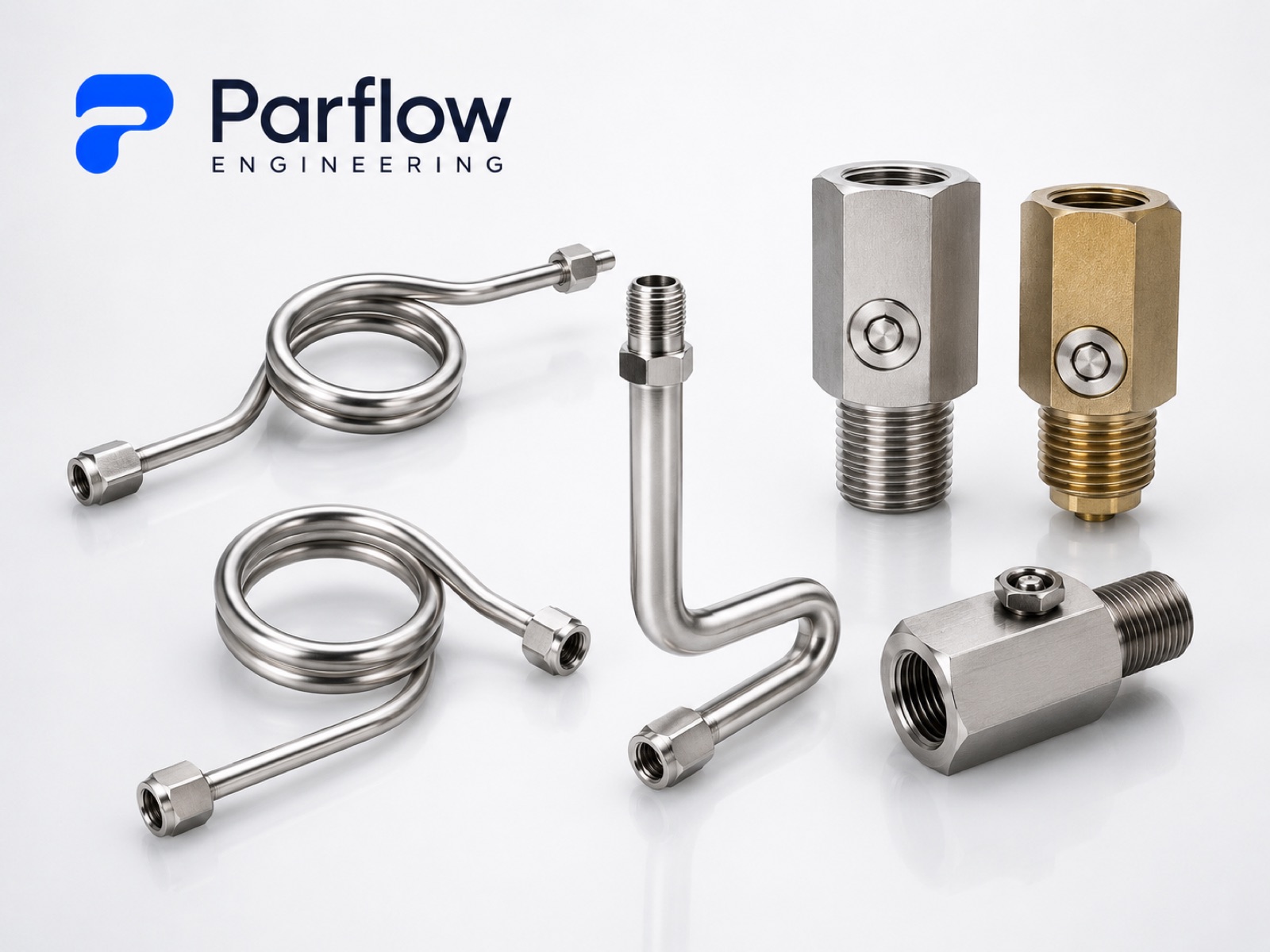

Designs: Coil, Pigtail, U-Type
Use on: steam lines, boilers, hot process piping
Snubber: protects against pulsation
An engineered flow restriction damps surges, hydraulic shock and pointer flutter while still transmitting true line pressure.
Designs: Porous Disc, Needle Type, Adjustable Restriction
Use on: pump discharge, compressors, hydraulic systems
Steam service with a pulsating load is the one case that needs both: syphon at the process side for the thermal break, snubber between syphon and instrument for the damping. Common to both: up to 6,000 psi (413 bar), sizes 1/4", 3/8", 1/2", SS316/SS316L, carbon steel or brass, mounted in-line between the process connection and the instrument.
Key features
- Thermal protection for steam-service instruments (syphon)
- Pulsation and surge damping (snubber)
- Reduces gauge pointer vibration
- Extends instrument service life
- Steam, gas, and liquid service
- Compact, easy retrofit installation
Technical advantages
Prevents thermal damage to pressure instruments. Reduces wear caused by hydraulic shock and pulsation. Improves measurement accuracy. Minimizes maintenance and replacement costs. Protects sensitive instrumentation in severe operating environments. Enhances long-term reliability of process measurement systems.
Applications
- Steam pressure measurement
- Boiler instrumentation
- Pump discharge lines
- Compressor systems
- Hydraulic systems
- Process piping
- Refineries & power stations
- Industrial process instrumentation
Configurations
Syphons in coiled and looped patterns for steam service; snubbers with engineered restriction or porous damping elements, both in standard instrument connection sizes.
Industries served
- Oil & Gas
- Petrochemical
- Power Generation
- Chemical Processing
- Refining
- Water & Wastewater
- Marine
- Pharmaceutical
- Food Processing
- Industrial Equipment
Why choose Parflow
Pressure instruments perform best when protected from conditions that accelerate wear and reduce accuracy. Parflow Syphons and Snubbers provide a simple yet highly effective solution for extending instrument life while improving the reliability of pressure measurement systems. Designed for demanding industrial environments and manufactured with precision engineering, they help safeguard valuable instrumentation against thermal stress and pressure pulsation, ensuring consistent performance throughout the life of the plant.
Parflow is committed to delivering high-performance instrumentation and fluid system components engineered for reliability, safety, and precision across demanding industrial applications. From tube fittings and process valves to instrumentation accessories and pressure management components, every product is designed to meet the performance expectations of modern process industries.
FAQ
Syphon vs snubber, which do I need?
A syphon protects against temperature: its condensate seal keeps steam heat away from the gauge. A snubber protects against pulsation: it damps pressure spikes and flutter. Severe steam service with pulsating loads can use both in series.
Do they distort the pressure reading?
No, both transmit average system pressure accurately. The syphon's liquid column and the snubber's restriction only remove what damages the instrument: heat and rapid fluctuation.
